Intermediate balustrade post 40x40x1060/1100mm 4 glass clamps AISI 304
Description

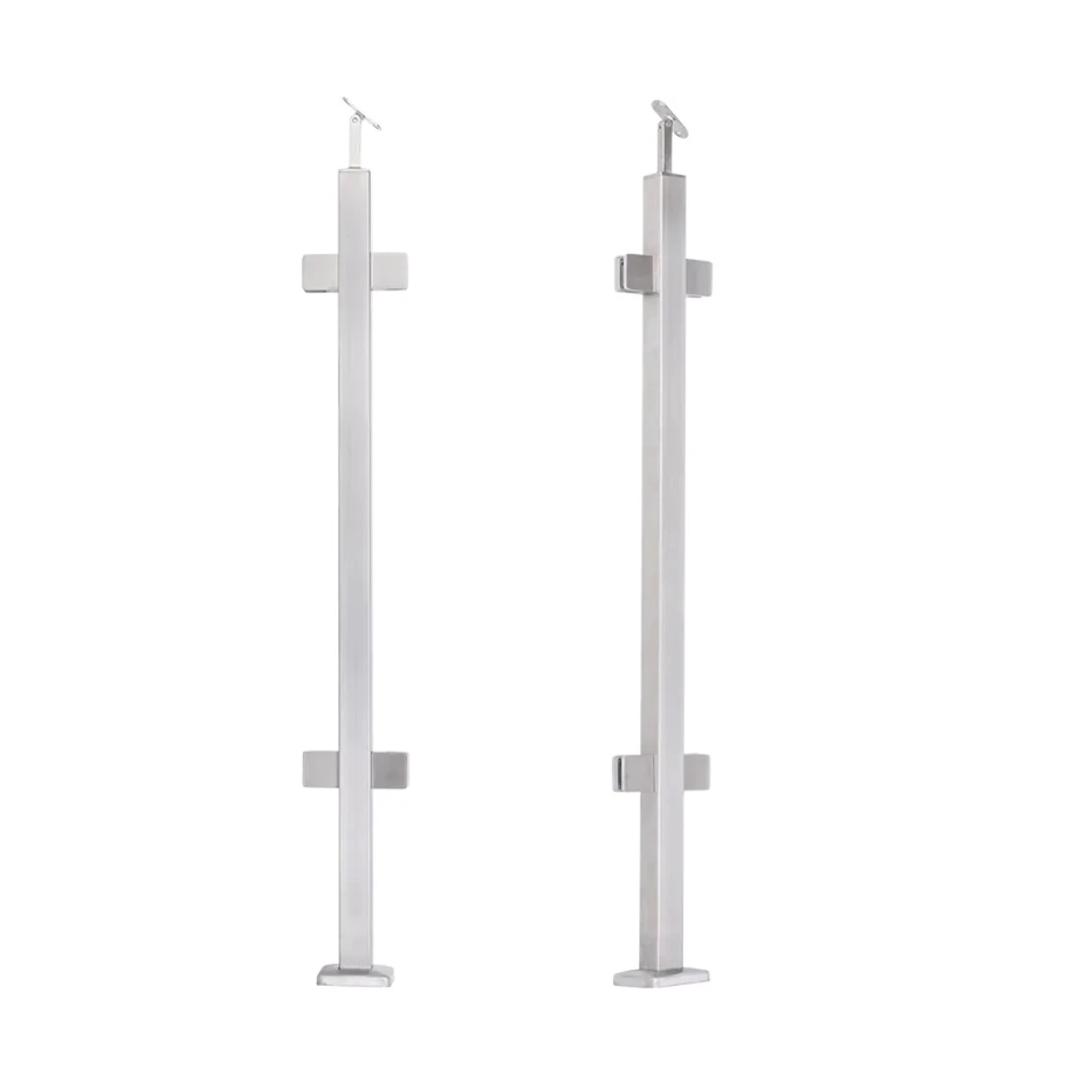

Intermediate balustrade post stainless steel 40×40×1060 mm – 4 glass clamps
Intermediate balustrade post made from AISI 304 stainless steel with 40×40 mm profile and 1060 mm height — complete set with four glass clamps, handrail bracket, cover plate and rubber seals. The satin finish provides an elegant, modern appearance that perfectly complements both balcony and staircase balustrades. Solid construction and precise manufacture enable quick, professional installation.
Universal application
The post is designed for floor mounting as an intermediate element of the balustrade. The total height of the construction including the handrail is 1100 mm, which meets standard requirements for balustrades. The handrail support is not permanently bonded — installation is carried out using anaerobic adhesive for stainless steel, providing complete freedom of adjustment and the possibility of shortening the post in case of floor unevenness. Clamps mounted at two levels (spacing 610 mm) enable secure holding of toughened or laminated glass panels.
Set contents
- Intermediate post with 40×40×2 mm profile, height 1060 mm
- Glass clamps — 4 pieces (dimension 45×45 mm)
- Post connector (handrail bracket)
- Base cover plate
- Rubber seals for 8 mm glass (included)

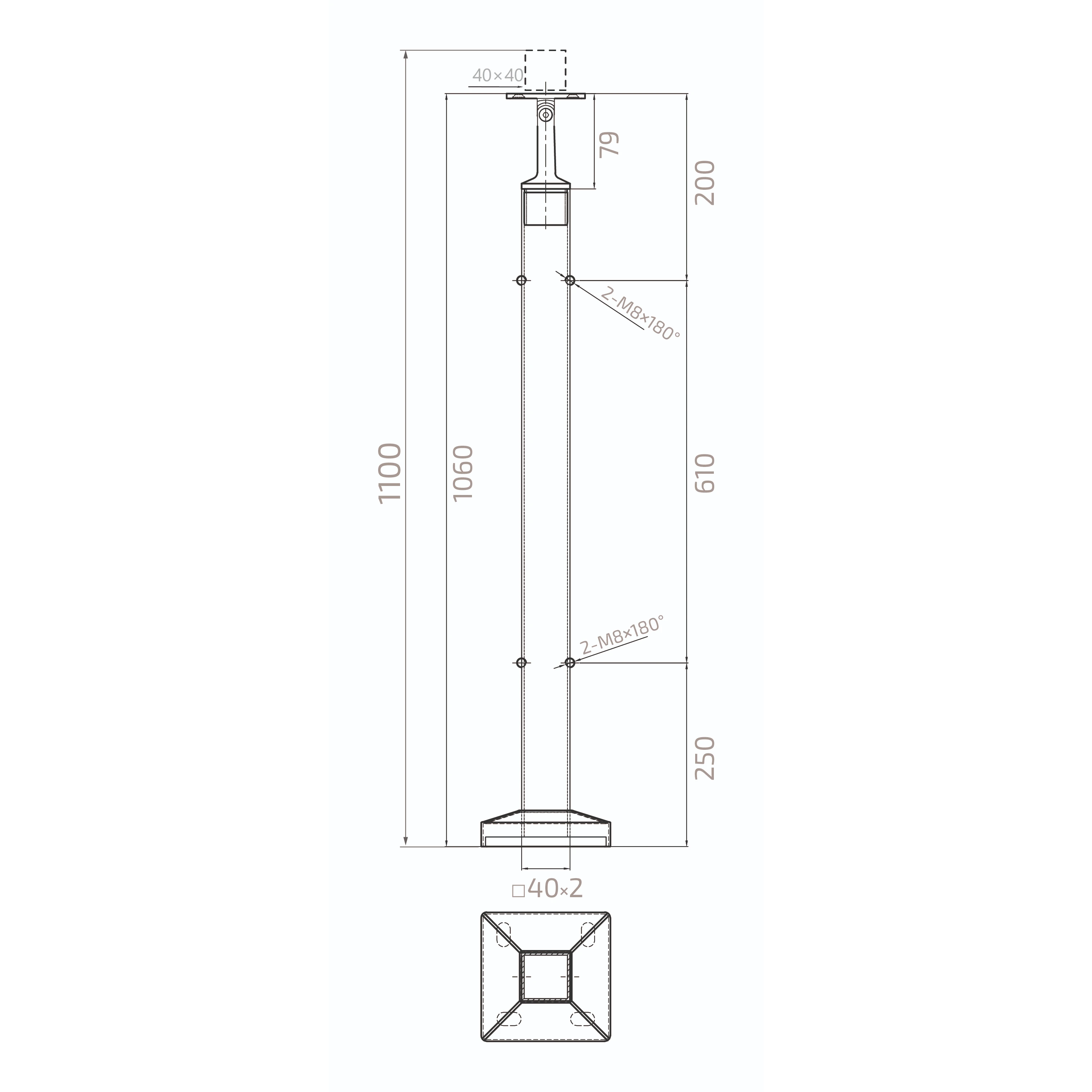

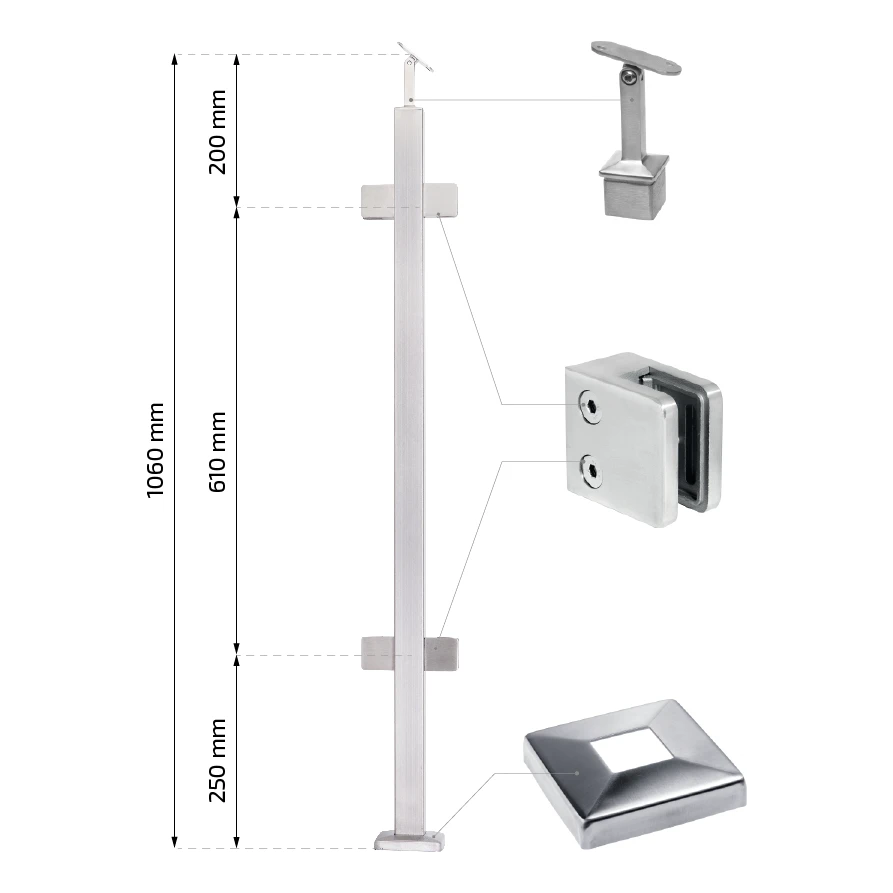

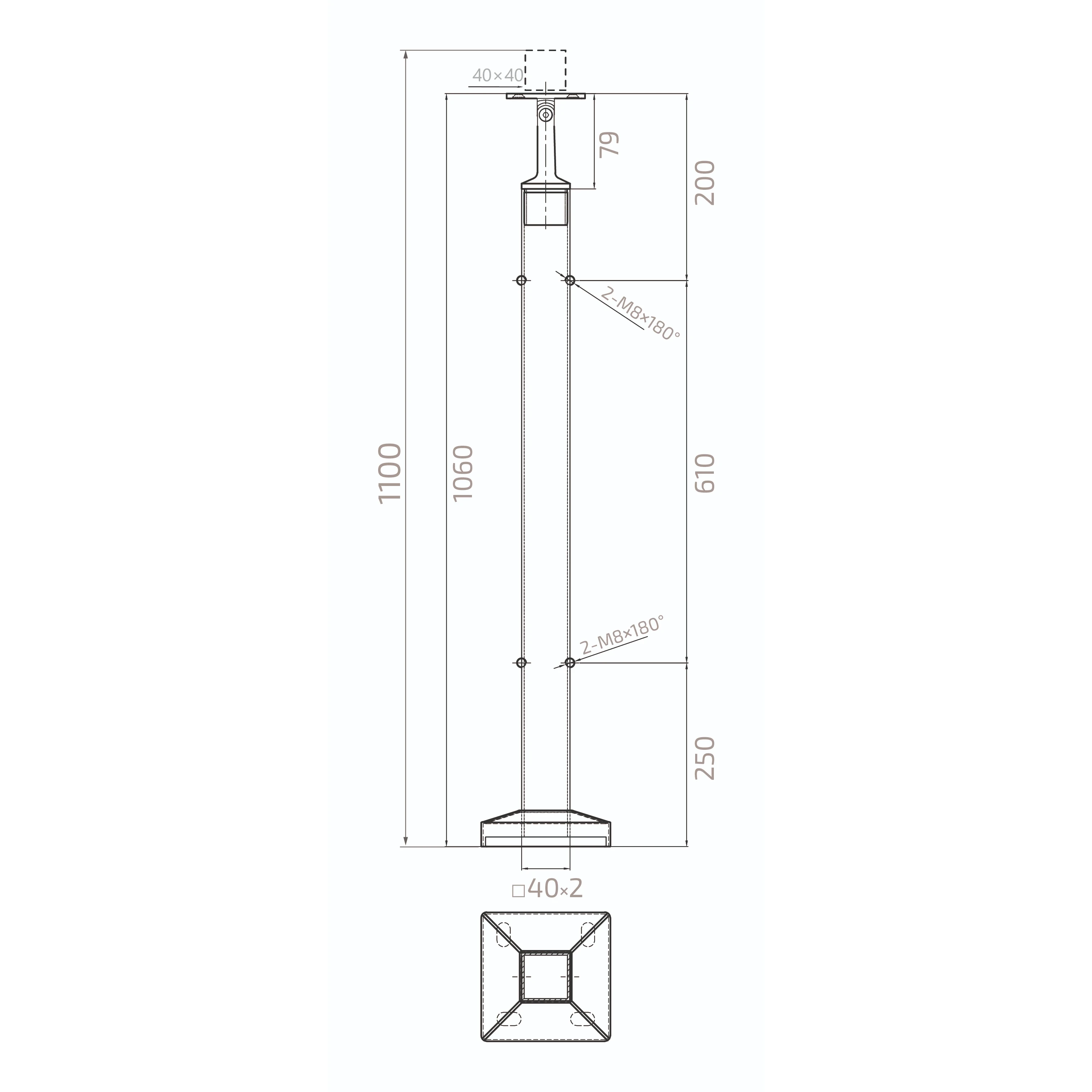

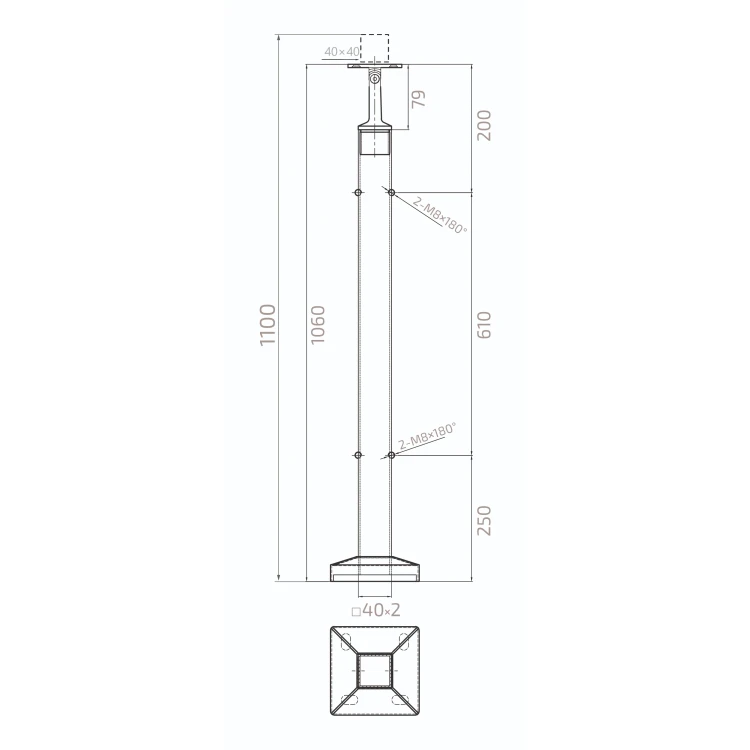

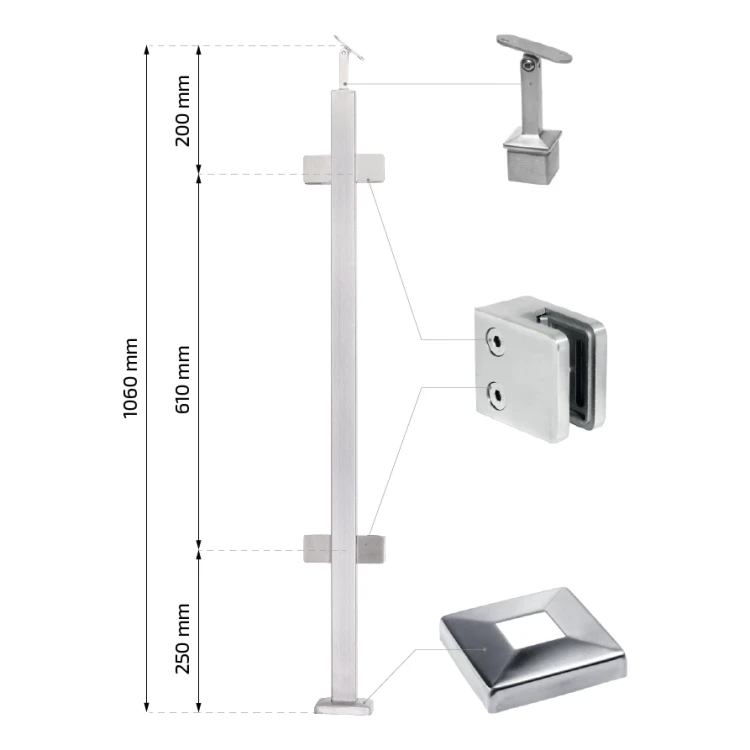

Post dimensions and clamp arrangement
- Post profile height: 1060 mm
- Total height with handrail: 1100 mm
- Post profile: 40×40 mm, wall thickness 2 mm
- Distance of lower clamps from base: 250 mm
- Vertical spacing of clamp pairs: 610 mm
- Distance of upper clamps from top of profile: 200 mm
- Clamp fixing: 2×M8 screws spaced at 180°
- Colour / finish: satin (brushed)
- Material: AISI 304 stainless steel
- Set weight: 4.36 kg
- EAN: 5903313202268

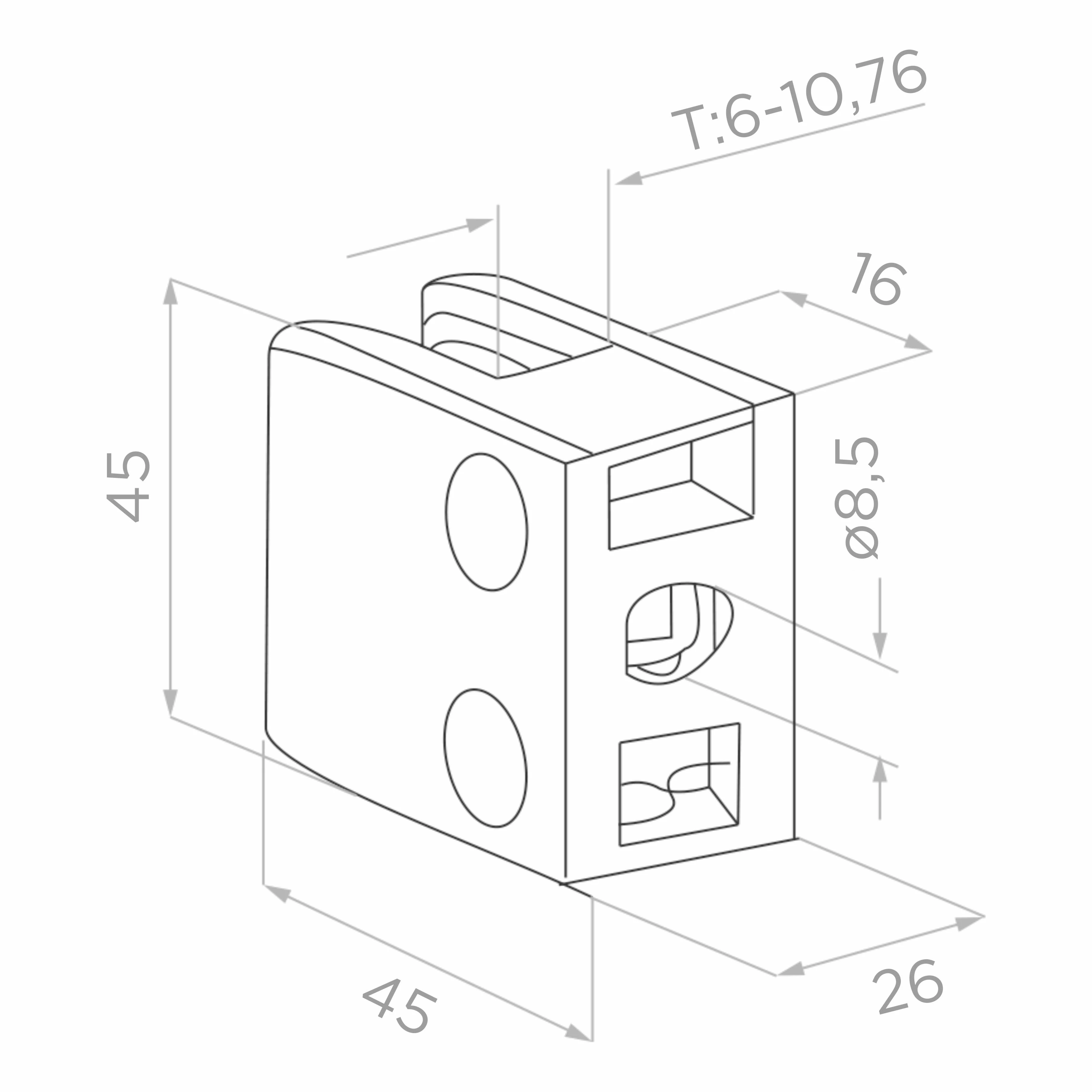

Glass clamp parameters
- Clamp dimensions: 45×45×26 mm
- Glass thickness range: 6–10.76 mm
- Mounting hole diameter: Ø8.5 mm
- Rubber seals included are matched to 8 mm glass — for other glass thicknesses, appropriately sized rubber seals are required
Handrail bracket and cover plate

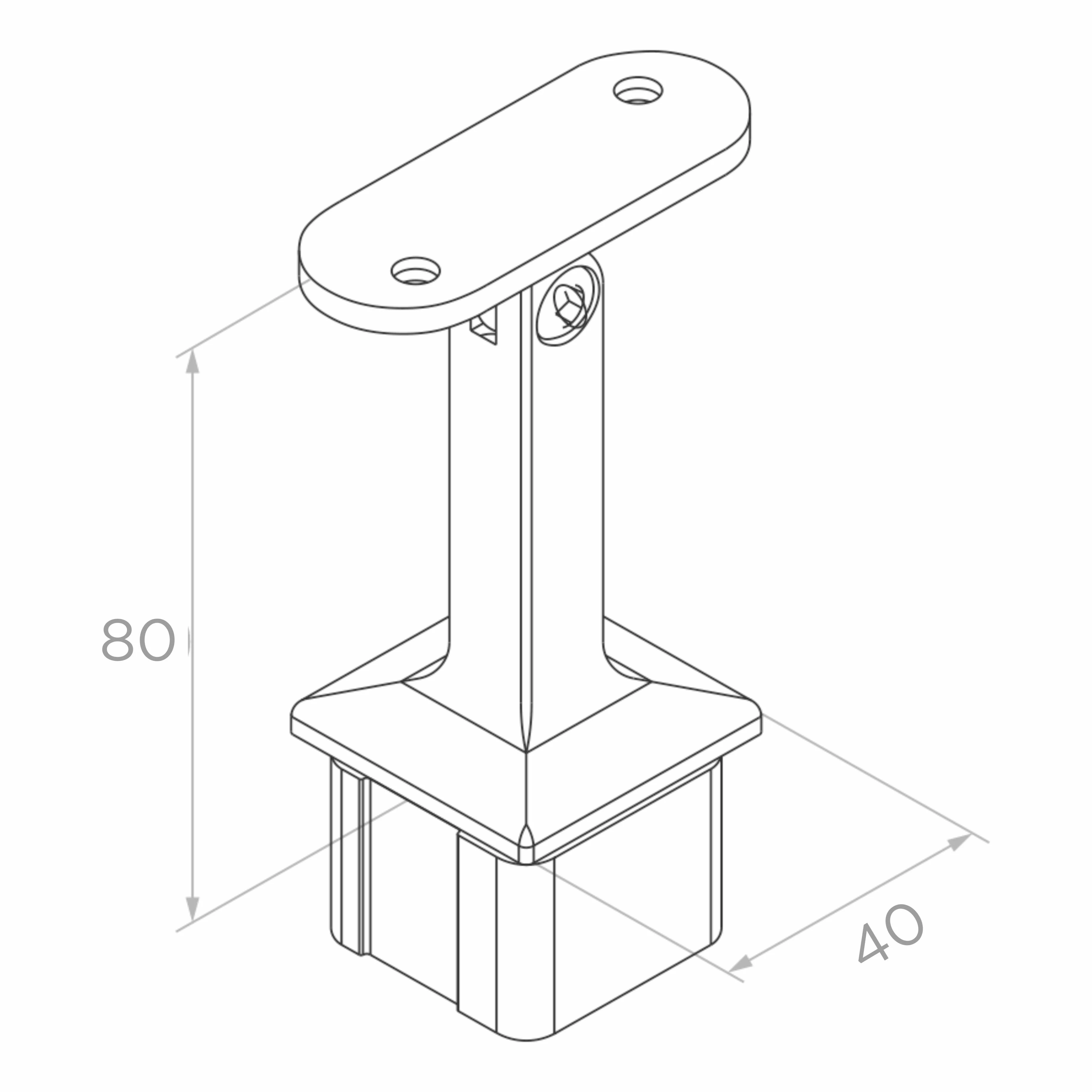

Handrail bracket with 80 mm height and base matched to 40×40 mm profile — mounted from the top of the post using anaerobic adhesive. The adjustable top plate enables precise setting of the handrail angle.

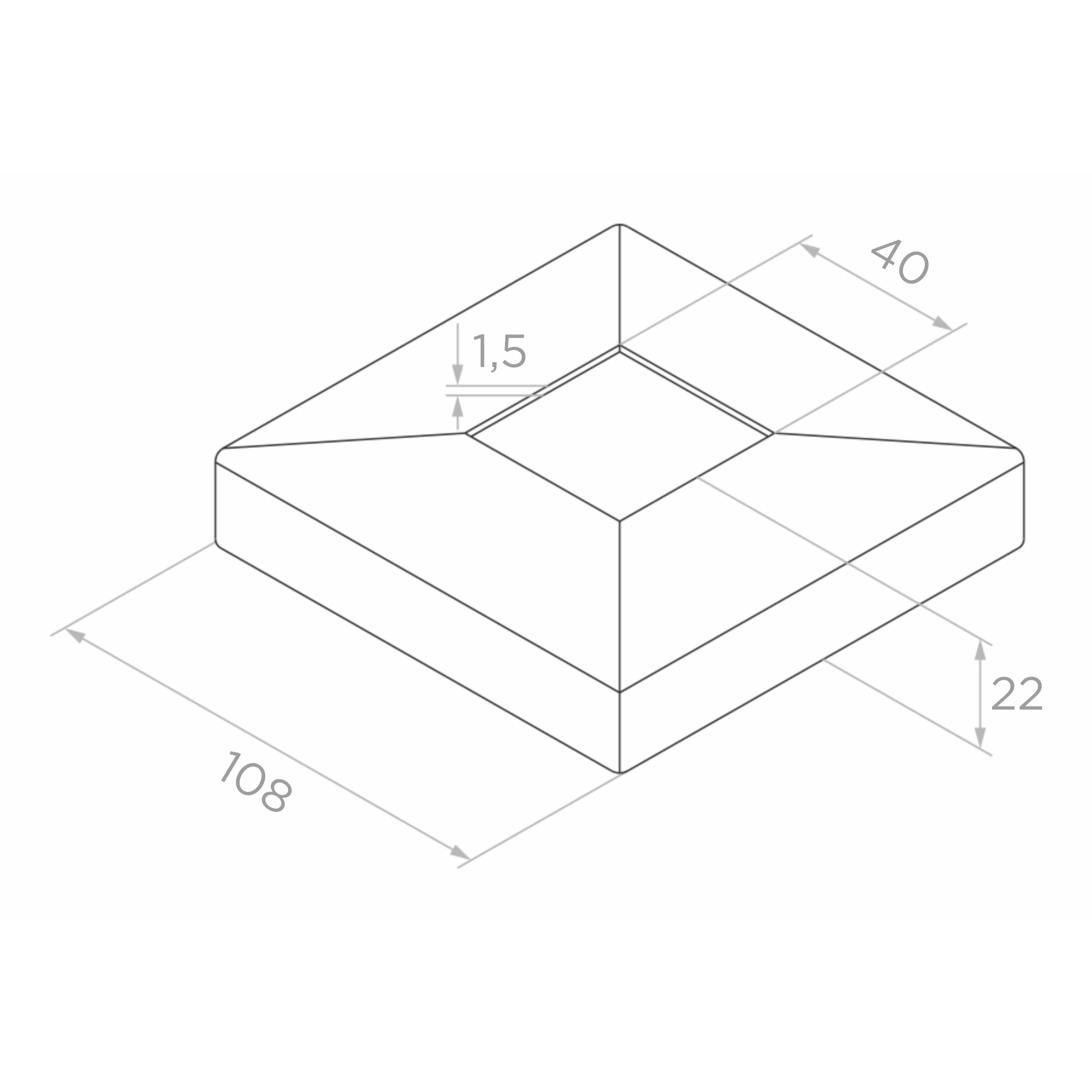

Base cover plate with dimensions 108×108 mm and height 22 mm (sheet thickness 1.5 mm) aesthetically covers the post mounting point in the floor, ensuring a neat finish.
Installation guidelines
The post is mounted in the floor. The handrail support is not factory-bonded, allowing free adjustment of the setting to site conditions. For final fixing of the bracket, anaerobic adhesive for stainless steel should be used. This solution allows the post profile to be shortened if necessary, adapting it to floor unevenness — which significantly facilitates work for the installation team.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
