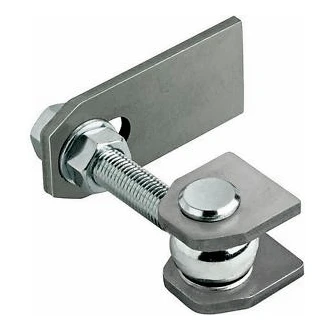

Hinge M16 - 180 degree opening angle
Leave feedback on the product
Hinge for welding into a metal post with M16 thread and 180° opening angle. Dimensions: H 46 mm, L 150 mm, weight 0.8 kg. Electrogalvanised for corrosion resistance.
Product code: 000-248
Product features
[PIM] zawiasy #113
- Adjustment No
- Thread type M16
- Diameter 12
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable Hinge M16 Galvanised – 180° Opening Angle for Gates
The adjustable hinge M16 with a 180° opening angle is a robust mounting component designed for fencing and gate opening systems. Thanks to its detachable hinge construction, precise adjustment of the gate position is quick and straightforward — reducing installation time and labour costs.
The hinge is designed for welding into a metal post, ensuring a durable and stable connection with the fencing structure. Electrogalvanising provides high corrosion resistance, allowing the product to maintain full functionality for years — even in demanding weather conditions.
Technical Specifications
- Thread: M16
- Opening angle: 180°
- Height (H): 46 mm
- Length (L): 150 mm
- Weight: 0.8 kg
- Material: galvanised metal
- Installation: for welding into a metal post
- EAN: 8028390309031
This hinge is designed for professional fencing installations — suitable for both swing gates and pedestrian wicket gates. The adjustable construction allows easy realignment of the gate leaf even after extended use, reducing the need for costly on-site service calls for the end customer.
