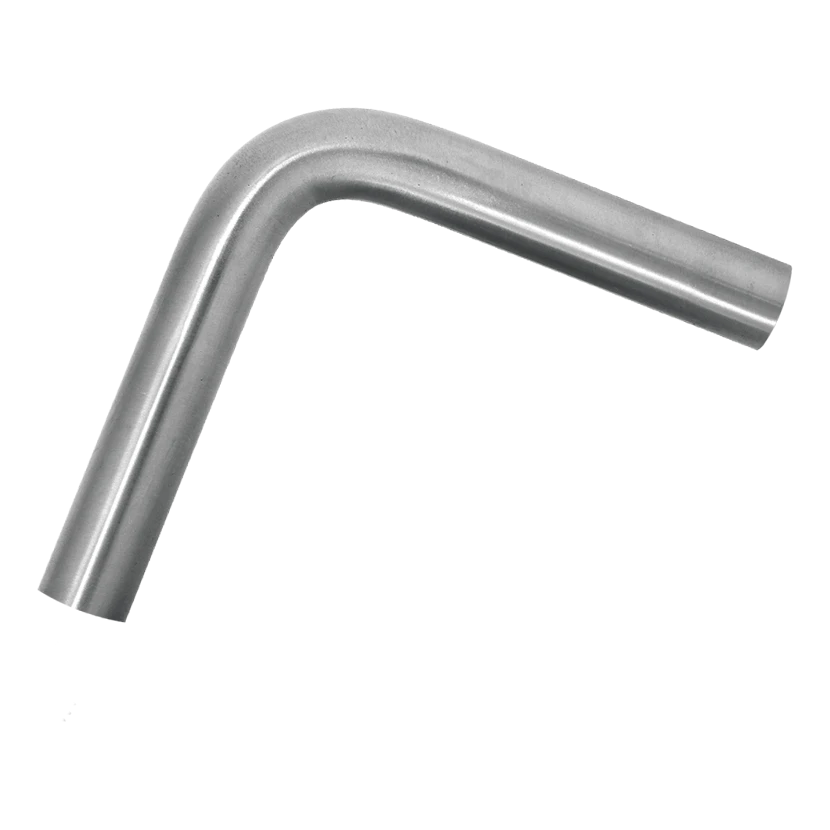

Handrail support rod 90° fi 14 mm 75×75 mm AISI 304 satin
0
Description
Handrail support rod 90° fi 14 mm 75×75 mm AISI 304 satin
Handrail support rod with 90° angle is a structural element of stainless steel balustrades, responsible for stable and aesthetic handrail mounting. Made from AISI 304 steel in satin finish, it ensures durability, corrosion resistance and elegant appearance — perfectly suitable for stair, balcony and terrace balustrades.
The element is equipped with external thread M8 on one side and internal thread M6 on the other, enabling easy screwing and universal application in various mounting configurations. The depth of both threads is 20 mm, which guarantees secure and stable connection with other balustrade components.

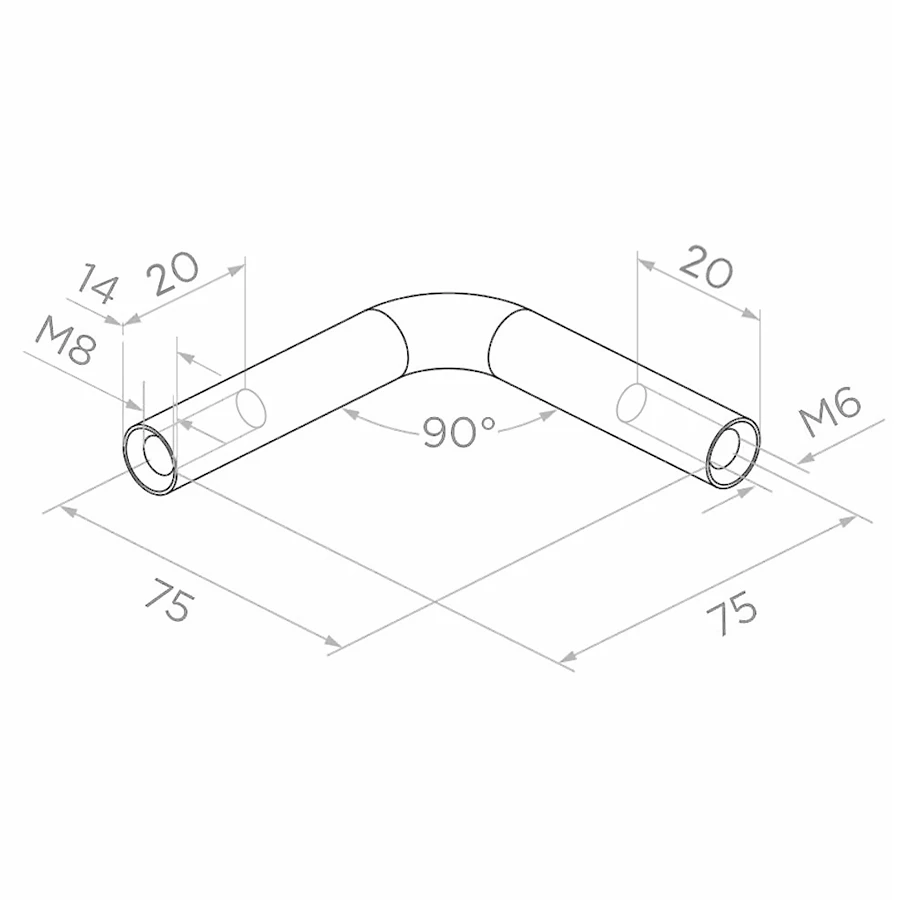

Dimensions and technical specification
- Material: AISI 304 stainless steel
- Finish: satin
- Rod diameter: fi 14 mm
- Bend angle: 90°
- Arm length: 75 × 75 mm
- External thread: M8
- Internal thread: M6
- Thread depth: 20 mm
- Mounting: screw-in
- Weight: 0.15 kg
- EAN: 5901289672337
Universal application
The handrail support rod is designed for professional stainless steel balustrade constructions. Thanks to symmetrical arms 75 × 75 mm and right angle, it is ideally suited for standard corner connections. The combination of M8 external thread and M6 internal thread allows for direct screwing into handrail brackets and connectors, which significantly speeds up assembly and eliminates the need for welding.
AISI 304 stainless steel in satin finish is a material resistant to weather conditions, moisture and scratches — it guarantees years of maintenance-free operation both inside buildings and outdoors. For installation teams, this means fewer complaints and higher end-customer satisfaction.
Technical data
| Material | AISI 304 |
| Finish | Satin |
