Handrail support rod 90° fi 12 mm 75×75 mm – stainless steel AISI 304 satin
0
Description

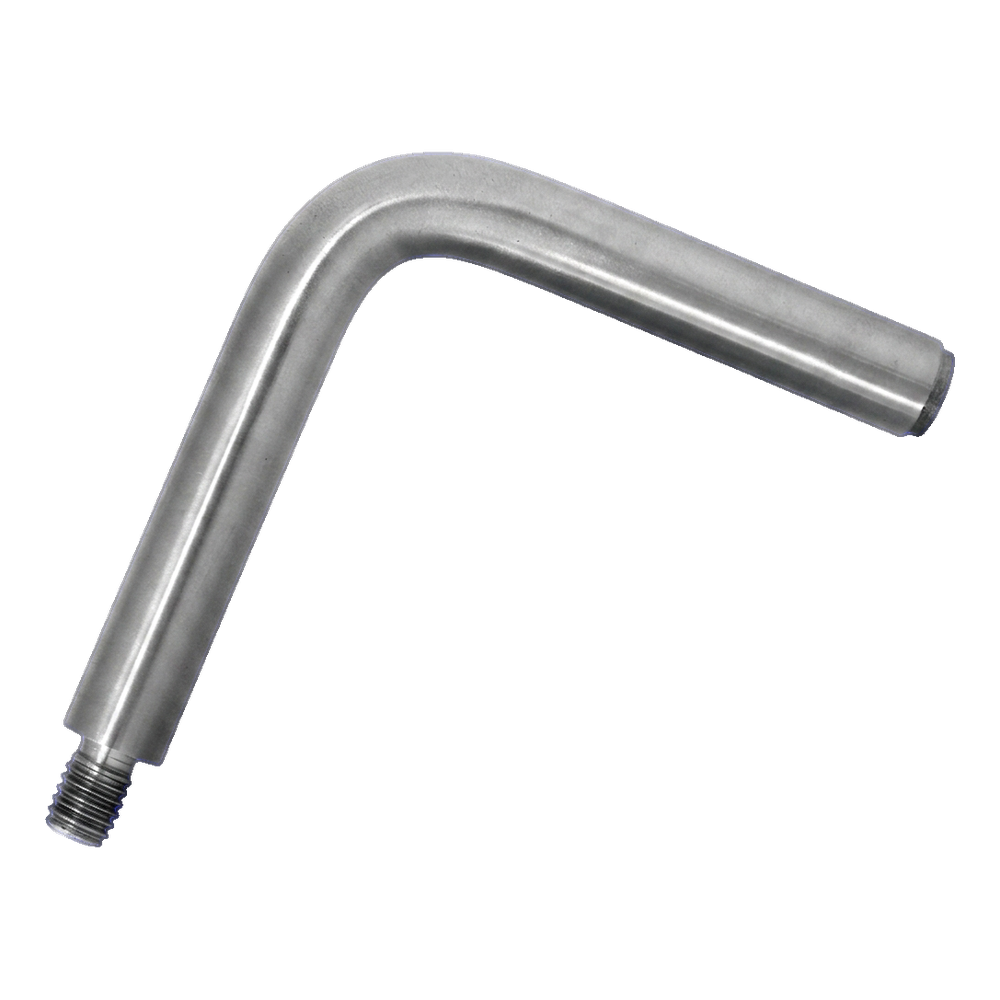

Handrail support rod 90° fi 12 mm 75×75 mm – stainless steel AISI 304 satin
Handrail support rod bent at a 90° angle is a universal mounting element dedicated to building and connecting handrails with balustrade construction. Made from stainless steel AISI 304 with satin finish, it ensures durability, aesthetic appearance and corrosion resistance — even in outdoor conditions.
The rod is equipped with external thread M8 at one end and internal thread M6 at the other, enabling flexible connection with various types of handrail brackets and supports. Element designed for welding or screwing into post construction or handrail mounting — ideal choice for companies carrying out stainless steel balustrade installations.

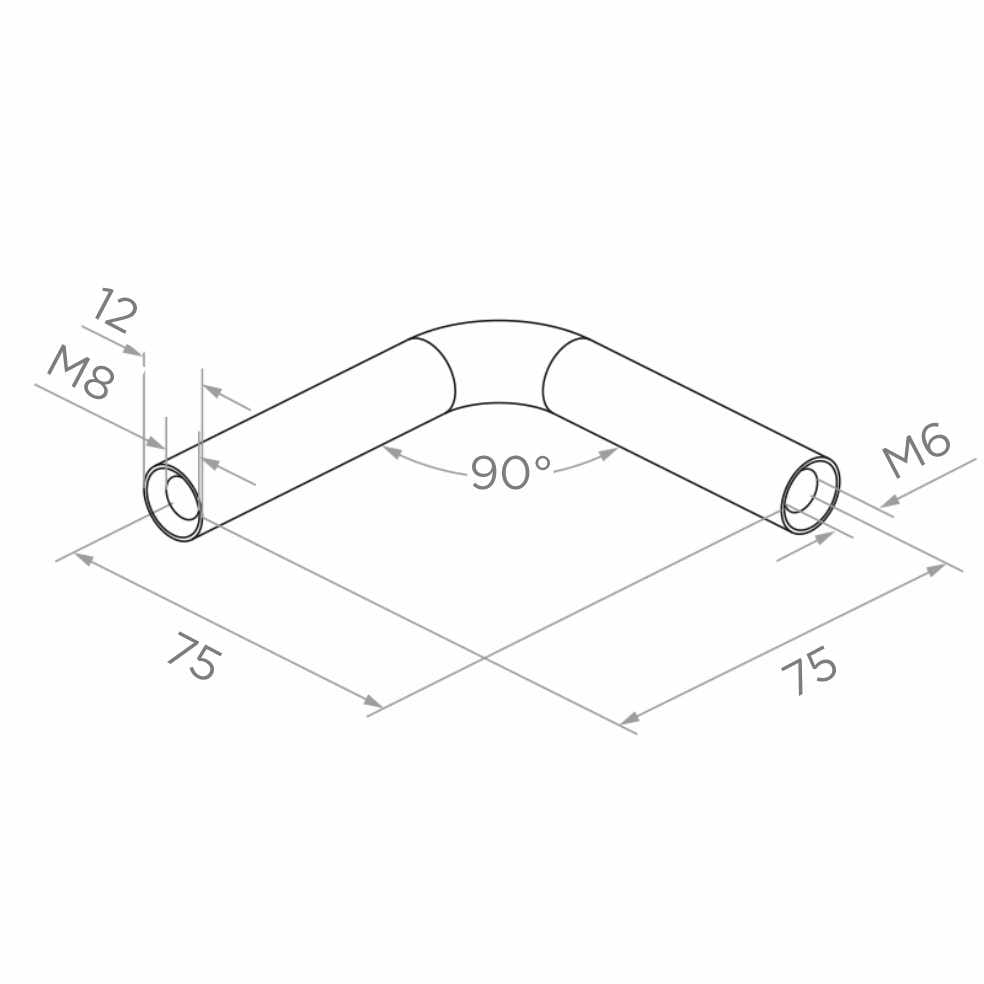

Dimensions and technical data
- Rod diameter: fi 12 mm
- Bending angle: 90°
- Arm length 1: 75 mm
- Arm length 2: 75 mm
- External thread: M8
- Internal thread: M6
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.13 kg
- EAN: 5901289672306
Application
The handrail support rod finds application wherever it is necessary to connect handrails with balustrade construction elements at a right angle. It works well both for mounting handrails on posts and for creating angular transitions. Universal construction with two types of threads (M8 external / M6 internal) allows connection with a wide range of brackets, connectors and supports available on the market. Element dedicated for welding — ensures durable and aesthetic connection in professional stainless steel balustrade installations.
Technical data
| Material | AISI 304 |
| Finish | Satin |
