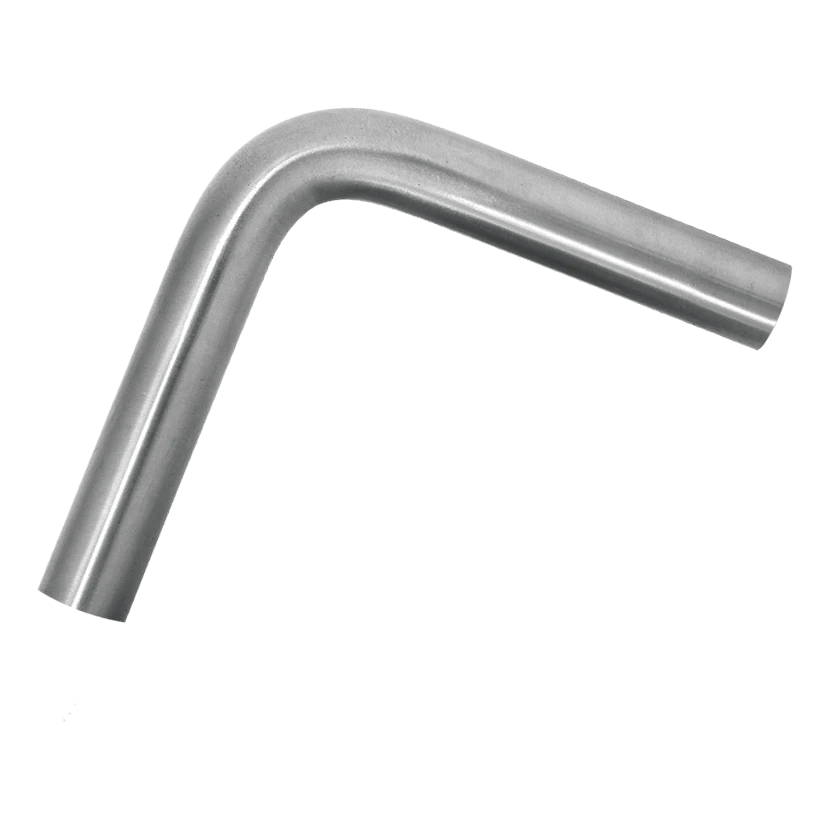

Handrail support rod 90° ø 12 mm 75×75 mm AISI 304 satin
0
Description
Handrail support rod 90° ø 12 mm 75×75 mm AISI 304 satin
Handrail support rod bent at a 90° angle is a solid structural element for mounting handrails on steel balustrades. Made from AISI 304 stainless steel with a satin finish, it ensures durability, corrosion resistance and aesthetic appearance – perfectly complementing modern stair, balcony and terrace balustrades.
Both arms of 75 mm length are terminated with internal threads (M8 and M6), enabling quick and secure screwing of the rod into other balustrade construction elements. The universal design allows for use in various mounting configurations.

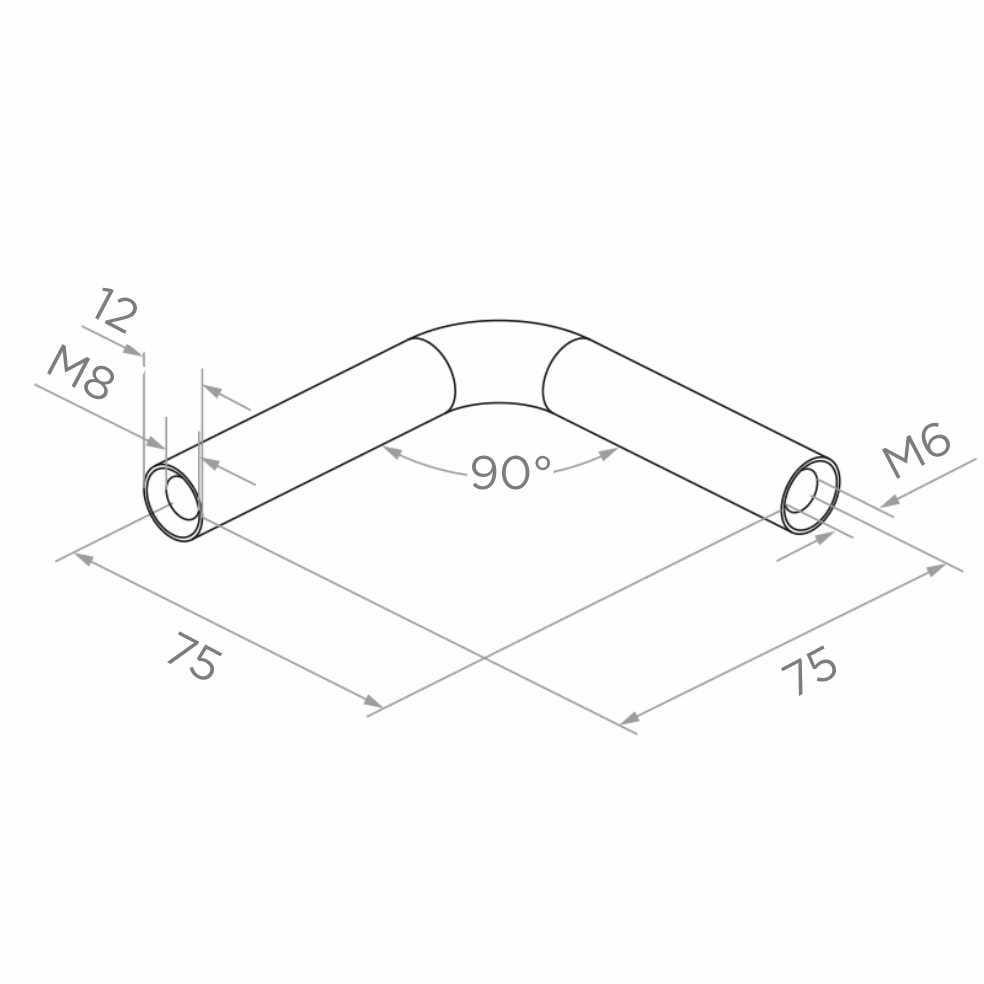

Dimensions and technical data
- Bend angle: 90°
- Rod diameter: ø 12 mm
- Left arm length: 75 mm
- Right arm length: 75 mm
- Internal thread (arm 1): M8
- Internal thread (arm 2): M6
- Material: AISI 304 stainless steel
- Finish: satin
- Type: universal
- Weight: 0.12 kg
- EAN: 5901289672313
Application and advantages
The handrail support rod is a key element affecting the stability of the balustrade construction and handrail durability. AISI 304 stainless steel guarantees high resistance to mechanical damage and atmospheric factors, making this element suitable for both indoor and outdoor use. The satin surface finish facilitates cleaning and gives the balustrade a modern, elegant character.
Product designed for stair, balcony and terrace balustrades – wherever solid handrail support with threaded connection is required. Installation by screwing speeds up assembly work and allows for easy service dismantling.
Technical data
| Material | AISI 304 |
| Finish | Satin |
