Handrail support rod ø 14×75 mm AISI 304 – M8/M6 thread, satin
0
Description

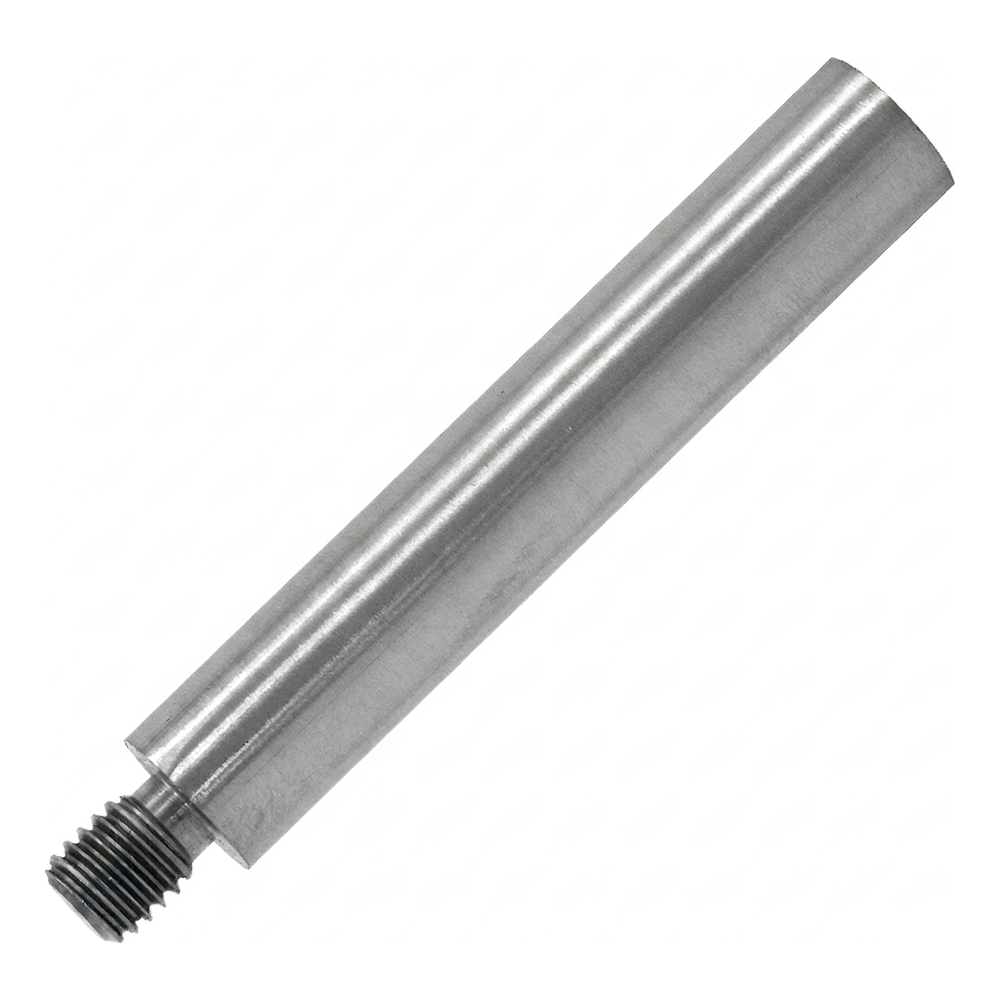

Handrail support rod ø 14×75 mm AISI 304 – M8/M6 thread, satin
Handrail support rod ø 14×75 mm is a precision structural element for balustrades made from stainless steel, ensuring a stable and aesthetic connection between handrail and bracket. Manufactured from grade AISI 304 with satin finish, it perfectly complements modern stair, balcony and terrace balustrades. Thanks to the dual-threaded design — external M8 and internal M6 — it enables quick installation by screwing, which significantly speeds up installation work on construction sites.
AISI 304 stainless steel guarantees high corrosion resistance, mechanical damage resistance and easy maintenance — key features for balustrades exposed to atmospheric conditions. The satin surface finish gives the element a discreet, professional appearance, eliminating reflections and masking minor wear marks.

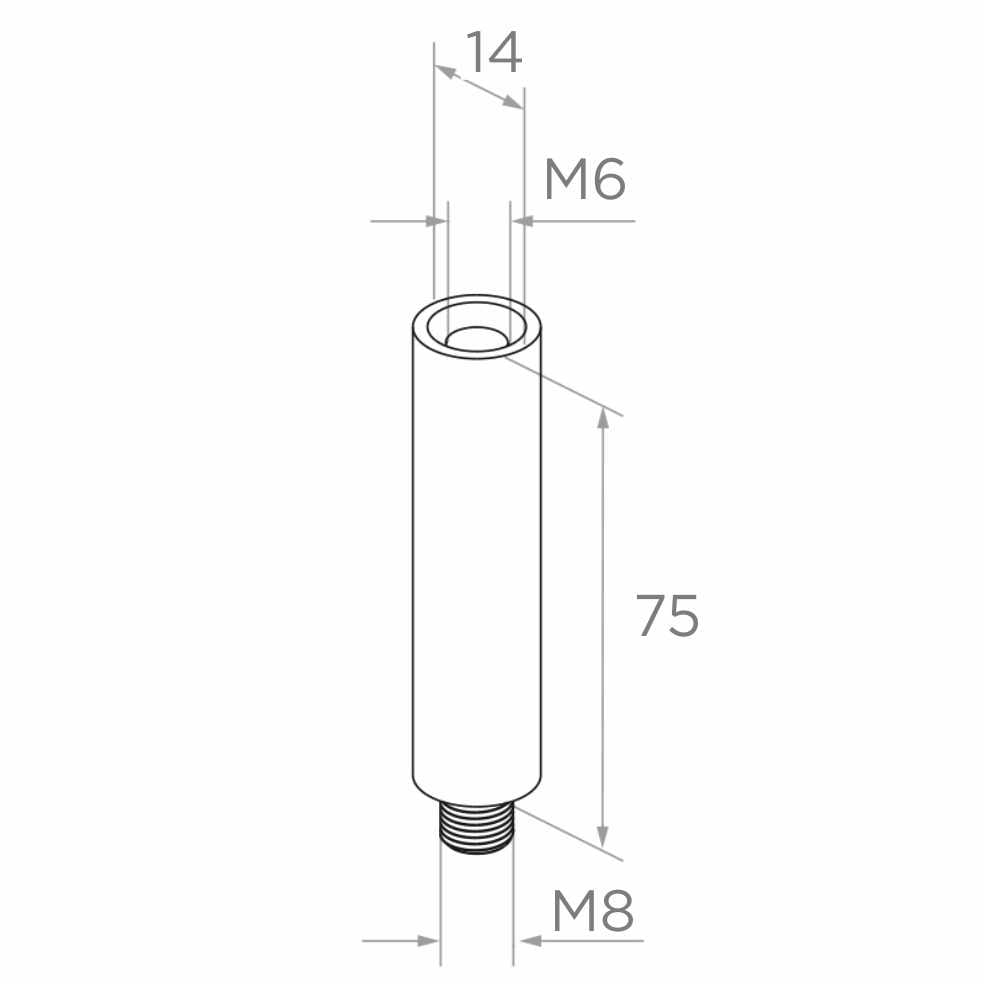

Dimensions and technical parameters
- External diameter: 14 mm
- Body height: 75 mm
- External thread (bottom): M8
- Internal thread (top): M6
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: universal
- Weight: 0.08 kg
- EAN: 5901289672252
Universal application
The handrail support rod is an intermediate element affecting both the stability of the balustrade structure and its visual qualities. The universal design with M8/M6 threads ensures compatibility with a wide range of brackets and handrails available on the market. The product performs well in stair, balcony and terrace balustrades, both in residential and commercial buildings.
Technical data
| Material | AISI 304 |
| Finish | Satin |
