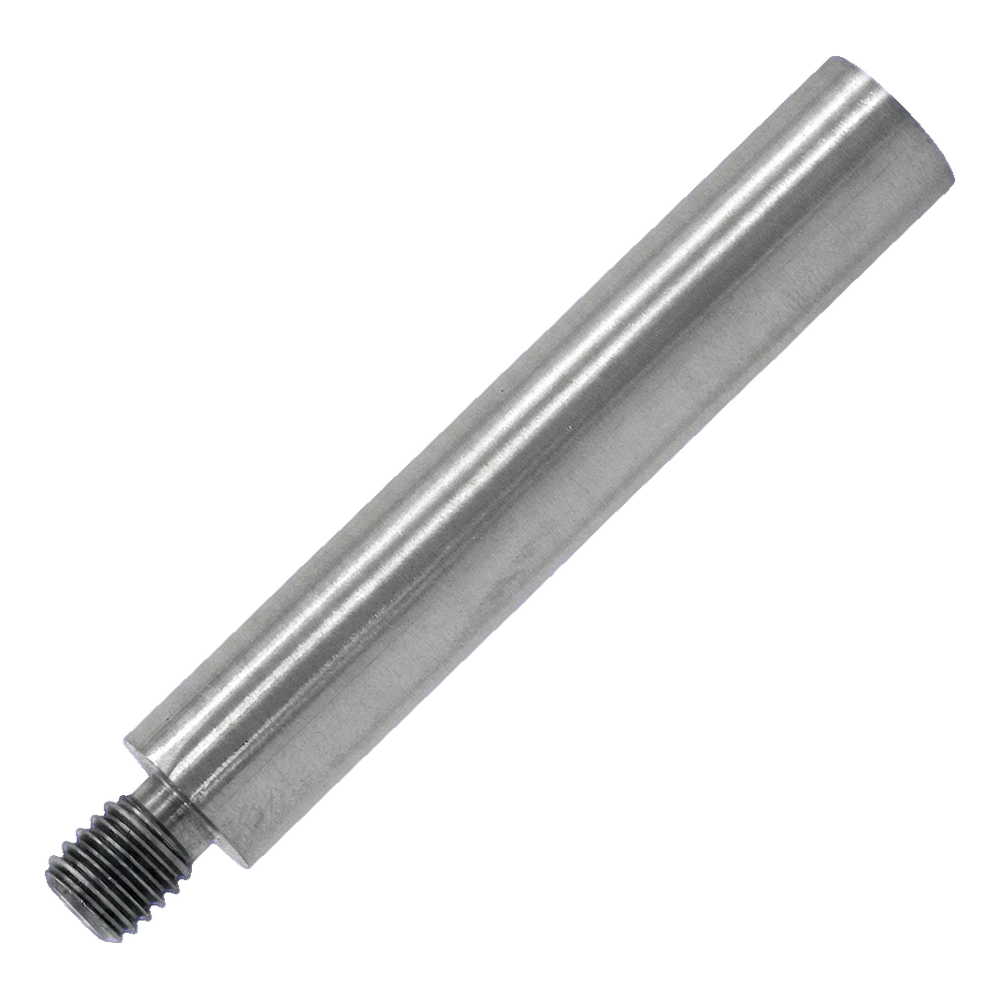

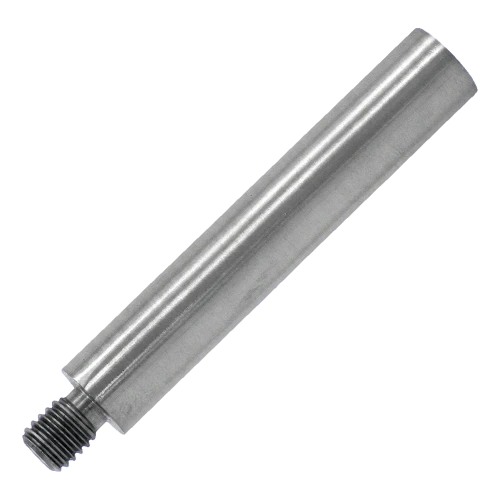

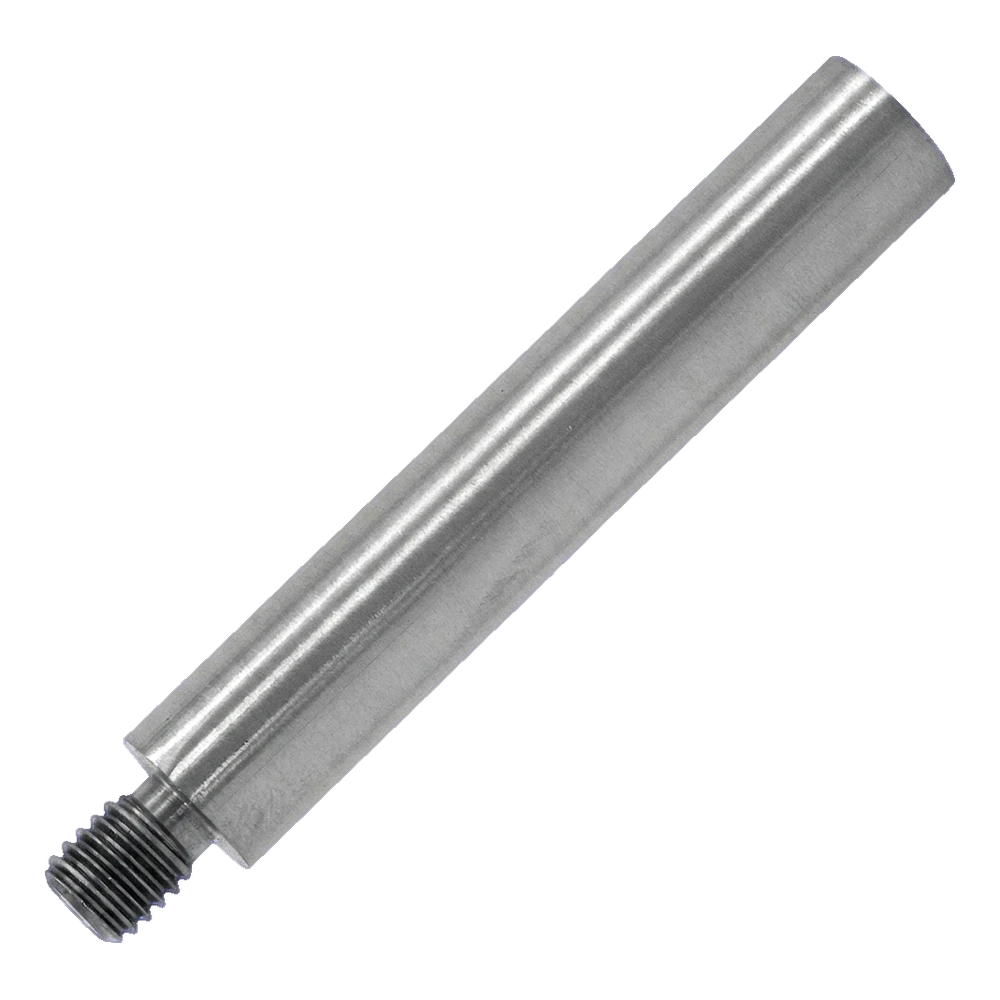

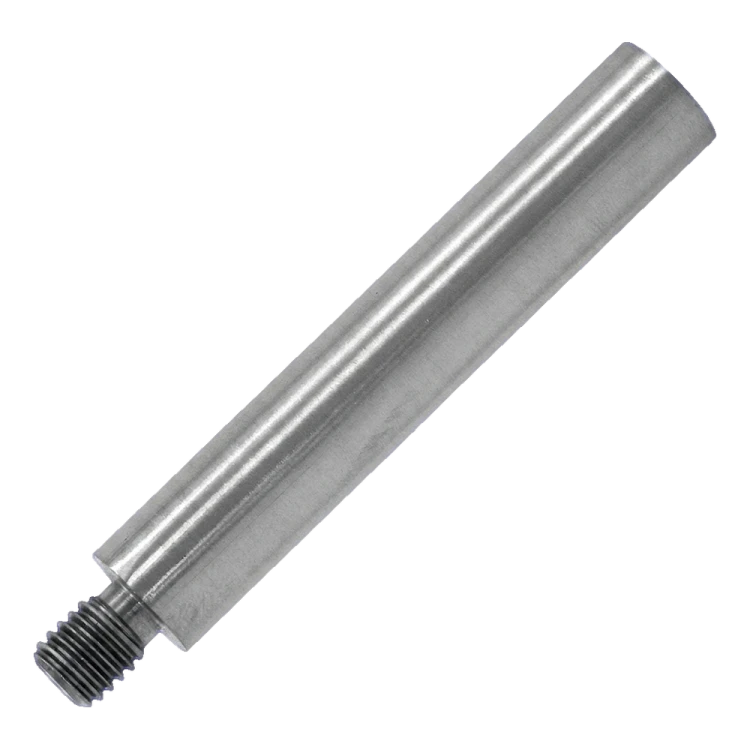

Handrail support rod Ø12×75 mm with M8 thread – stainless steel AISI 304 satin
0
Description
Handrail support rod Ø12×75 mm with M8 thread – stainless steel AISI 304 satin
Handrail support rod Ø12×75 mm is a mounting component designed for securing handrail brackets in balustrade and handrail systems made from stainless steel. Thanks to the external M8 thread and construction adapted for welding, the rod ensures a durable and stable connection with the post or other load-bearing element of the balustrade.
Made from stainless steel AISI 304 with satin finish, it perfectly complements other elements of stainless steel balustrade systems. Grade AISI 304 guarantees high corrosion resistance, allowing the rod to be used both inside buildings and outdoors.

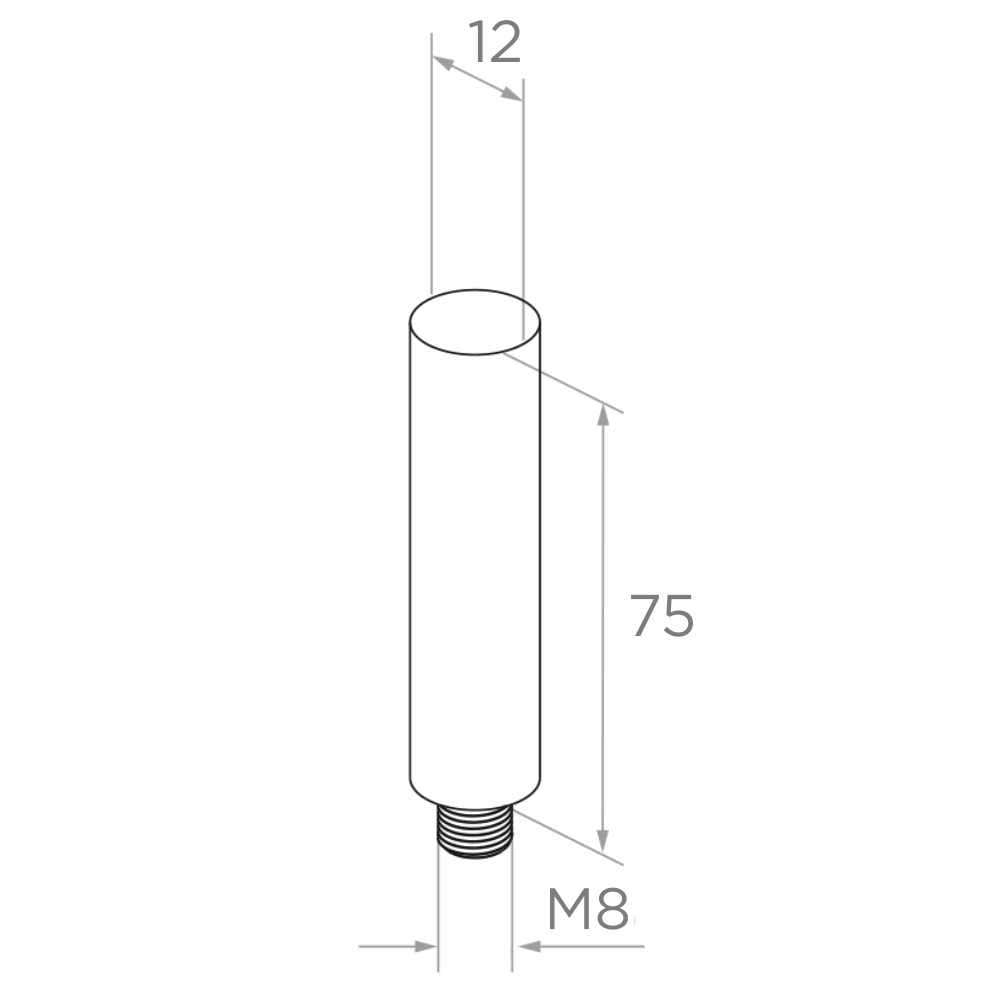

Dimensions and technical parameters
- Rod diameter: Ø12 mm
- Smooth section length: 75 mm
- External thread: M8
- Material: stainless steel AISI 304
- Surface finish: satin
- Mounting type: for welding
- Type: universal
- Weight: 0.06 kg
- EAN: 5901289672214
Application and mounting
The rod serves as a handrail bracket support — one end with M8 thread screws into the handrail bracket, whilst the other end (smooth) is designed for welding into the post or load-bearing element of the balustrade. The universal design enables use in various configurations of steel balustrade and handrail systems. Compact dimensions (Ø12 × 75 mm) allow for precise matching to standard handrail brackets available on the market.
Technical data
| Material | AISI 304 |
| Finish | Satin |
