Handrail support rod ø 12×75 mm AISI 304 – thread M8/M6, satin
0
Description

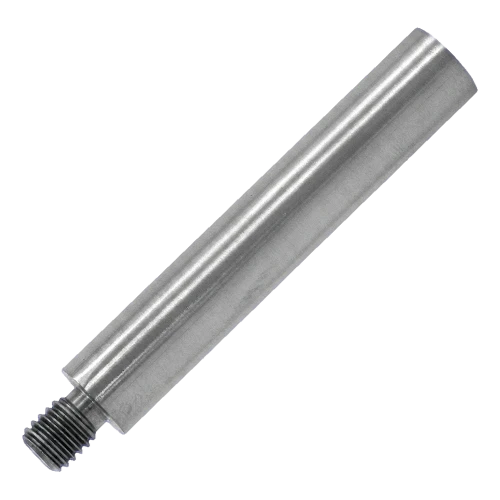

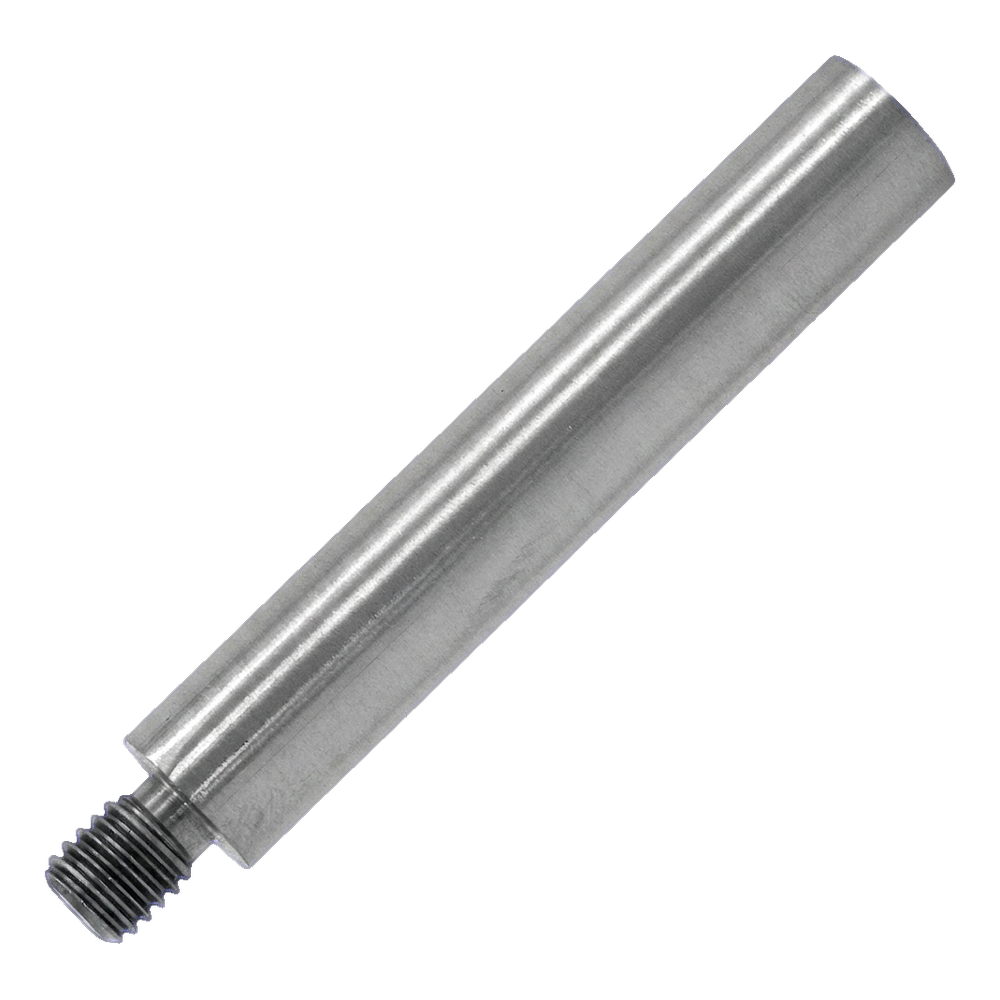

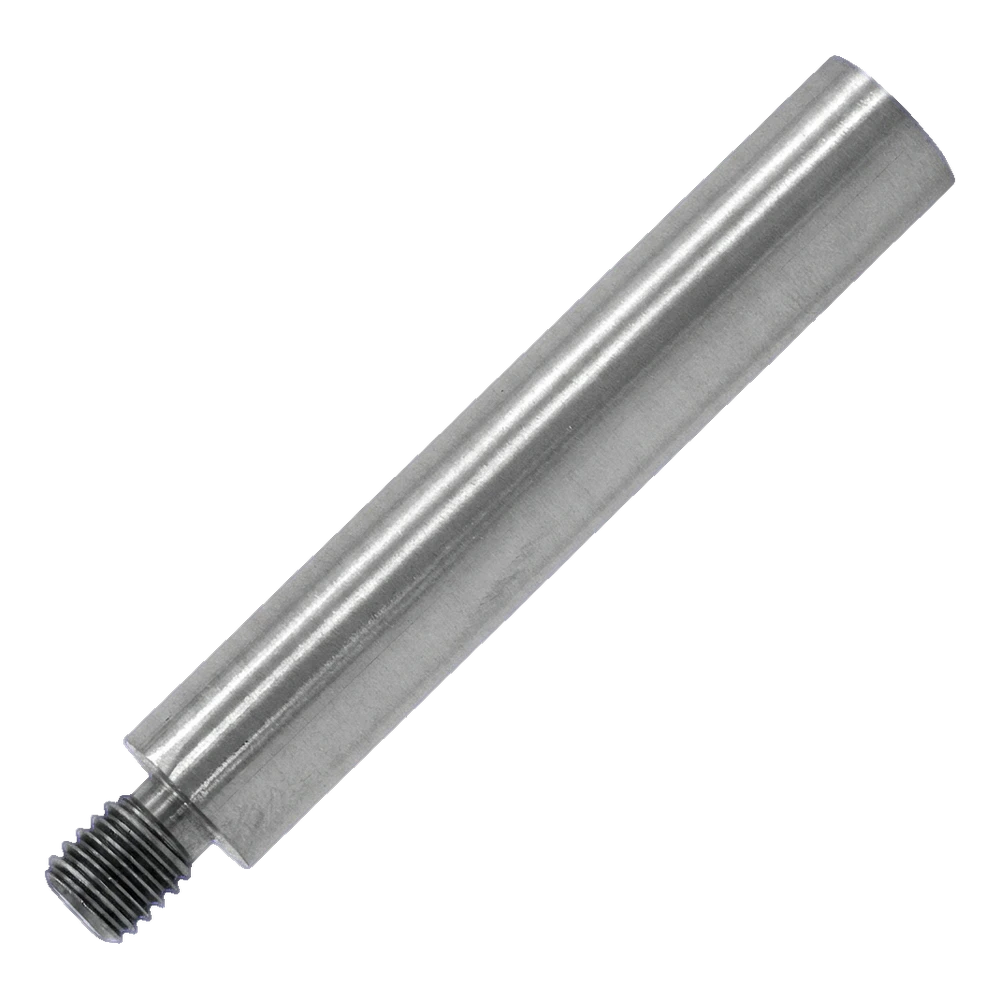

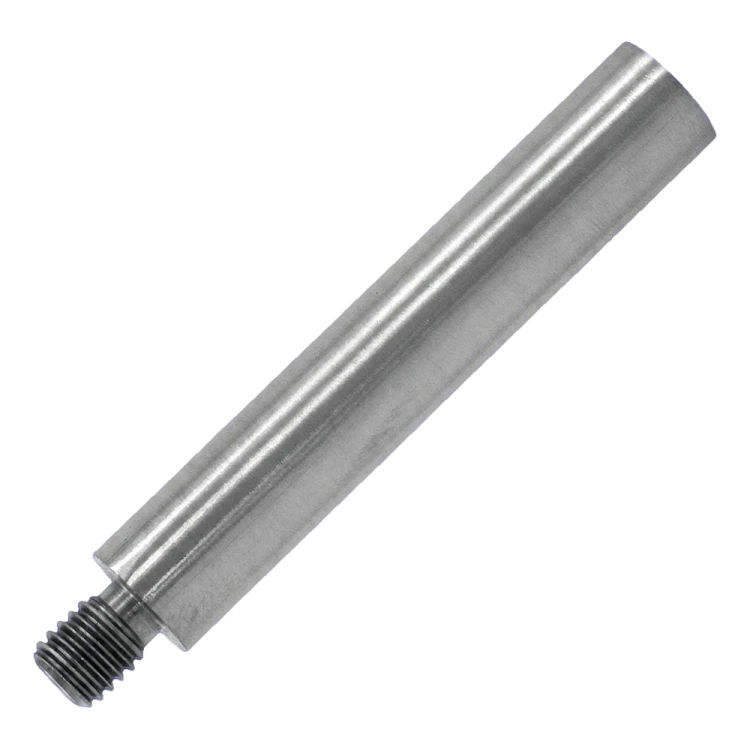

Handrail support rod ø 12×75 mm AISI 304 – thread M8/M6, satin
Handrail support rod ø 12×75 mm is a universal mounting element designed for construction of balustrades and handrail systems. Made from AISI 304 stainless steel in satin finish, it ensures durability and aesthetic appearance for years — even in demanding operating conditions.
The rod is equipped with an M8 external thread at the bottom end and an M6 internal thread in the upper section, which enables flexible connection with handrail brackets, supports and other elements of balustrade systems. The construction is designed for welding, which guarantees maximum rigidity and connection reliability.

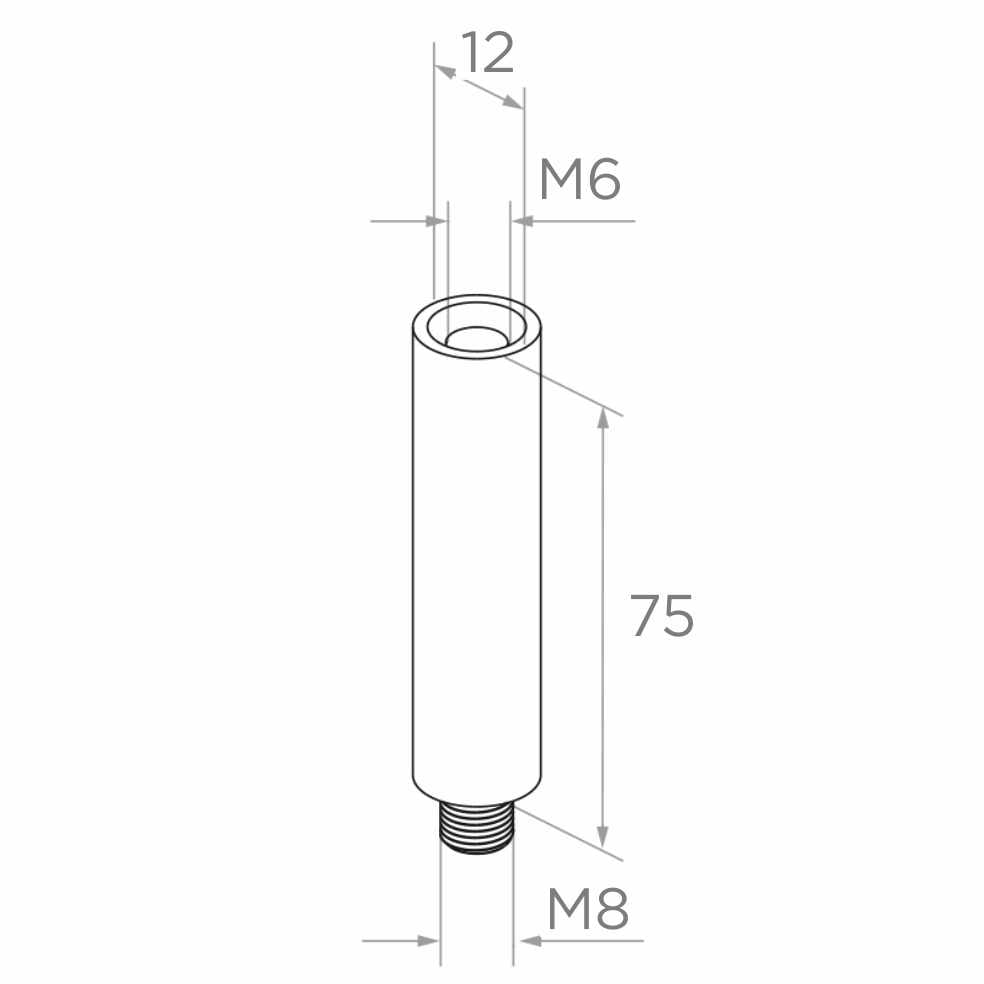

Dimensions and technical specification
- Body diameter: ø 12 mm
- Length: 75 mm
- External thread (bottom): M8
- Internal thread (top): M6
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: universal
- Purpose: for welding
- Weight: 0.07 kg
- EAN: 5901289672207
Application
The rod is dedicated to professional handrail installation in balustrade systems. The M8 external thread serves for mounting in support or post, whilst the M6 internal thread enables connection with handrail bracket. Thanks to the use of AISI 304 stainless steel and satin finish, the element performs excellently in both internal and external installations — it is corrosion resistant, easy to maintain and aesthetically consistent with other components of stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | Satin |
