Handrail support articulated rod ø 14×75 mm – AISI 304 stainless steel, satin
0
Description

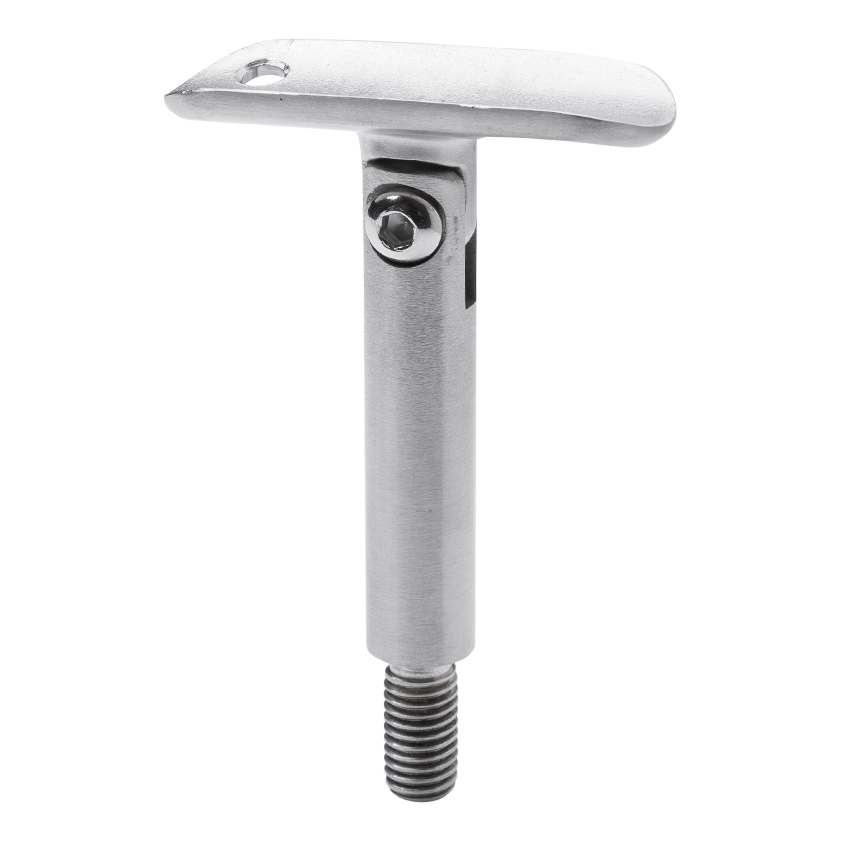

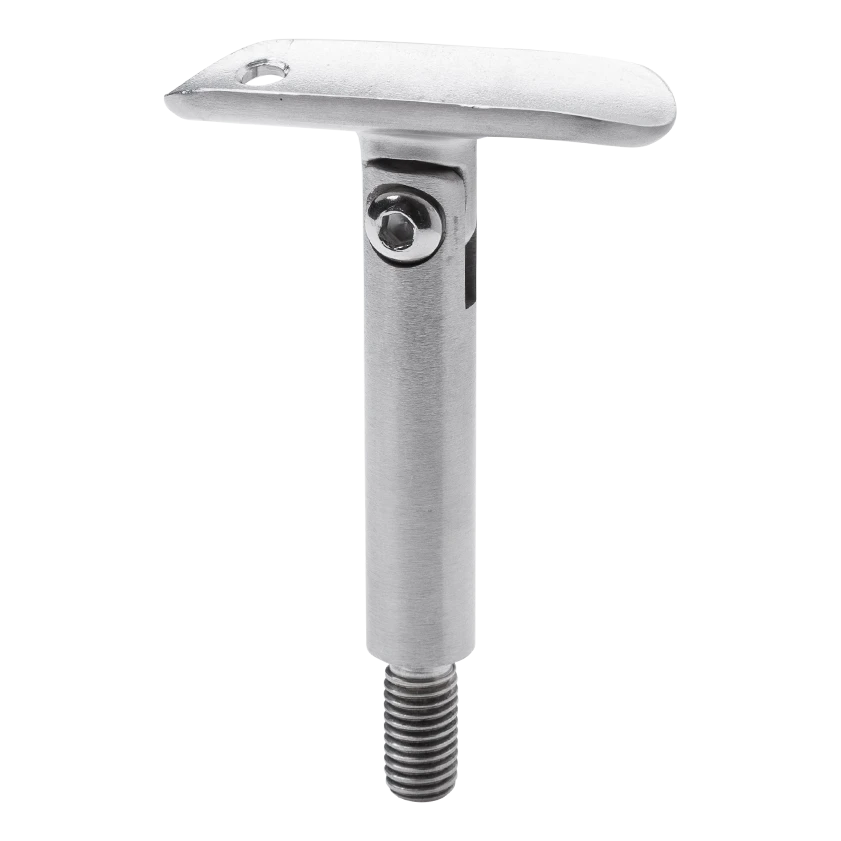

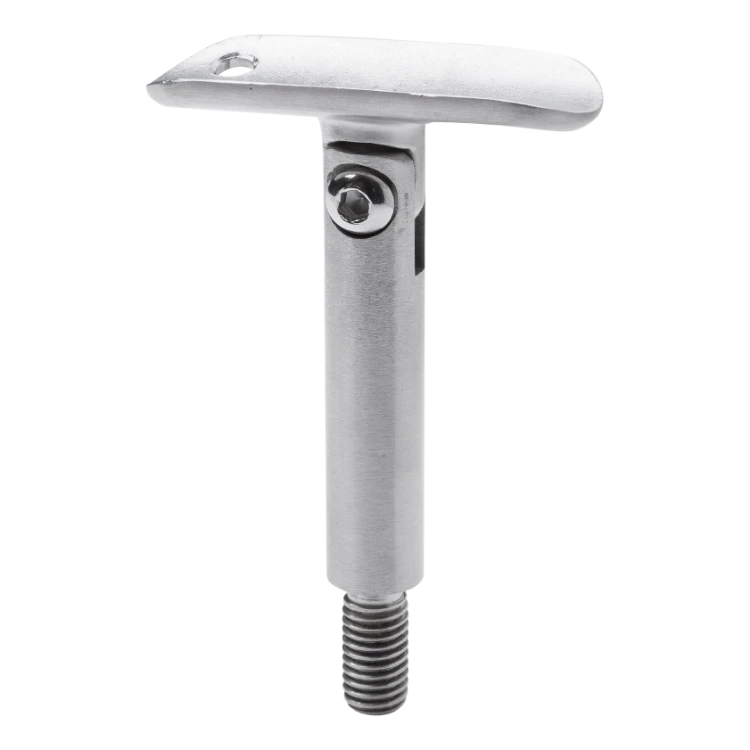

Handrail support articulated rod ø 14×75 mm – AISI 304 stainless steel, satin
Articulated handrail support made of AISI 304 stainless steel designed for balustrade systems with tube diameter 42.4 mm. Thanks to the articulated mechanism, this component enables smooth adjustment of the handrail angle — an essential solution for staircase balustrades where precise adjustment of the handrail gradient to the stair flight is required.

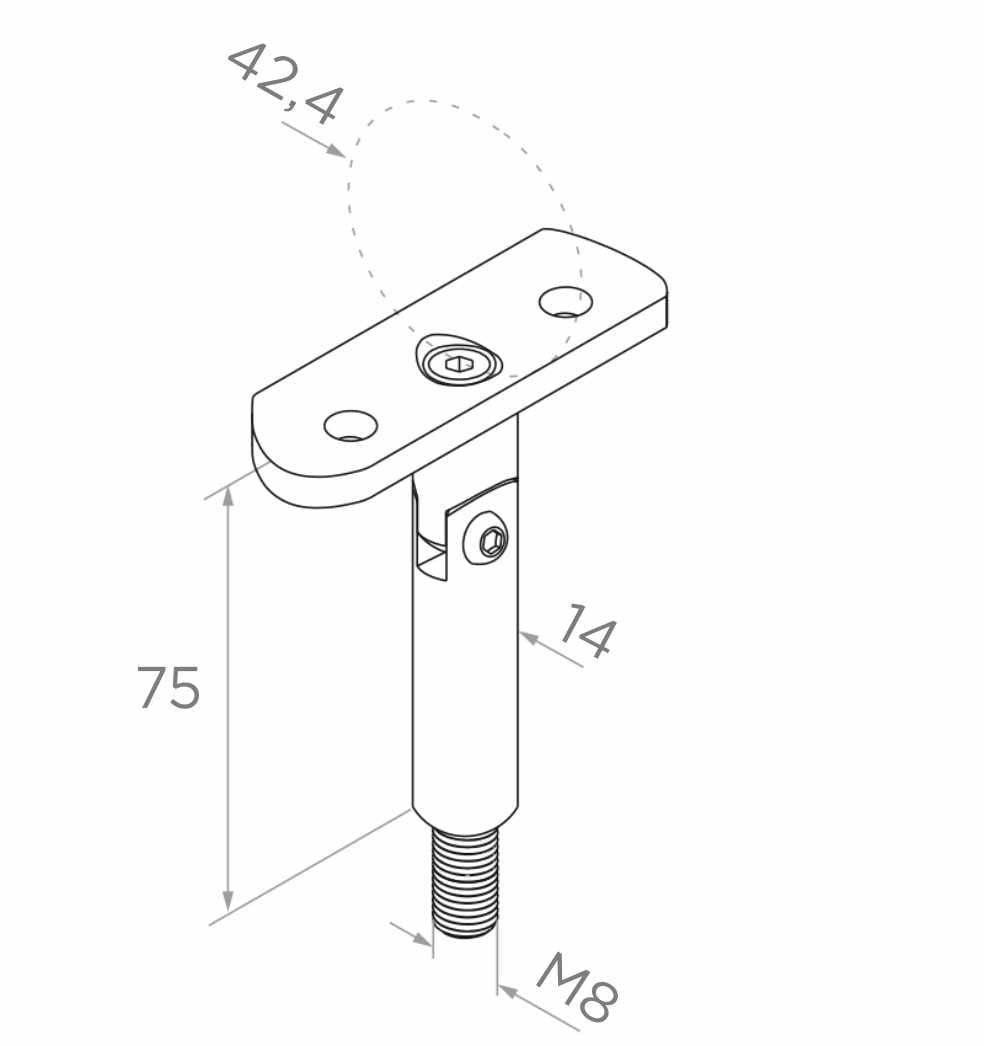

The articulated rod consists of a cylindrical shaft with diameter 14 mm and height 75 mm, finished with external thread M8 for screwing into a post or load-bearing element. The upper part is equipped with a profiled mounting plate fitted to a tube with diameter 42.4 mm, with mounting holes enabling secure handrail attachment. The articulated connection secured with an Allen screw allows setting the desired angle and, once tightened, ensures stable and durable position retention.
The satin finish gives the component an aesthetic, matt appearance, resistant to fingerprints and minor scratches — ideal for use in public buildings and modern interiors.
Technical parameters
- Rod diameter: 14 mm
- Rod height: 75 mm
- Tube fitting diameter (mounting plate): 42.4 mm
- External thread: M8
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.13 kg
- Balustrade system: 42.4 mm
- EAN: 5901289672276
Application
Component designed for handrail mounting in stainless steel balustrades — both internal and external. The articulated joint is particularly suitable for staircase balustrades where the handrail angle must match the stair flight gradient. The M8 external thread enables quick installation by screwing directly into the balustrade post, which reduces installation time and eliminates the need for welding.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
