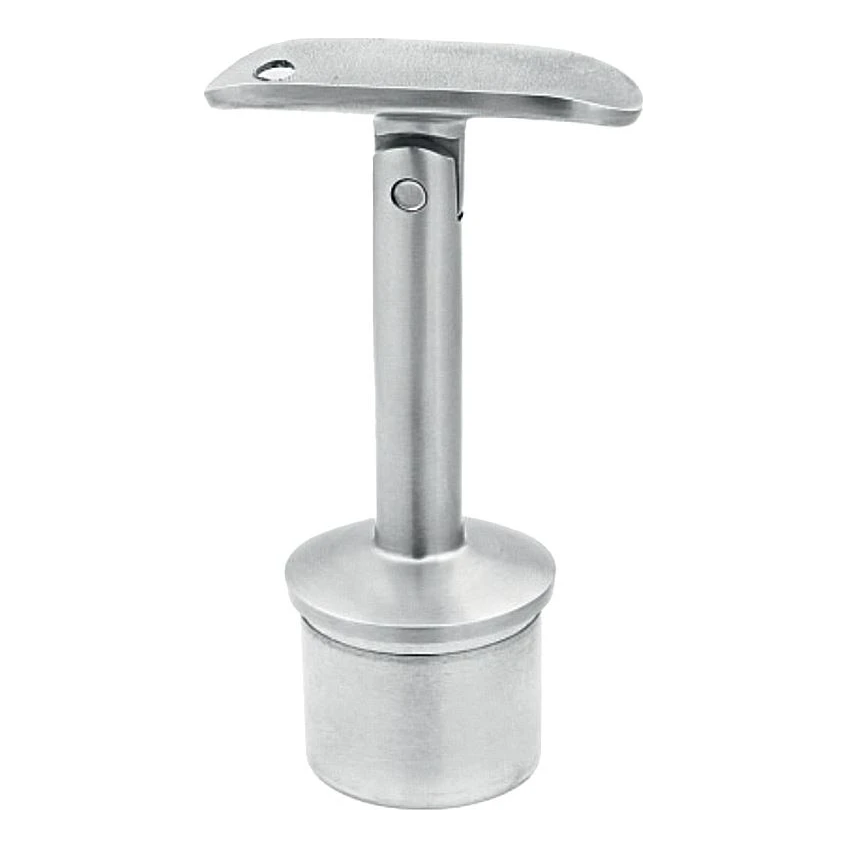

Handrail support articulated glued 42.4 mm – stainless steel AISI 304 polished
0
Description
Handrail support articulated glued 42.4 mm – stainless steel AISI 304 polished
Articulated handrail support for gluing into the post is a key structural element of stainless steel balustrades. Thanks to the articulated mechanism, it enables smooth adjustment of the handrail inclination angle, making it an ideal solution for mounting stair and inclined balustrades where the angle between the post and handrail is not perpendicular.
The bracket is designed for the Ø 42.4 mm tube system and connects the post with the handrail in a durable and aesthetic manner. The polished finish made of stainless steel AISI 304 ensures high corrosion resistance and elegant appearance, which enhances the visual qualities of the entire balustrade.

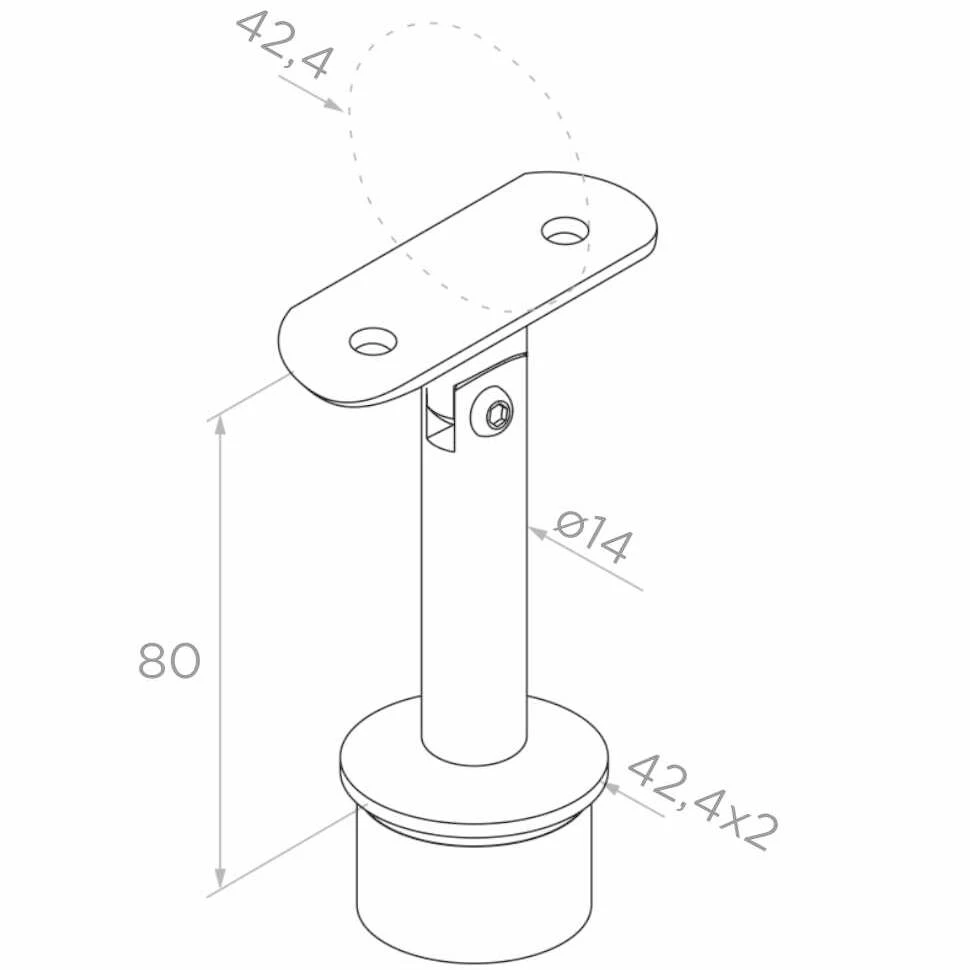

Dimensions and technical data
- Height (from base to saddle): 80 mm
- Pin diameter: Ø 14 mm
- Handrail diameter (saddle): 42.4 mm
- Post fitting: tube Ø 42.4 × 2 mm
- Material: stainless steel AISI 304
- Finish: polished
- Mounting: for gluing into post
- Connection type: articulated – handrail inclination angle adjustment
- Weight: 0.18 kg
- EAN: 5901289671842
Application and mounting
The support is mounted using the gluing method — the lower sleeve is seated inside the post tube Ø 42.4 × 2 mm using adhesive for stainless steel. The saddle at the top is fitted to the handrail with diameter 42.4 mm and allows setting any inclination angle thanks to the articulated joint with locking by allen screw. This solution works particularly well in stair balustrades, where the stair flight angle requires individual adjustment of the handrail to the posts.
Solid construction and high-quality stainless steel guarantee long-lasting durability as well as safety and stability of the entire balustrade. The product is sold individually.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
