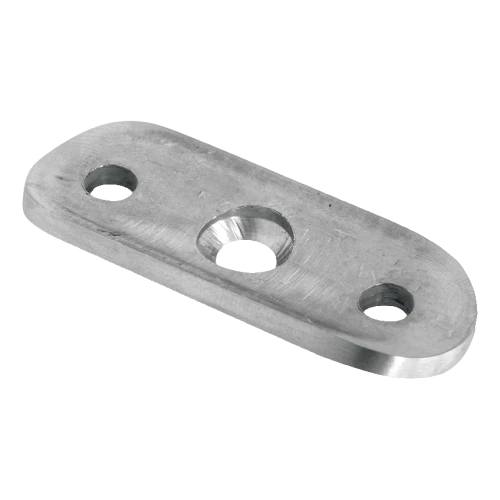

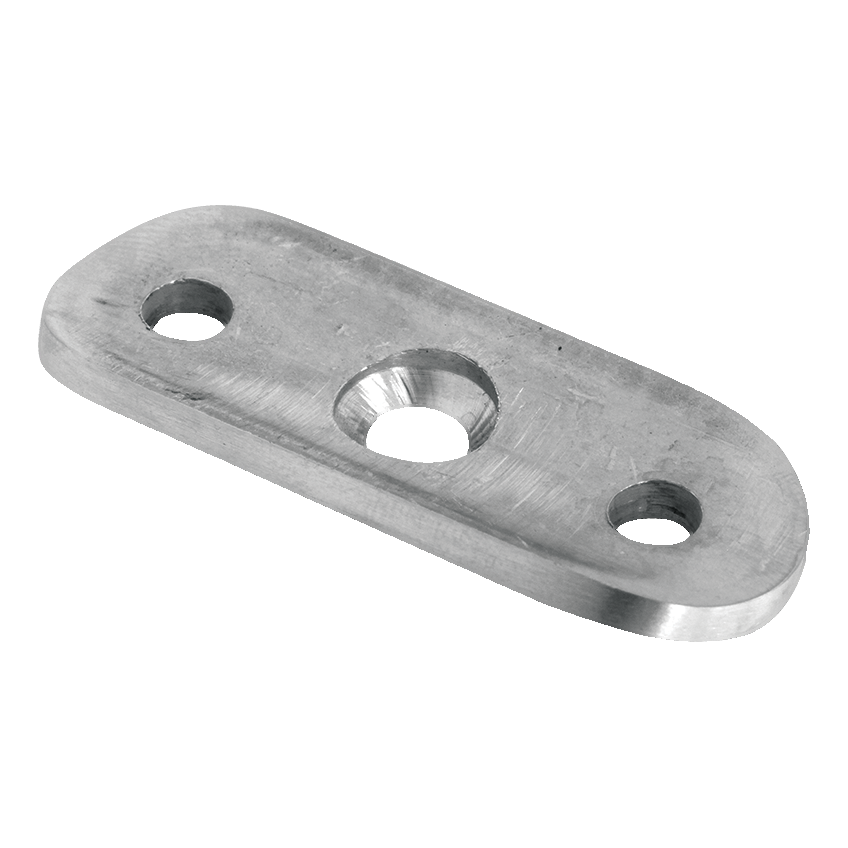

Handrail mounting plate for 48.3 mm diameter - stainless steel AISI 304, satin finish, 64x24x4 mm
0
Description
Handrail mounting plate for 48.3 mm diameter - stainless steel AISI 304, satin finish, 64x24x4 mm
Handrail mounting plate designed for balustrade systems with 48.3 mm diameter. Enables quick and secure top mounting of handrails directly to flat surfaces - e.g. to balustrade posts or other load-bearing elements. Three mounting holes (two outer ones chamfered for countersunk screws and one central) ensure stable three-point fixing and aesthetic connection appearance.
The plate is made from AISI 304 stainless steel with satin finish, which guarantees high corrosion resistance and visual consistency with other stainless steel balustrade system components. The satin surface effectively masks minor scratches and dirt that occur during operation, allowing the balustrade to maintain its aesthetic appearance for years.

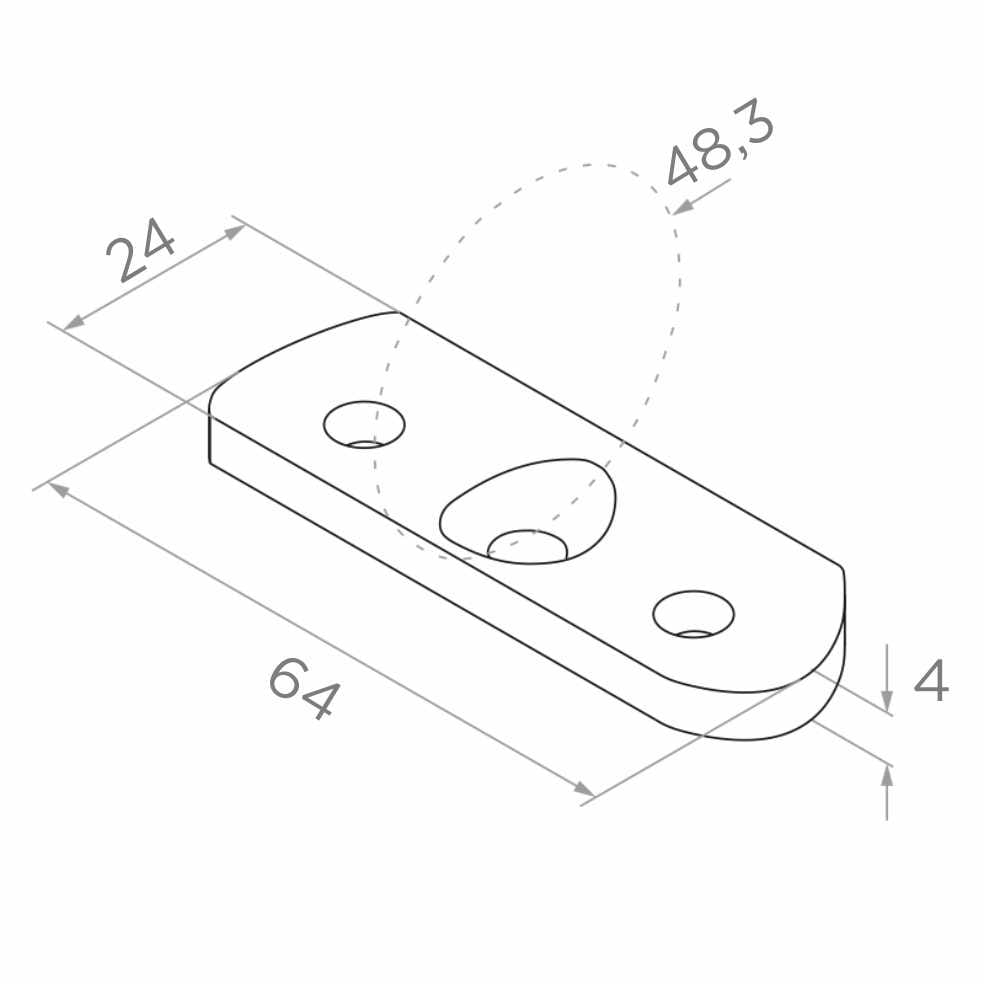

Compact dimensions (64 × 24 × 4 mm) and low weight (0.04 kg) facilitate transport and storage of large quantities of components, which is important for larger balustrade projects.
Technical Specification
- Type: flat mounting plate for handrails
- System: 48.3 mm diameter
- Length: 64 mm
- Width: 24 mm
- Thickness: 4 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.04 kg
- Mounting holes: 3 pcs (2 chamfered for countersunk heads + 1 central)
- Mounting: screw fixing from top to flat surface
- EAN: 5901289672115
The top edge of the plate features a profiled arc matched to the 48.3 mm tube diameter, ensuring precise handrail contact and eliminating the need for additional cutting or grinding on site. This makes installation time shorter and the connection more stable.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
