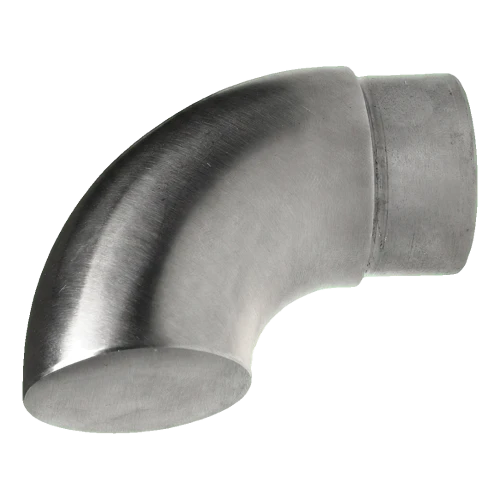

Handrail end terminal – closed elbow for 42.4mm tube AISI 304 polished
Description
Handrail end terminal – closed elbow for 42.4mm tube AISI 304 polished
Handrail end terminal in the form of a closed 90° elbow designed for tubes with diameter 42.4mm and wall thickness 2mm. The element conceals the sharp edge of cut tubing and gives the handrail an elegant, rounded shape — a ready-made finish that enhances the aesthetics of any balustrade.
The elbow is made from high-quality AISI 304 stainless steel with a polished finish, guaranteeing durability and corrosion resistance in both internal and external applications. AISI 304 steel is the standard in balustrade systems — easy to maintain, resistant to atmospheric conditions and aesthetically pleasing for years of use.
Assembly is carried out using the bonding method with anaerobic adhesive, which bonds on contact with metal and hardens after cutting off the air supply. This solution provides a permanent, invisible connection without the need for welding — significantly speeding up assembly work and eliminating the risk of discolouration on the polished surface.

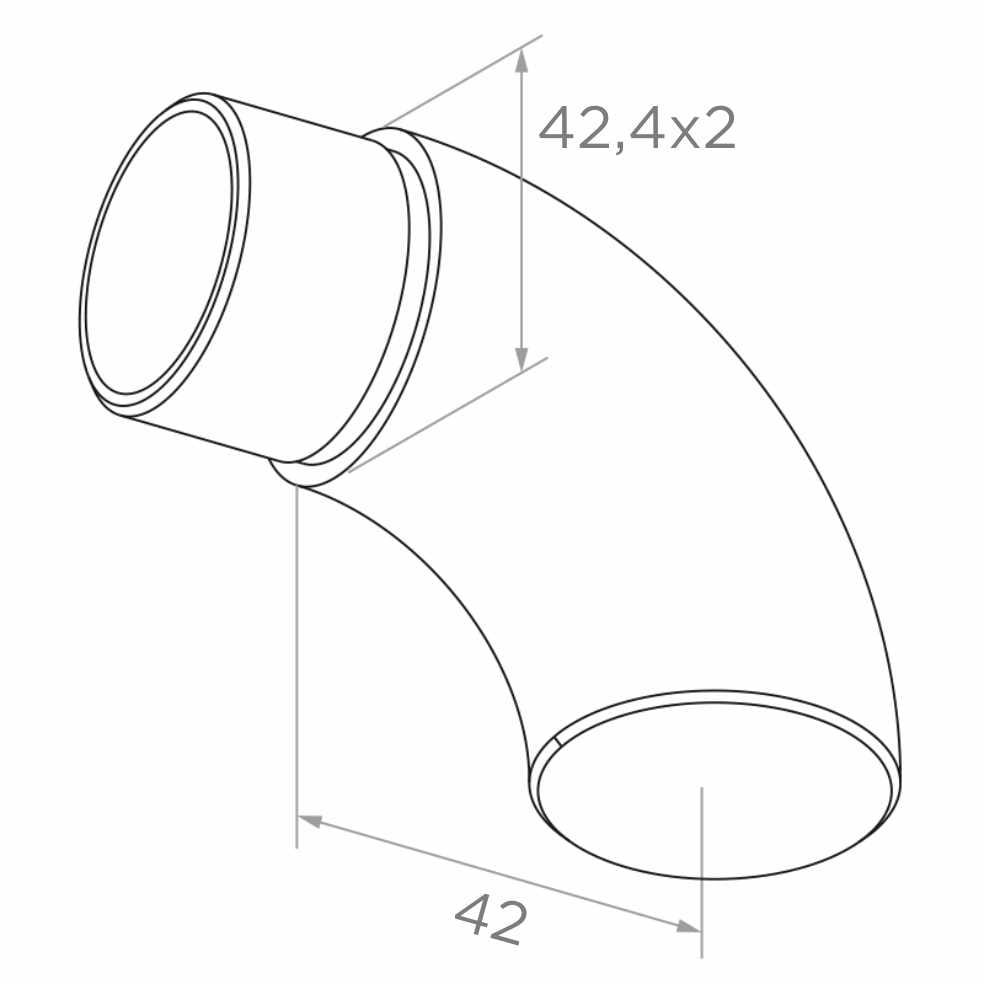

Dimensions and technical data
- Tube diameter: 42.4mm
- Tube wall thickness: 2mm
- Height (H): 42mm
- Elbow angle: 90°
- Material: AISI 304 stainless steel
- Surface finish: polished
- System: 42.4mm
- Assembly method: bonding (anaerobic adhesive)
- Weight: 0.255kg
- EAN: 5901289672610
Element dedicated to the 42.4mm balustrade system — compatible with tubes, connectors and other accessories in this standard. Ideal as an aesthetic handrail terminal in stair, balcony and terrace balustrades.
Technical data
| Mounting System | 42.4 mm |
| Material | AISI 304 |
| Finish | High Gloss |
