Handrail bracket support articulated adhesive 48.3 mm – stainless steel AISI 304 satin
Description

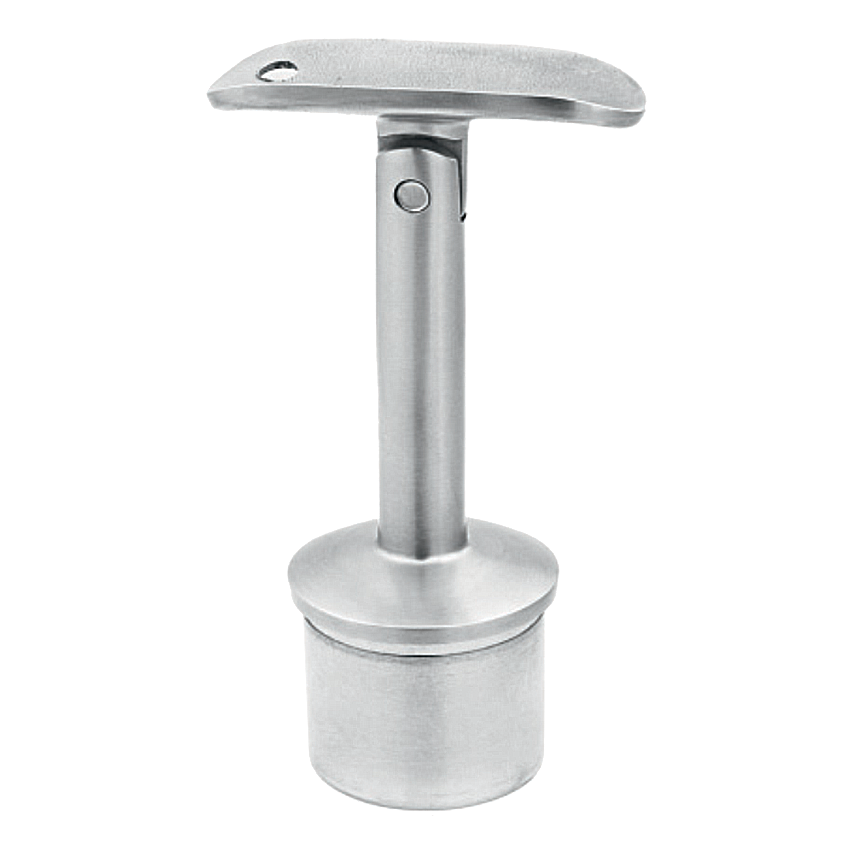

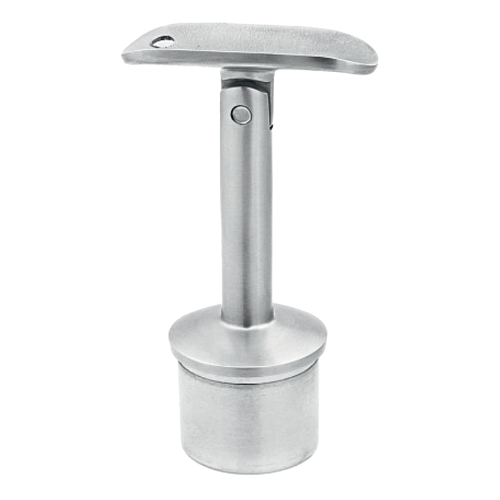

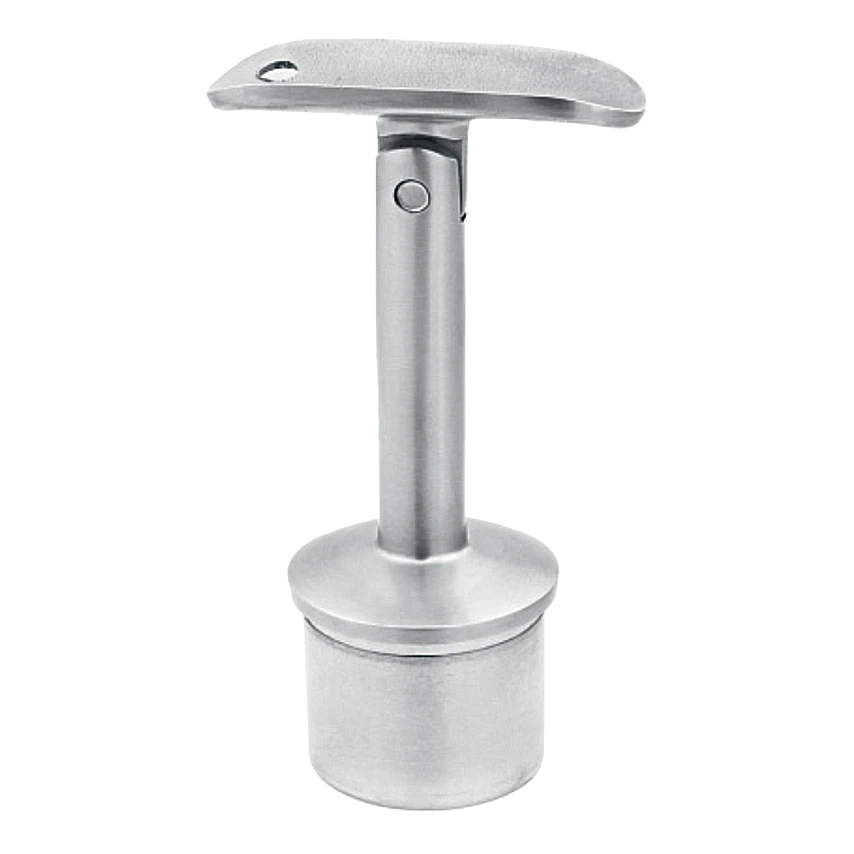

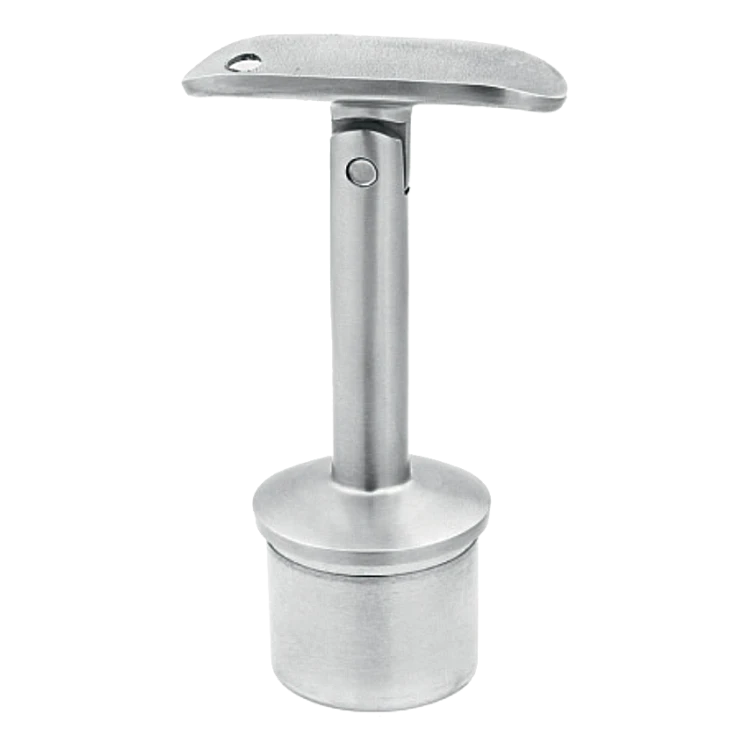

Handrail bracket support articulated adhesive 48.3 mm – stainless steel AISI 304 satin
Articulated handrail bracket for stainless steel balustrades in the 48.3 mm system — mounting element connecting post to handrail, enabling smooth angle adjustment. Perfect solution for stair and inclined balustrades where precise handrail angle adjustment to stair runs is required.
The bracket is designed for bonding into the post tube using anaerobic adhesive. The adhesive cures upon contact with metal and hardens after cutting off air supply, ensuring permanent and invisible connection without the need for welding. The articulated construction allows angle adjustment of the handrail after mounting the bracket in the post — this shortens installation time and eliminates measurement errors.
Made from stainless steel AISI 304 with satin finish — corrosion resistant and aesthetically consistent with other balustrade system components. The matt, satin finish masks minor scratches and usage marks, allowing the balustrade to maintain an elegant appearance for years.

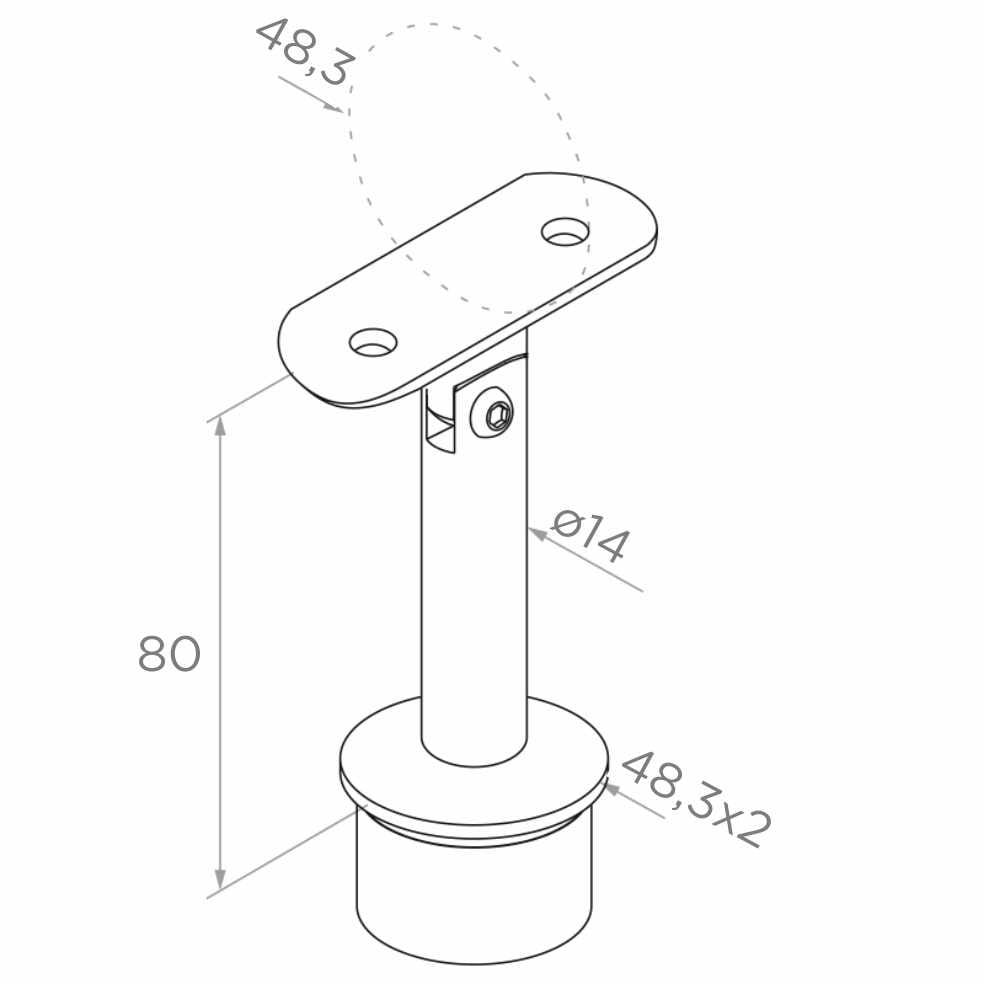

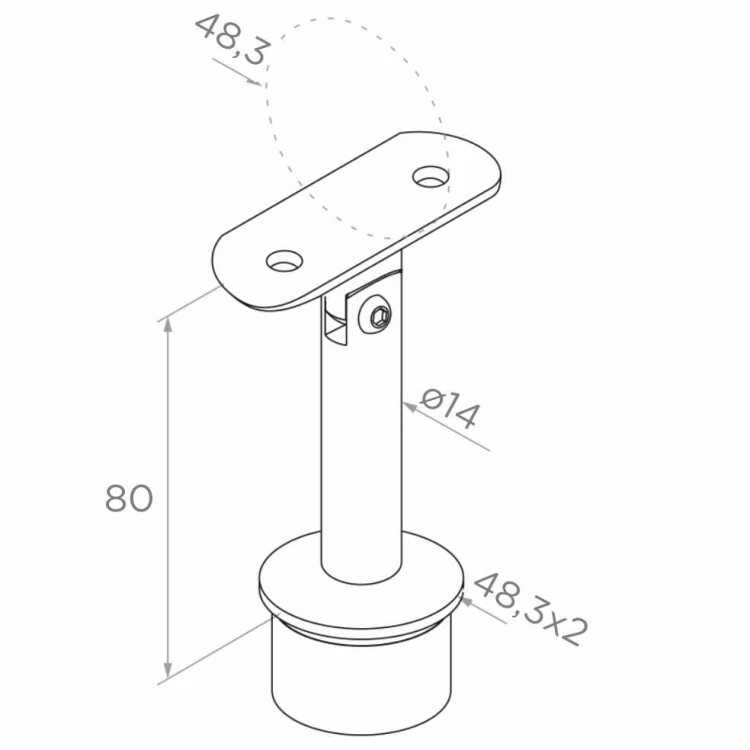

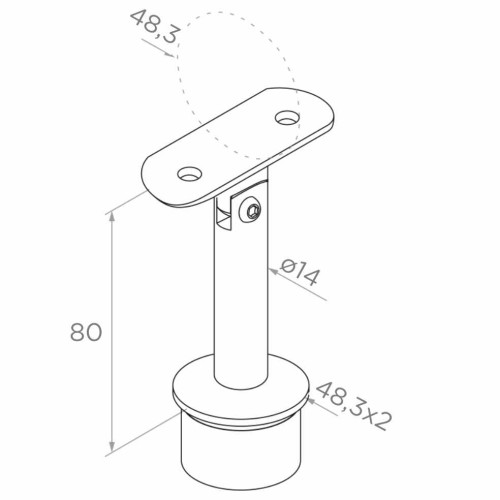

Dimensions and technical parameters
- Type: articulated adhesive
- Material: stainless steel AISI 304
- Finish: satin
- Total height (H): 80 mm
- Shaft diameter: ø14 mm
- Handrail diameter: 48.3 mm
- Post tube compatibility: 48.3 × 2 mm (diameter × wall thickness)
- Weight: 0.21 kg
- Installation: anaerobic bonding (adhesive available separately)
- EAN: 5901289671934
Application and compatibility
The bracket is dedicated to balustrade systems based on ø48.3 mm tubes. It connects the balustrade post to the handrail, with the articulated joint enabling installation on stair runs with various angles of inclination. The number of brackets in a balustrade depends on its shape, length and post spacing. The range also includes straight variants (without angle adjustment) and drive-in versions, allowing selection of the optimal connector type for specific installation conditions.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
