Handrail bracket for welding fi 70/14mm wall mounted AISI304 satin
Description

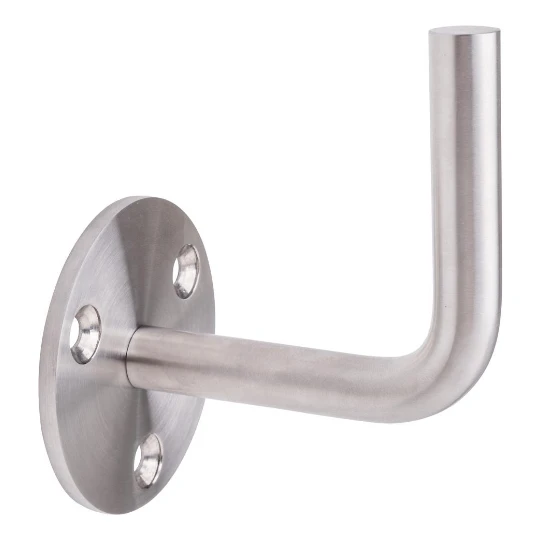

Wall handrail bracket AISI 304 fi 70/14 mm – satin, for welding
Stainless steel AISI 304 handrail bracket designed for wall mounting of balustrade handrails. Robust construction with round mounting plate diameter 70 mm and rod fi 14 mm ensures stable and durable grip mounting. Element prepared for welding — allows permanent connection to handrail, eliminating risk of loosening during years of operation.
Satin finish gives the bracket an elegant, understated appearance, perfectly complementing modern glass and steel balustrades. AISI 304 grade stainless steel guarantees high corrosion resistance, making the element suitable for both internal applications and covered external spaces.
Technical specification
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting plate diameter: 70 mm
- Rod diameter: 14 mm
- Mounting type: wall mounted
- Number of mounting holes: 3
- Connection method to handrail: welding
- Weight: 0.3 kg
- Application: universal
Installation and application
The bracket is mounted to the wall using three holes in the round mounting plate, ensuring even load distribution and stable element operation. Construction with rod bent at right angle enables convenient welding of handrail with appropriate diameter. Thanks to compact dimensions and light weight (0.3 kg) installation proceeds smoothly even with large number of mounting points.
Durability and maintenance
AISI 304 stainless steel is an exceptionally easy material to keep clean. Most dirt can be removed with a dry, soft microfibre cloth. For greasy stains, use of special stainless steel cleaning agent is recommended, which additionally creates an invisible protective coating preventing dirt from settling again. This way the bracket maintains its aesthetic appearance throughout its service life.
Technical data
| Material | AISI 304 |
| Finish | Satin |
