Hager Triple LED Signal Lamp Red Green and Orange
Leave feedback on the product
Triple LED indicator light with red, green and orange colours. Voltage 230V AC 50/60Hz, protection rating IP20. Screw terminals for cables 0.75-10 mm², dimensions 62x83x17.5 mm. RoHS compliant.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] lampki-sygnalizacyjne #100
- Indicator Light Colour multicolour
- Brand HAGER
Description

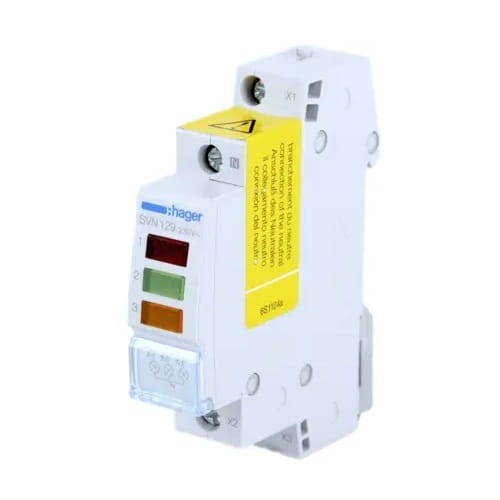

Triple LED indicator light red green and orange SVN129 HAGER
Triple LED indicator light red green and orange SVN129 by HAGER shows the activity and operation of electrical installations.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated operational voltage Ue (AC) | 230 V |
| Rated frequency | 50 / 60 Hz |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Total power loss at rated current | 0.8 W |
| Tightening torque | 1.7 Nm |
| Flexible conductor cross-section (stranded) in terminal | 0.75 / 6 mm² |
| Solid conductor cross-section (wire) in terminal | 0.75 / 10 mm² |
| Connection type | screw terminal |
| Degree of protection | IP20 |
| Dimensions | 62 x 83 x 17.5 mm |
| Light source type | LED |
| Colour | red, green and orange |
| European RoHS directive | compliant |
| Pollution degree according to IEC 60664 / IEC 60947-2 | 3 |
