Hager Overcurrent circuit breaker C 50A 3P 6kA
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.384 kg
Price / pcs.:
excl. shipping costs
product unavailable
add to wish list
* - Field mandatory
Description

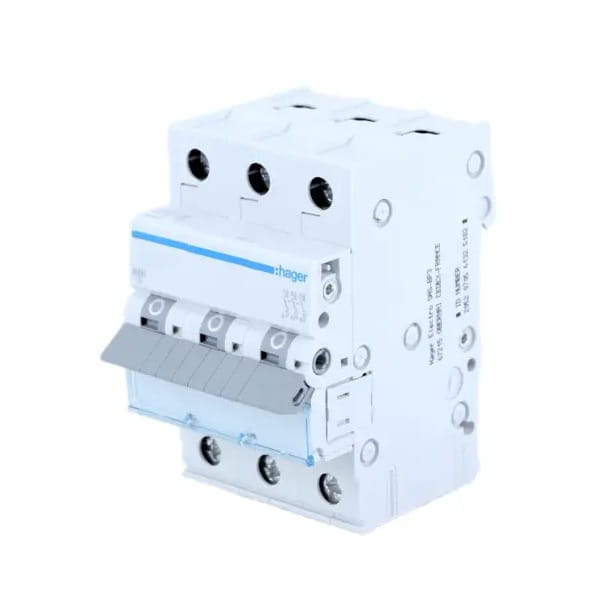

Hager Overcurrent circuit breaker C 50A 3P 6kA
Overcurrent circuit breaker C 50A 3P 6kA MCN350E by Hager, also known as an installation circuit breaker, it is used to protect cables and wires from excessive loads and short circuits.
It is used in both the residential and commercial sectors. This circuit breaker can be used repeatedly and offers higher sensitivity than standard fuses. The Type C overcurrent circuit breaker is distinguished by its delayed action and is designed to protect power supply installations with small capacities, up to a few kilowatts.
SPECIFICATION
Manufacturer
HAGER
Number of poles protected
3
Number of poles
3 P
Type of overcurrent circuit breaker
C
Rated short-circuit breaking capacity Icn
6 kA
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole according to the standard
9 W
Total power loss for rated current
16.3 W
Power loss per pole for rated current
6.4 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input / output terminal capacitance for rigid wire (wire)
1/25 mm²
Input / output terminal capacitance for flexible wire (wire)
1/16 mm²
Degree of protection
IP20
Dimensions
70 x 83 x 52.5 mm
Standard
EN 60898-1
RoHs Directive
Compatible
Degree of pollution in accordance with IEC 60664 / IEC 60947-2
2
Available Configuration
Technical data
| Trip characteristic | C |
| Circuit breaker type | overcurrent |
| Rated current [A] | 50A |
| Number of poles | 3P |
| Breaking capacity [kA] | 6 kA |
| Brand | HAGER |
