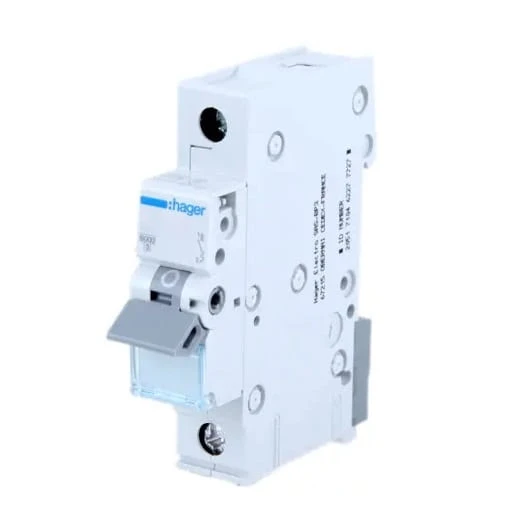

Hager Overcurrent circuit breaker C 2A 1P 6kA

Go to Product feedback

Overcurrent circuit breaker C 2A 1P 6kA MCN102E Hager is a reliable protective device for electrical installations.

Go to full description
with VAT without VAT
Price €12.05
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wylaczniki-nadpradowe-i-silnikowe #90

  • Trip characteristic C
  • Circuit breaker type overcurrent
  • Rated current [A] 2A
  • Number of poles 1P
  • Breaking capacity [kA] 6 kA
  • Brand HAGER

Description

Hager Overcurrent circuit breaker C 2A 1P 6kA

Overcurrent circuit breaker C 2A 1P 6kA MCN102E Hager is a reliable protective device for electrical installations.

Single-pole, with a rated current of 2A and a short-circuit capacity of 6kA, it effectively protects cables and wires against overloads and short circuits. Its type C characteristics make it ideal for residential and commercial applications, particularly for protecting low-power circuits.

Key features and functions:

  • Installation protection: Protects cables and wires from the effects of overloads and short circuits.
  • Repeated use: Adapted for repeated tripping, unlike disposable fuses.
  • Increased sensitivity: Offers better protection than traditional fuse links.
  • C characteristic: Delayed action, ideal for circuits with low power up to a few kilowatts.

Applications:

  • Residential electrical installations
  • Commercial buildings with low power requirements
  • Protection of lighting and socket circuits
  • Protection of equipment with low starting power

Advantages:

  • Reliability: High-quality workmanship ensures long-lasting protection.
  • Versatility: Suitable for a variety of residential and commercial applications.
  • Ease of installation: Standard design allows for quick installation in switchgear.
  • Safety: Effective protection against overloads and short circuits.

SPECIFICATION

Manufacturer
HAGER
Characteristics
C
Rated current [A]
2A
Switching capacity [kA]
6kA
Number of poles
1
Number of modules
1
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole in accordance with standard
3 W
Total power loss for rated current
1,3 W
Power loss per pole for rated current
1,3 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2,8 Nm
Connection type
With screw
Input/output terminal capacity for rigid wire (wire)
1/25 mm²
Input/output terminal capacity for flexible wire (cable)
1/16 mm²
Degree of protection
IP20
Standard
EN 60898-1
RoHs Directive
Compatible
Degree of contamination according to IEC 60664 / IEC 60947-2
2
Dimensions
70 x 83 x 52,5 mm
Packaging weight
1,481 kg
Additional information
Can be connected by means of comb rails, cage terminals: - wire up to 25 mm2

Available Configuration

Product code

Catalogue no.
EAN
Model
GPV-401-231
next arrow image
MCN102E/HAG
3250614333668
MCN102E
