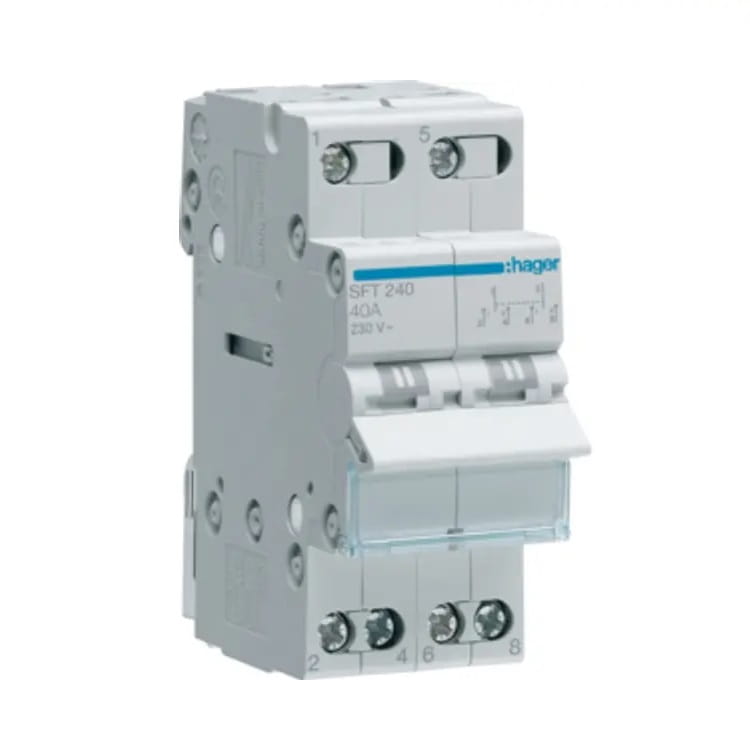

Hager Modular installation switch I-0-II (1-0-2) common point from top 2P 40A 230V AC

Go to Product feedback

Modular installation switch I-0-II (1-0-2) common point from top 2P 40A 230VAC SFT240 HAGER allows simple and safe switching of power and control circuits in emergency situations.

Go to full description
with VAT without VAT
Price €27.13
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Hager Modular installation switch I-0-II (1-0-2) common point from top 2P 40A 230V AC

Modular installation switch I-0-II (1-0-2) common point from top 2P 40A 230VAC SFT240 HAGER allows simple and safe switching of power and control circuits in emergency situations.

SPECIFICATION

Manufacturer
HAGER
Number of poles
2 P
Rated switching voltage Ue (AC)
230 V
Rated frequency
50 / 60 Hz
Rated insulation voltage Ui
440 V
Voltage input type 1
AC
Rated withstand surge voltage Uimp
4000 V
AC21 current carrying capacity in category A
40 A
AC21 current carrying capacity in category B
40 A
Permissible current carrying capacity AC22 category A
40 A
Permissible AC22 current category B
40 A
Short-circuit current with gl-gG fuses
600 A
Closing capacity at 400 V in AC23A
846 A
Rated short term residual current 1s
0,6 kA
External enclosure thermal current
40 A
Total power loss for rated current
4,2 W
Power loss per pole for rated current
2,1 W
Electrical life under rated load in operating cycles (AC21)
25 000
Electrical life under rated load in operating cycles (AC22)
25 000
Mechanical strength (number of cycles)
200 000
Tightening torque
1,8 Nm
Cross-section of flexible wire (cable) in a terminal
1,5 / 10 mm²
Cross-section of rigid conductor (wire) in a terminal
1,5 / 16 mm²
Connection type
With screw
Number of NO/NC contacts
2
Degree of protection
IP20
Dimensions
70 x 83 x 35 mm
Standard
IEC 60947-3
European directive RoHs
Compatible
Degree of contamination according to IEC 60664 / IEC 60947-2
2

Available Configuration

Product code

Catalogue no.
EAN
Model
GPV-401-212
next arrow image
SFT240/HAG
3250615510921
SFT240
