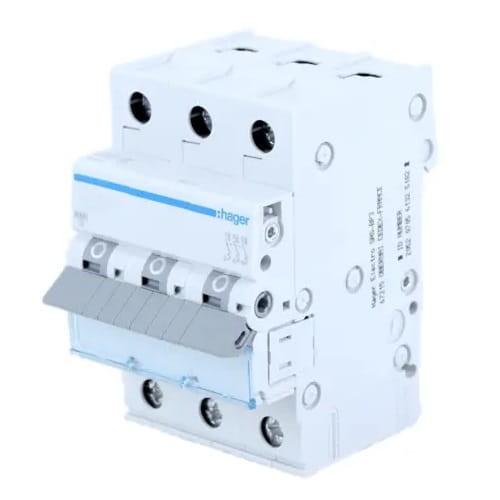

Hager MCB Type B 20A 3-Pole 6kA
Leave feedback on the product
Type B MCB miniature circuit breaker with 20A rated current and 6kA breaking capacity. 3-pole design with screw terminals for 1-25 mm² conductors. Protection against short circuits and overloads in accordance with EN 60898-1 standard.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 20A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand HAGER
Description
Hager Miniature Circuit Breaker B 20A 3P 6kA
Miniature circuit breaker MCB B 20A 3P 6kA MBN320E HAGER, also known as an installation circuit breaker, is a key component of an electrical system.
It protects the circuit by automatically interrupting current flow when its intensity exceeds established safety limits. It provides protection against the effects of short circuits and overloads up to 6kA. The MBN320E type B miniature circuit breaker features delayed tripping and is designed to protect devices less sensitive to thermal overloads that require low starting currents.
MBN320E circuit breaker construction:
- 1 - operating lever
- 2 - latch
- 3 - fixed contact and moving contact
- 4 - connection terminals
- 5 - thermal bimetallic release (overload)
- 6 - adjustment screw
- 7 - electromagnetic release (short circuit)
- 8 - arc chute (for arc extinguishing)
SPECIFICATION
| Parameter | Value |
|---|---|
| Manufacturer | HAGER |
| Miniature circuit breaker type | B |
| Rated current [A] | 20A |
| Breaking capacity [kA] | 6kA |
| Number of poles | 3 P |
| Number of protected poles | 3 |
| Rated short-circuit breaking capacity Icn | 6 kA |
| Rated operational voltage Ue | 230 / 400 V |
| Rated frequency | 50 / 60 Hz |
| Supply voltage type | AC |
| Rated insulation voltage | 500 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Rated short-circuit breaking capacity 230 V 50 Hz | 6 kA |
| Rated service short-circuit breaking capacity Ics | 6 kA |
| Maximum power loss per pole according to standard | 4.5 W |
| Total power loss at rated current | 8.9 W |
| Power loss per pole at rated current | 3.1 W |
| Electrical endurance (number of cycles) | 4000 x |
| Mechanical endurance (number of cycles) | 20000 x |
| Tightening torque | 2.8 Nm |
| Connection type | screw type |
| Input/output terminal capacity for rigid conductor (wire) | 1/25 mm² |
| Input/output terminal capacity for flexible conductor (stranded) | 1/16 mm² |
| Standard | EN 60898-1 |
| Degree of protection | IP20 |
| Dimensions | 70 x 83 x 52.5 mm |
| Additional information | connection possible using comb busbars, cage terminals: - wire up to 25 mm2 |
