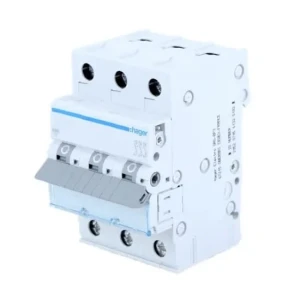

Hager MCB Type B 10A 3-Pole 6kA
Leave feedback on the product
3-pole MCB | 10A rated current | Type B characteristic. Miniature circuit breaker with 6kA breaking capacity, 230/400V AC voltage rating. Screw terminals up to 25mm², protection degree IP20.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 10A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand HAGER
Description

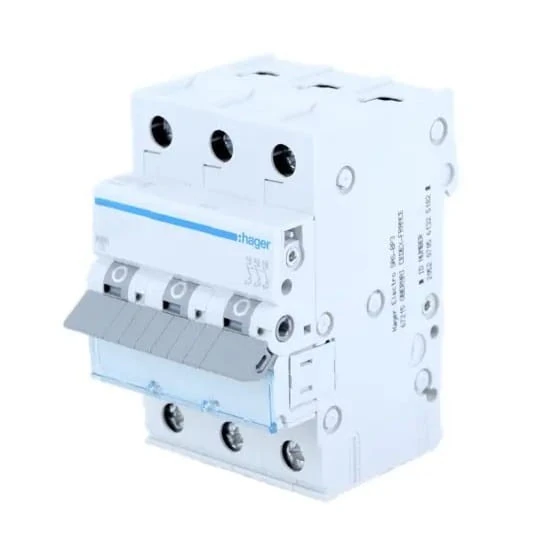

Hager Miniature Circuit Breaker B 10A 3P 6kA
Hager MBN310E miniature circuit breaker (MCB) B 10A 3P 6kA, also known as an installation circuit breaker, plays a crucial role in electrical systems by providing circuit protection through automatic disconnection when the current in the circuit exceeds safe permissible values.
This device effectively protects the installation against overcurrent resulting from overloads and short circuits, ensuring safe operation up to 6kA. The MBN316E model with type B characteristic features delayed tripping, making it particularly suitable for protecting devices not susceptible to thermal overloads and those generating low inrush currents.
- CIRCUIT BREAKER CONSTRUCTION
- operating lever
- latch
- fixed contact and moving contact
- connection terminals
- thermal bimetallic trip unit (overload)
- adjustment screw
- electromagnetic trip unit (short circuit)
- arc chute (for arc extinction)
SPECIFICATION
| Parameter | Value |
|---|---|
| series and type | Miniature circuit breaker MCB B 10A 3P 6kA MBN310E HAGER |
| number of protected poles | 3 |
| number of poles | 3 P |
| overcurrent circuit breaker type | B |
| rated short-circuit breaking capacity Icn | 6 kA |
| rated operational voltage Ue | 230 / 400 V |
| rated frequency | 50 / 60 Hz |
| supply voltage type | AC |
| rated insulation voltage Ui | 500 V |
| rated impulse withstand voltage Uimp | 4000 V |
| rated short-circuit breaking capacity 230 V 50 Hz | 6 kA |
| rated service short-circuit breaking capacity Ics | 6 kA |
| maximum power loss per pole according to standard | 3 W |
| total power loss at rated current | 5.8 W |
| power loss per pole at rated current | 2 W |
| electrical endurance (number of cycles) | 4000 x |
| mechanical endurance (number of cycles) | 20000 x |
| tightening torque | 2.8 Nm |
| connection type | screw terminal |
| input/output terminal capacity for solid conductor (wire) | 1/25 mm² |
| input/output terminal capacity for flexible conductor (strand) | 1/16 mm² |
| standard | EN 60898-1 |
| degree of protection | IP20 |
| dimensions | 70 x 83 x 52.5 mm |
| Package weight | 0.288 kg |
| Additional information | connection possible using busbar combs, cage terminals: - wire up to 25 mm² |
