Hager MCB C 20A 3P 6kA Circuit Breaker
Leave feedback on the product
MCB C 20A 3P miniature circuit breaker with 6kA breaking capacity for cable protection against overloads. Rated voltage 230/400V AC, frequency 50/60Hz. Protection degree IP20, mechanical endurance 20,000 cycles.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic C
- Circuit breaker type overcurrent
- Rated current [A] 20A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand HAGER
Description

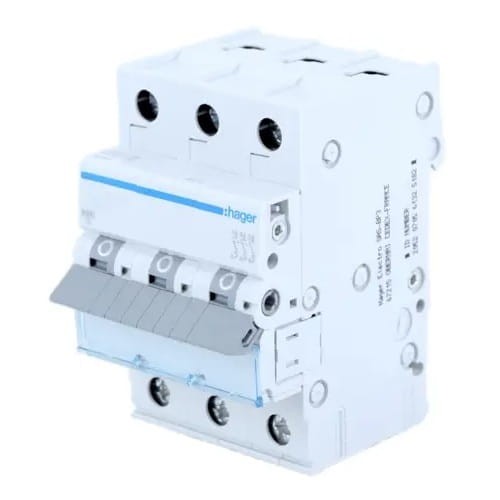

Hager Miniature Circuit Breaker C 20A 3P 6kA
MCB miniature circuit breaker C 20A 3P 6kA MCN320E by HAGER, also known as an installation circuit breaker, is designed to protect cables and conductors against overloads and short circuits.
It is used in both residential and commercial sectors. This circuit breaker can be used multiple times and offers higher sensitivity than standard fuse links. Type C miniature circuit breaker features delayed tripping and is designed to protect low-power supply installations up to several kilowatts.
SPECIFICATION
| Parameter | Value |
|---|---|
| Manufacturer | HAGER |
| Miniature circuit breaker type | C |
| Rated current | 20A |
| Rated short-circuit breaking capacity Icn | 6kA |
| Number of poles | 3 P |
| Number of protected poles | 3 |
| Rated operational voltage Ue | 230 / 400 V |
| Rated frequency | 50 / 60 Hz |
| Supply voltage type | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Rated short-circuit breaking capacity at 230 V 50 Hz | 6 kA |
| Rated service short-circuit breaking capacity Ics | 6 kA |
| Maximum power loss per pole according to standard | 4.5 W |
| Total power loss at rated current | 8.9 W |
| Power loss per pole at rated current | 3.1 W |
| Electrical endurance (number of cycles) | 4000 x |
| Mechanical endurance (number of cycles) | 20000 x |
| Tightening torque | 2.8 Nm |
| Connection type | screw terminal |
| Input/output terminal capacity for solid conductor (wire) | 1/25 mm² |
| Input/output terminal capacity for flexible conductor (strand) | 1/16 mm² |
| Degree of protection | IP20 |
| Dimensions | 70 x 83 x 52.5 mm |
| Standard | EN 60898-1 |
| RoHS Directive | compliant |
| Pollution degree according to IEC 60664 / IEC 60947-2 | 2 |
| Additional information | connection possible using comb busbars, cage terminals: - wire up to 25 mm² |
