Hager MCB C 16A 3P 6kA circuit breaker
Leave feedback on the product
MCB C 16A 3-pole circuit breaker with 6kA breaking capacity by HAGER for cable protection against short circuits and overloads. Rated voltage 230/400V AC, Type C with delayed tripping characteristic.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic C
- Circuit breaker type overcurrent
- Rated current [A] 16A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand HAGER
Description

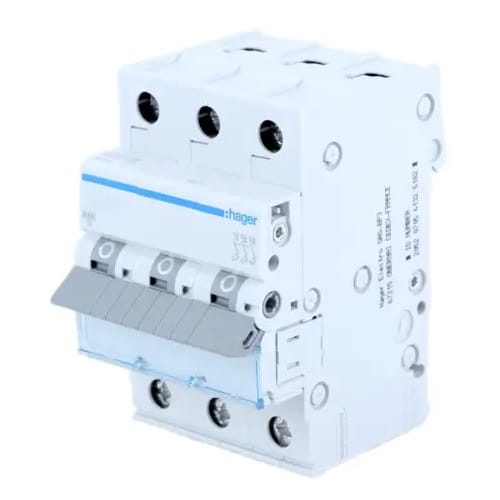

Hager Miniature Circuit Breaker C 16A 3P 6kA
MCB miniature circuit breaker C 16A 3P 6kA MCN316E by HAGER, also known as an installation circuit breaker, provides protection for cables and conductors against the effects of short circuits and overloads.
It is used in both residential and commercial sectors. This circuit breaker can be used repeatedly and offers higher sensitivity than standard fuses. Type C circuit breakers feature delayed tripping characteristics and are designed to protect low-power supply installations up to several kilowatts.
SPECIFICATION
| Parameter | Value |
|---|---|
| Manufacturer | HAGER |
| Circuit breaker type | C |
| Rated current [A] | 16A |
| Breaking capacity [kA] | 6kA |
| Number of protected poles | 3 |
| Number of poles | 3 P |
| Rated short-circuit breaking capacity Icn | 6 kA |
| Rated operational voltage Ue | 230 / 400 V |
| Rated frequency | 50 / 60 Hz |
| Supply voltage type | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Rated short-circuit breaking capacity at 230 V 50 Hz | 6 kA |
| Rated service short-circuit breaking capacity Ics | 6 kA |
| Maximum power loss per pole according to standard | 3.5 W |
| Total power loss at rated current | 6.99 W |
| Power loss per pole at rated current | 2.14 W |
| Electrical endurance (number of cycles) | 4000 x |
| Mechanical endurance (number of cycles) | 20000 x |
| Tightening torque | 2.8 Nm |
| Connection type | screw terminal |
| Input/output terminal capacity for solid conductor (wire) | 1/25 mm² |
| Input/output terminal capacity for flexible conductor (stranded) | 1/16 mm² |
| Degree of protection | IP20 |
| Dimensions | 70 x 83 x 52.5 mm |
| Standard | EN 60898-1 |
| RoHS Directive | compliant |
| Pollution degree according to IEC 60664 / IEC 60947-2 | 2 |
| Additional information | connection possible using busbar combs, cage terminals: - wire up to 25 mm² |
