Hager MCB 1P 16A B 6kA
product unavailable
add to wish list
Description

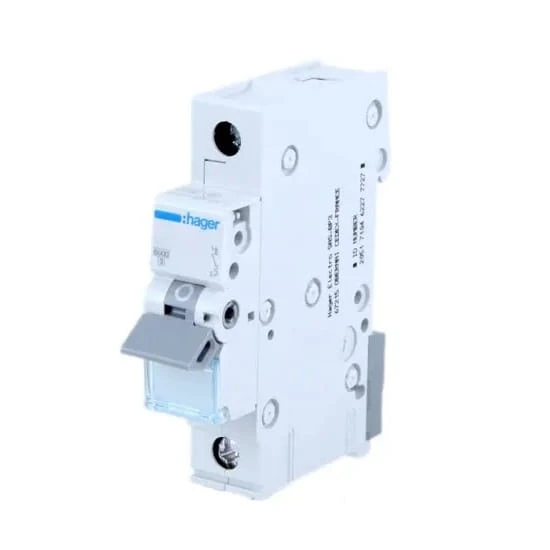

Hager Miniature Circuit Breaker B 16A 1P 6kA
MCB miniature circuit breaker B 16A 1P 6kA MBN116E by Hager, also known as an installation circuit breaker, plays a crucial role in electrical installations, ensuring safety by interrupting circuit continuity when current exceeds the permissible value.
Model MBN116E provides protection against the effects of excessive overcurrents (overloads and short circuits) up to 6kA. It features delayed tripping (3-5 times the tripping current), ensuring effective protection of devices insensitive to thermal overloads and with low starting currents.
MBN116E circuit breaker construction:
- 1 - operating lever
- 2 - latch
- 3 - fixed contact and moving contact
- 4 - connection terminals
- 5 - thermal-bimetallic trip unit (overload)
- 6 - adjustment screw
- 7 - electromagnetic trip unit (short circuit)
- 8 - arc chute (for arc extinction)
Specification
| Parameter | Value |
|---|---|
| Rated current In | 16 A |
| MCB type | B |
| Rated short-circuit breaking capacity Icn | 6 kA |
| Number of poles | 1 P |
| Number of modules | 1 |
| Rated operational voltage Ue (AC) | 230/400 V |
| Rated insulation voltage Ui | 500 V |
| Rated frequency | 50/60 Hz |
| Connection type | screw terminal |
| Tightening torque | 2.8Nm |
| Total power loss at rated current | 2.44 W |
| Electrical endurance (number of cycles) | 4000 |
| Mechanical endurance (number of cycles) | 20000 |
| Operating temperature | -25 to 60 °C |
| Storage temperature | -25 to 80 °C |
| Product height | 83 mm |
| Product width | 17.5 mm |
| Product depth | 70 mm |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 16A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | HAGER |
