Hager Circuit Breaker B 16A 3P 6kA
Leave feedback on the product
MCB 3P B16A miniature circuit breaker with 6kA breaking capacity. Type B characteristic with delayed tripping, voltage 230/400V AC, frequency 50/60Hz. Protection class IP20, screw terminals 1-25mm².
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 16A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand HAGER
Description

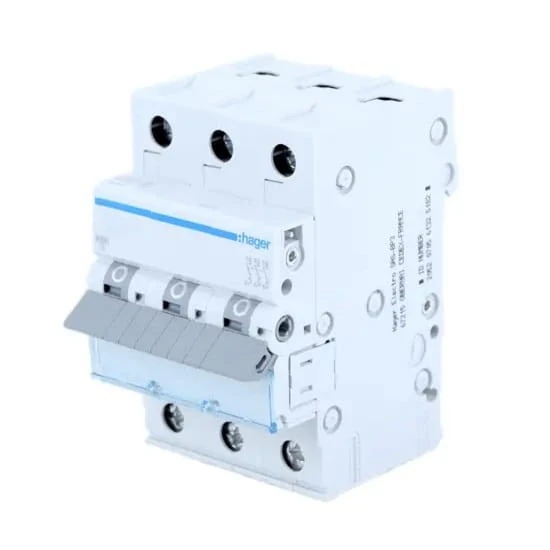

Hager Miniature Circuit Breaker B 16A 3P 6kA
The MCB miniature circuit breaker B 16A 3P 6kA MBN316E by Hager, also known as an installation circuit breaker, plays a crucial role in the electrical system by providing circuit protection through automatic disconnection when the current in the circuit exceeds safe permissible values.
This device effectively protects the installation against excessive current resulting from overloads and short circuits, ensuring safe operation up to 6kA. The MBN316E model with type B characteristic features delayed tripping, making it particularly suitable for protecting equipment not susceptible to thermal overloads and devices that generate low inrush currents.
- CIRCUIT BREAKER CONSTRUCTION
- operating lever
- latch
- fixed contact and moving contact
- connection terminals
- thermal bimetallic trip (overload)
- adjustment screw
- electromagnetic trip (short circuit)
- arc chute (for arc extinction)
SPECIFICATION
| Parameter | Value |
|---|---|
| series and type | Miniature circuit breaker MCB B 16A 3P 6kA MBN316E HAGER |
| number of protected poles | 3 |
| number of poles | 3 P |
| overcurrent circuit breaker type | B |
| rated short-circuit breaking capacity Icn | 6 kA |
| rated operational voltage Ue | 230 / 400 V |
| rated frequency | 50 / 60 Hz |
| supply voltage type | AC |
| rated insulation voltage Ui | 500 V |
| rated impulse withstand voltage Uimp | 4000 V |
| rated short-circuit breaking capacity 230 V 50 Hz | 6 kA |
| rated service short-circuit breaking capacity Ics | 6 kA |
| maximum power loss per pole according to standard | 3.5 W |
| total power loss for rated current | 8.2 W |
| power loss per pole for rated current | 2.8 W |
| electrical endurance (number of cycles) | 4000 x |
| mechanical endurance (number of cycles) | 20000 x |
| tightening torque | 2.8 Nm |
| connection type | screw type |
| input/output terminal capacity for solid conductor (wire) | 1/25 mm² |
| input/output terminal capacity for flexible conductor (stranded) | 1/16 mm² |
| standard | EN 60898-1 |
| degree of protection | IP20 |
| dimensions | 70 x 83 x 52.5 mm |
| package weight | 0.305 kg |
