Drive-in anchor L=350mm with galvanically galvanised steel for cables Ø8-10mm, with tensioning lock and M10×30 screw.
Product code: 000-162
Description
Drive-in anchor with lock L=350 mm – galvanised steel
Drive-in anchor with lock is a reliable component for lightning protection and earthing installations, designed for securing round and flat conductors with a diameter of Ø8–10 mm. Thanks to its robust construction made of galvanised steel, it ensures durable and stable wire routing in the ground.
The anchor with a length of 350 mm is driven directly into the ground, and the integrated lock securely holds the tension wire. This solution significantly speeds up installation — it requires no drilling or additional brackets. Simply drive in the anchor and secure the wire.
Superior corrosion protection
Steel subjected to galvanic zinc plating provides effective and long-lasting corrosion protection. The zinc coating sealed with polymer guarantees resistance even in demanding weather conditions, which translates into many years of trouble-free operation.

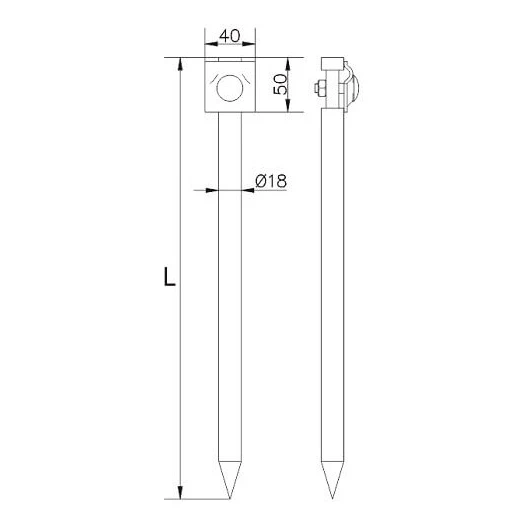

Technical data
- Material: galvanised steel
- Conductor range: round/flat Ø8–10 mm
- Bolt: 1× M10×30
- Bolt/nut material: galvanised steel
- Length: L = 350 mm
- Clamp width: 40 mm
- Shaft diameter: Ø18 mm
Application
The drive-in anchor with lock is ideal for routing down conductors and earthing conductors along foundations, in gardens and on green areas. The lock eliminates the risk of wire slipping out, ensuring a secure and permanent connection along the entire installation route.
