Glass point support for 6-12mm glass fi 30/13/M8x40 AISI304 system 42.4 satin
Description

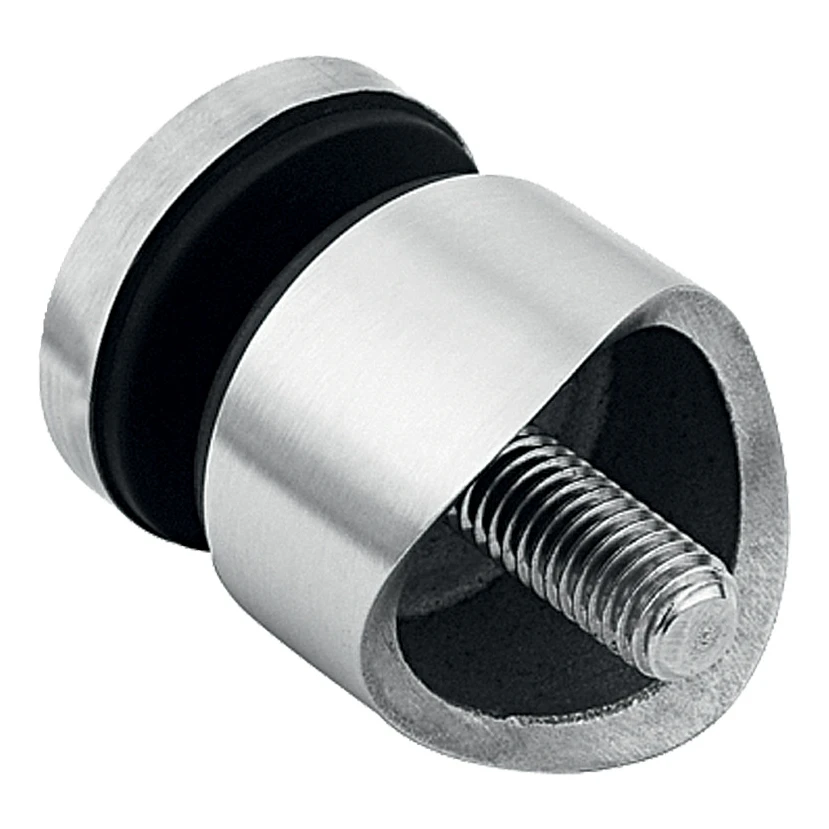

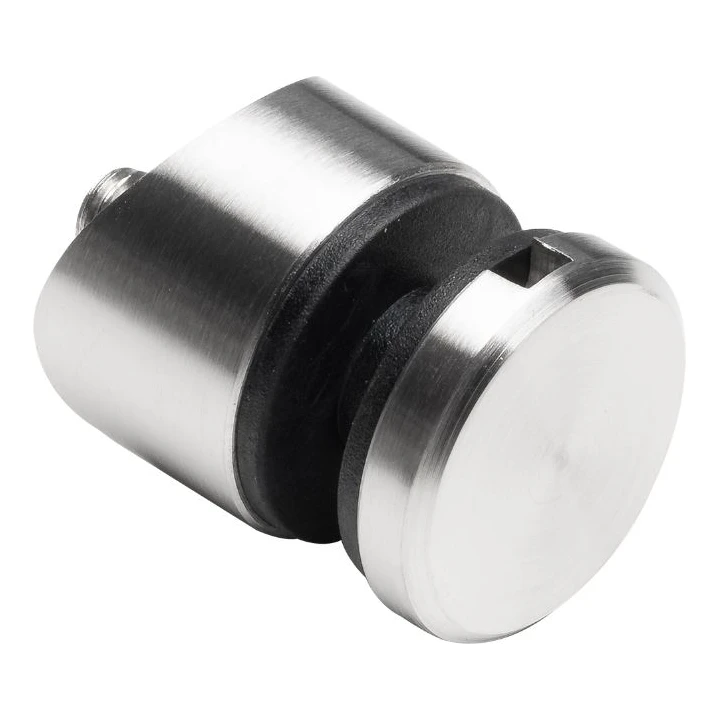

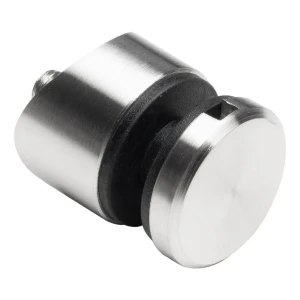

Glass point support fi 30 mm – rotula M8 for 42.4 mm post, satin
Glass point support (rotula) with diameter 30 mm is a professional fastening designed for mounting glass panels on posts with diameter 42.4 mm. Made from stainless steel AISI 304 in satin finish, it provides durable and aesthetic glass support in balustrades, screens and glass installations.
The rotula perfectly supports and stabilises the mounted glass panel. Thanks to compression gaskets included in set the support provides flexible and safe clamping, protecting glass edges from damage. The glass thickness adjustment range is 6–18 mm, which provides great versatility of application — from thin decorative panels to thicker balustrade panels. The mounting element is equipped with M8 thread, which guarantees secure and stable fastening to the supporting structure.
AISI 304 stainless steel with INOX anti-corrosion protection provides high resistance to atmospheric conditions, moisture and chemical factors. The satin finish gives the support an elegant, matt appearance that harmoniously matches modern steel and glass constructions — both inside buildings and outdoors.

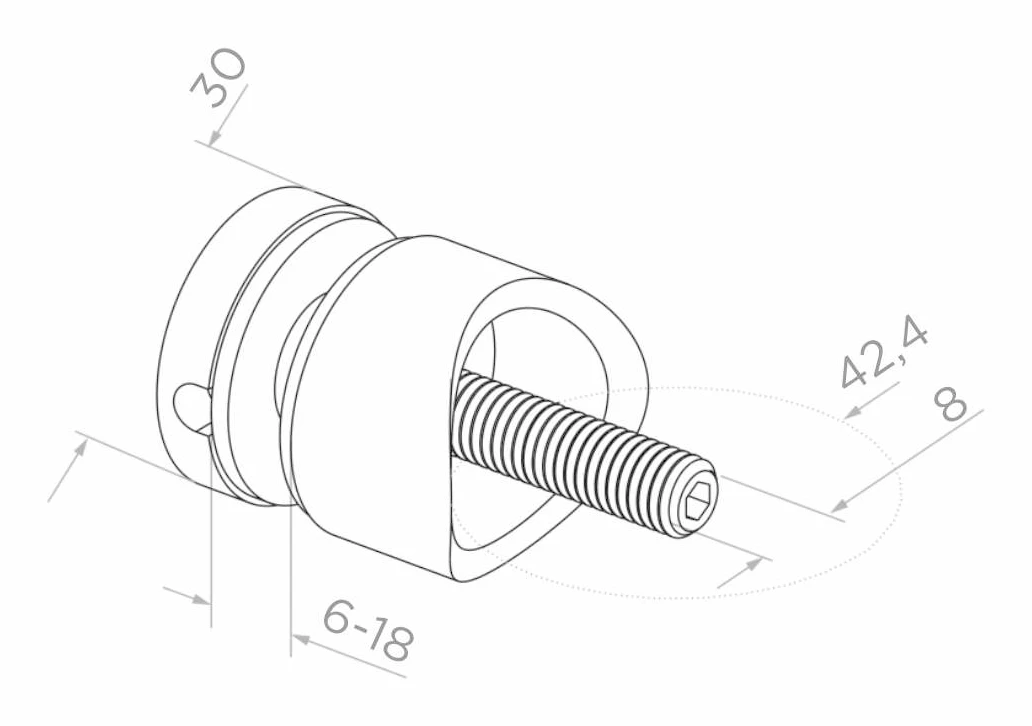

Dimensions and technical parameters
- Support diameter: 30 mm
- Thread: M8
- Compatible post: fi 42.4 mm
- Glass thickness range: 6–18 mm
- Material: AISI 304 stainless steel
- Anti-corrosion protection: INOX
- Finish: satin
- Weight: 0.08 kg
- Included in set: compression gaskets for support
Application and installation
The support is designed for mounting on flat surfaces and on posts with diameter 42.4 mm. It is perfect for glass balustrade structures, glass screens, partitions and installations in commercial buildings, residential buildings and public spaces. Thanks to the M8 thread mounting system, installation is quick and does not require specialist tools — an Allen key is sufficient. The included compression gaskets provide proper clamping and cushioning, which protects glass from point cracks.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-12 |
