Glass point fixing 8-17.52 mm ⌀ 50/8/M10x50 AISI 304 flat system black
Description

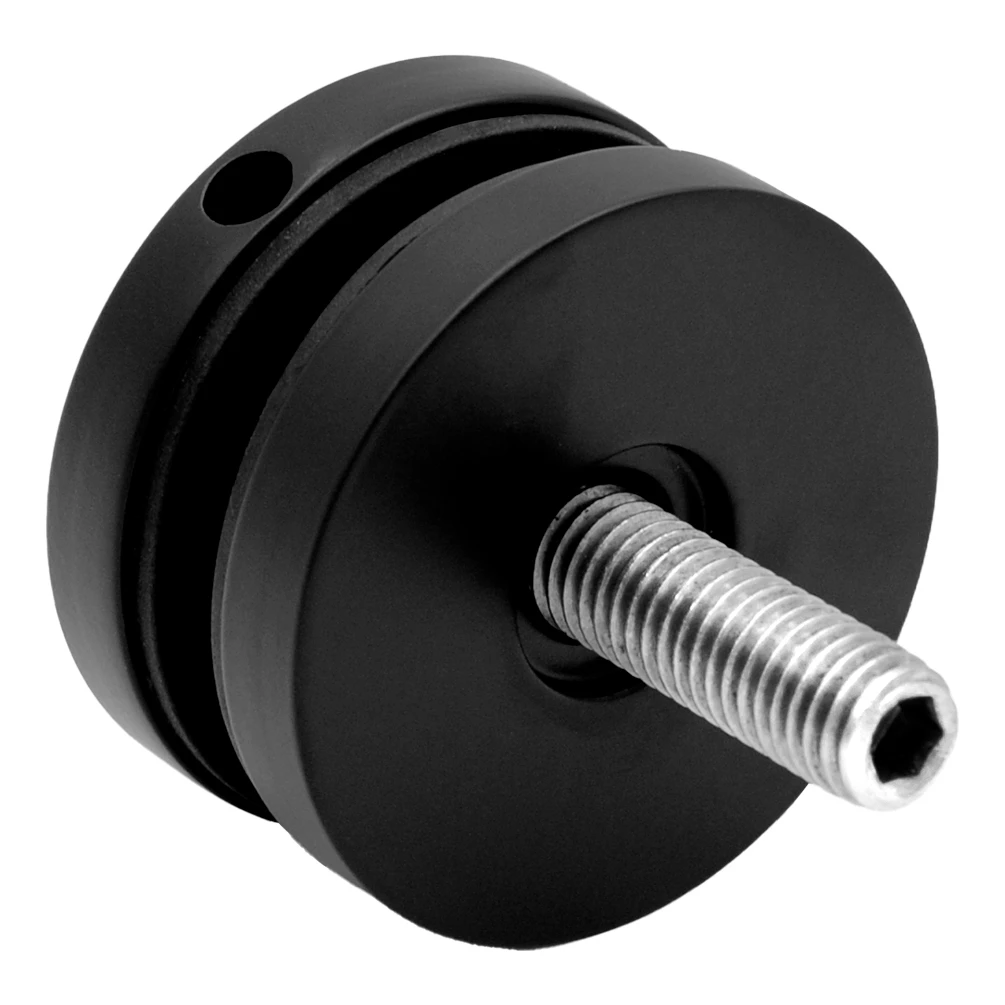

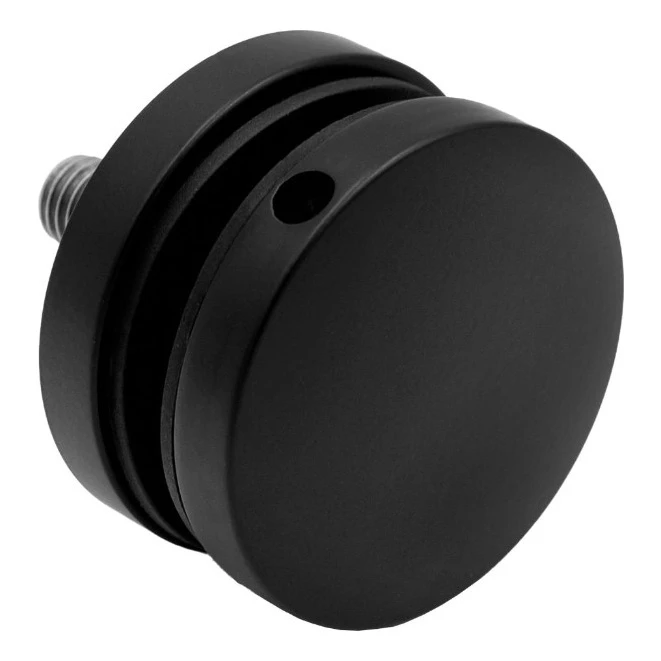

Glass point fixing Rotula ⌀ 50 mm – black matt, AISI 304
Glass point fixing (rotula) with diameter 50 mm in elegant black matt finish is a professional mounting element designed for fixing glass panels on flat surfaces. Made from stainless steel AISI 304 and coated with powder paint, it combines high strength with modern aesthetics — suitable for both interior and exterior applications.
The fixing construction consists of a cylindrical body with a clamping element and a threaded stud M10×50, which ensures solid and secure fastening to the substrate. The mounting hole with diameter 18 mm facilitates precise installation. The fixing accommodates glass thickness from 8 to 17.52 mm, providing wide application possibilities — from single panes to multi-layer laminated glass.
Powder coating significantly increases corrosion resistance and provides an aesthetically uniform, smooth finish resistant to fading. This ensures the fixing maintains perfect appearance throughout long service life, regardless of environmental conditions.

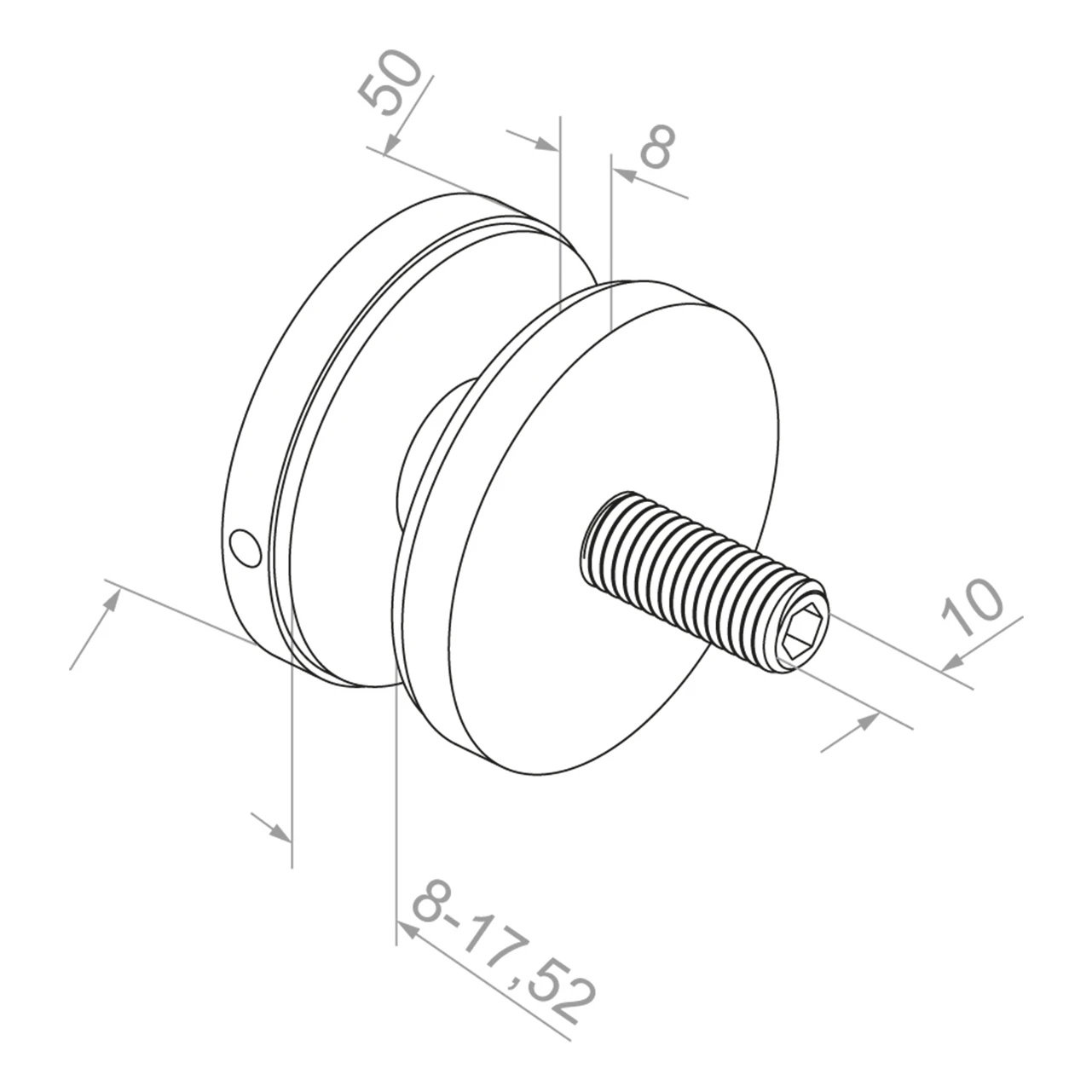

Technical specification
- Model: Rotula 50/8/M10×50
- Body diameter: 50 mm
- Distance (clamp thickness): 8 mm
- Glass thickness: 8–17.52 mm
- Mounting thread: M10×50
- Stud diameter: 10 mm
- Mounting hole: 18 mm
- Material: stainless steel AISI 304
- Finish: powder coating – black matt
- Application: flat surfaces
- Weight: 0.3 kg
- EAN: 5903313204293
Application
The point fixing is perfect for mounting glass balustrades, glass enclosures, entrance canopies and partition walls. The flat surface mounting system allows quick and repeatable installation, resulting in time savings on construction sites. The M10 threaded stud with hex socket enables precise tightening with standard tools.
Technical data
| Material | AISI 304 |
| Finish | Painted black |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
