Glass point clamp for 8-17.52mm glass ø50/8/M10x50 AISI304 satin
Description

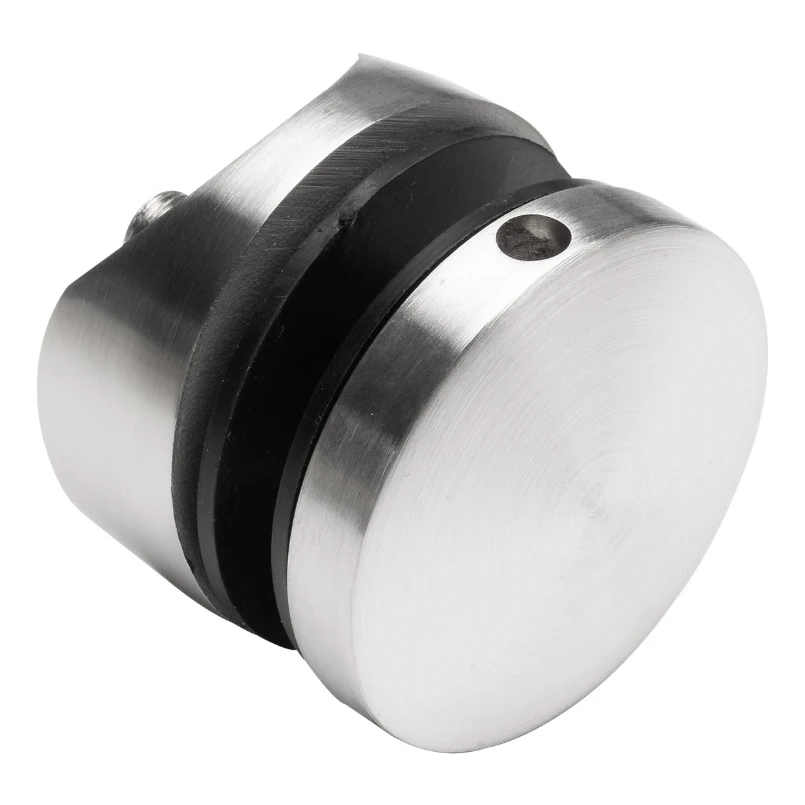

Glass point fixing Ø 50 mm – AISI 304 steel, satin finish, 42.4 mm tube
Glass point fixing with a diameter of 50 mm made of AISI 304 stainless steel with a satin finish. Designed for mounting glass panes with a thickness of 8 to 17.52 mm on a round tube with a diameter of 42.4 mm. Thanks to the use of acid-resistant steel, the fixing performs well both indoors and outdoors — in terrace and balcony balustrades, staircases and glass canopies.
Sturdy construction and easy installation

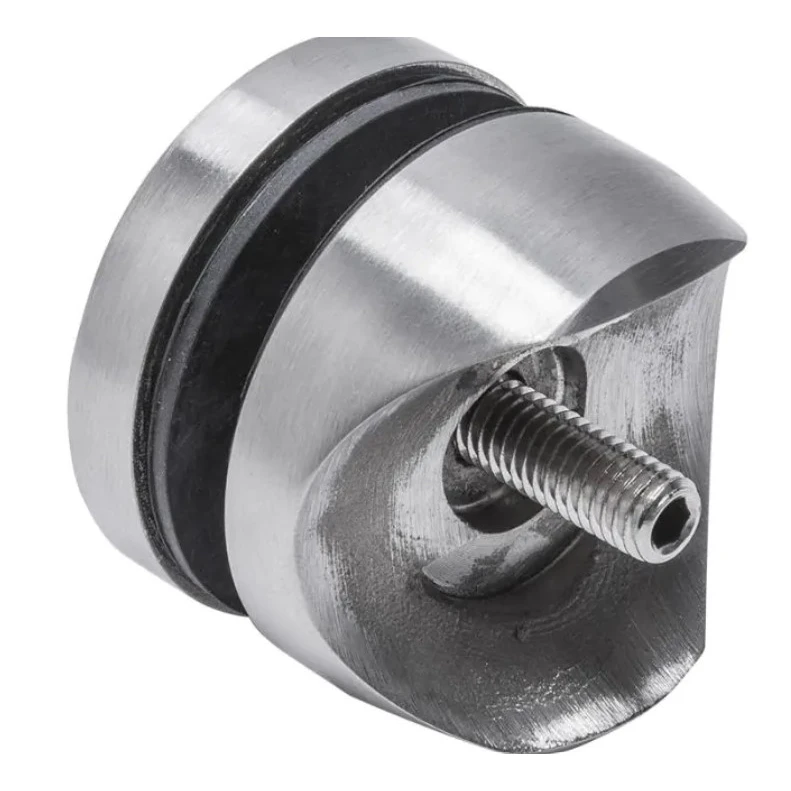

The fixing is mounted by screwing onto a threaded M10 stud, 50 mm long. The saddle-shaped cut-out in the base ensures a precise fit to the 42.4 mm diameter tube, guaranteeing a stable and aesthetic connection. Rubber gaskets on both sides of the glass pane protect the material from scratches and effectively dampen vibrations, while compensating for differences in glass thickness within the range of 8–17.52 mm.
Versatile application
The satin surface finish gives the fixing an elegant, matte appearance that blends harmoniously with modern glass balustrades and stainless steel architectural elements. AISI 304 steel provides high corrosion resistance, allowing the fixing to be used in rooms with elevated humidity as well as outdoors.

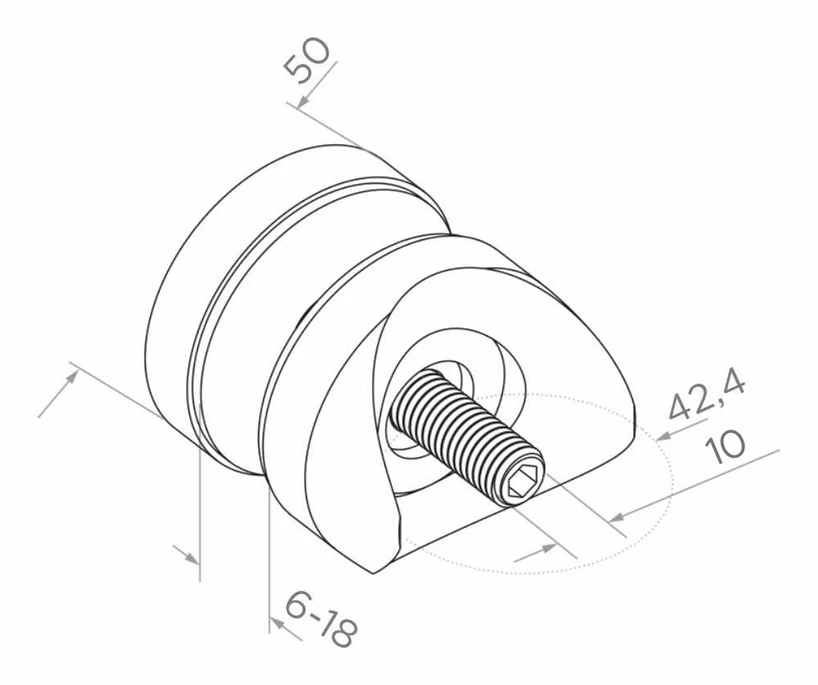

Technical specification
- Fixing diameter: 50 mm
- Mounting stud thread: M10 × 50 mm
- Compatible glass thickness: 8–17.52 mm
- Mounting tube diameter: 42.4 mm
- Base (saddle) thickness: 10 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting method: screw-on
- Gaskets: rubber (on both sides of the glass)
- Weight: 0.33 kg
- Volume: 237.5 cm³
- EAN: 5901289670388
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
