PSG

Glass holder for 8-10 mm 60x60x28 mm AISI 304 flat system satin

Go to Product feedback

Central side glass clamp 60×60×28 mm in AISI 304 stainless steel with satin finish, for glass 8–10.38 mm, mounting hole Ø8.5 mm, A4-70 hex screws.

Go to full description
with VAT without VAT
Price €7.00
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-do-szkla #124

  • Material AISI 316
  • Finish Satin
  • Mounting System Flat
  • Glass Thickness [mm] 8-10,38

Description

Glass Clamp 60×60×28 Centre Fix – AISI 304 Stainless Steel, Side Mount

Centre-fix glass clamp 60×60×28 mm with side mounting — a robust solution for securing glass panels with a thickness of 8–10.38 mm in balustrades, partitions, and interior glazing. Manufactured from AISI 304 stainless steel with a satin finish, it offers excellent corrosion resistance and a sleek, contemporary appearance.

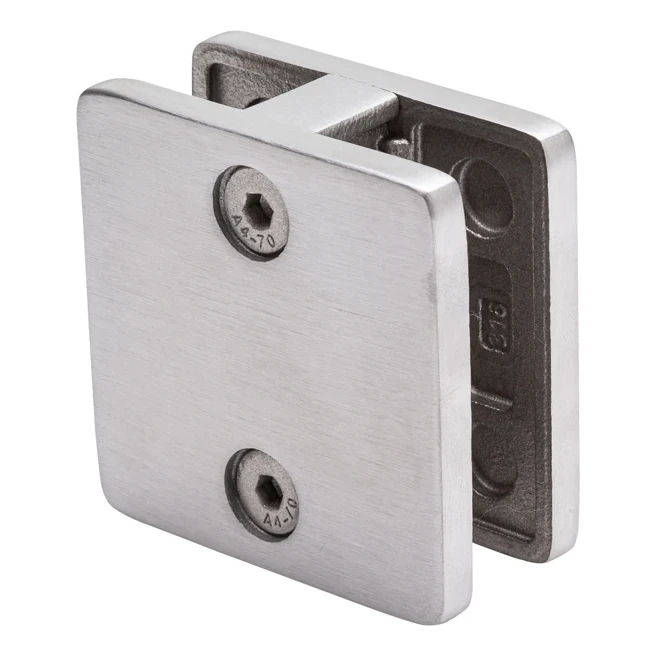

Glass clamp 60×60×28 mm – view from the Allen screw side
Glass clamp 60×60×28 mm – view from the Allen screw side

This clamp is designed for side mounting on flat surfaces. The two-part clamping body grips the glass panel securely and is tightened using A4-70 Allen (hex socket) screws, allowing precise adjustment of clamping force without the need to fully disassemble the fitting. The central fixing hole enables secure attachment to the supporting structure.

Applications and Limitations

This clamp is intended primarily for interior use. For exterior balustrades, additional glass support brackets are required, or alternatively the K2 series clamp should be used, which features a built-in anti-withdrawal safety mechanism for the glass panel.

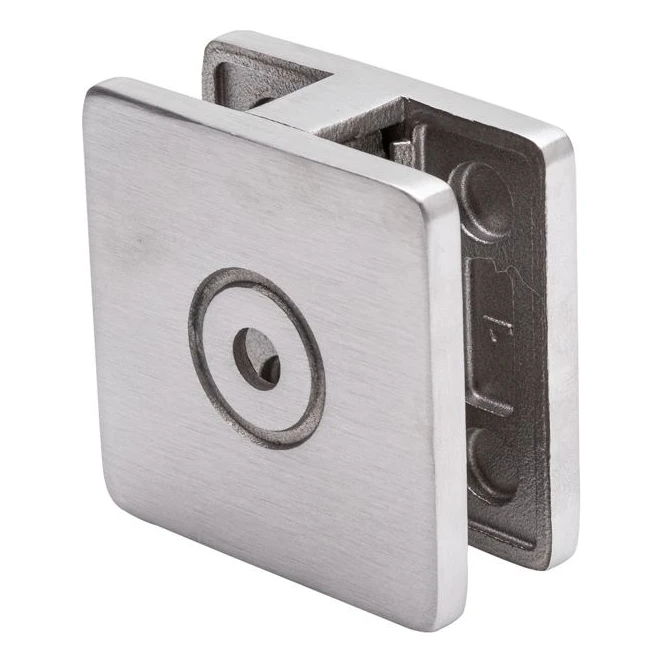

Glass clamp 60×60×28 mm – view from the fixing hole side
Glass clamp 60×60×28 mm – view from the fixing hole side

Dimensions and Technical Specifications

  • Overall dimensions (L × H × W): 60 × 60 × 28 mm
  • Glass slot width (a): 23 mm
  • Compatible glass thickness: 8–10.38 mm
  • Fixing hole diameter: Ø 8.5 mm
  • Countersink diameter: Ø 16 mm / Ø 20 mm
  • Material: AISI 304 stainless steel
  • Screws: A4-70 Allen hex socket (acid-resistant)
  • Finish: satin
  • Mounting surface: flat
  • Fixing type: side, centre
  • Weight: 0.33 kg
  • Volume: 56.7 cm³

Dimensional Drawings

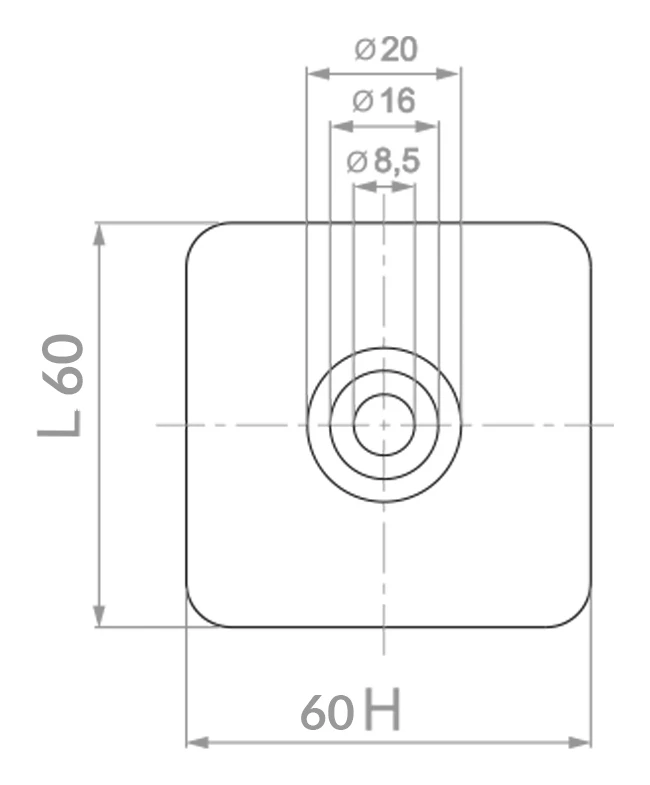

Dimensional drawing of glass clamp – front view, dimensions 60×60 mm, holes Ø8.5/Ø16/Ø20
Dimensional drawing of glass clamp – front view, dimensions 60×60 mm, holes Ø8.5/Ø16/Ø20

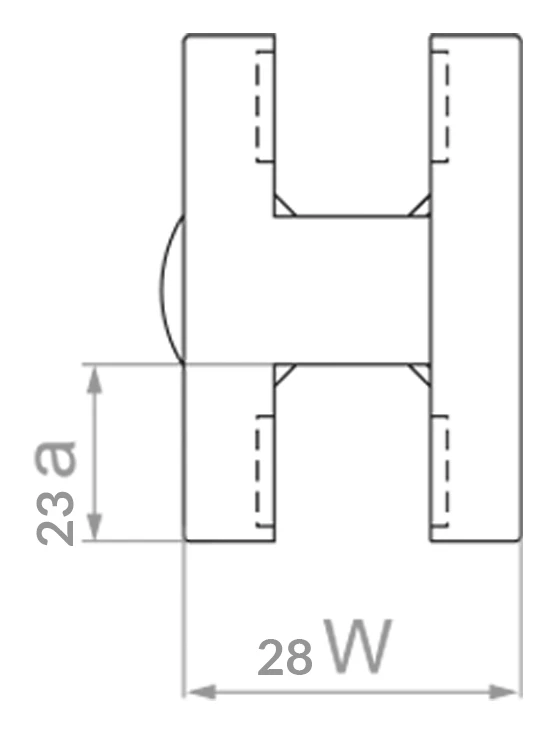

Dimensional drawing of glass clamp – side view, width 28 mm, glass slot 23 mm
Dimensional drawing of glass clamp – side view, width 28 mm, glass slot 23 mm

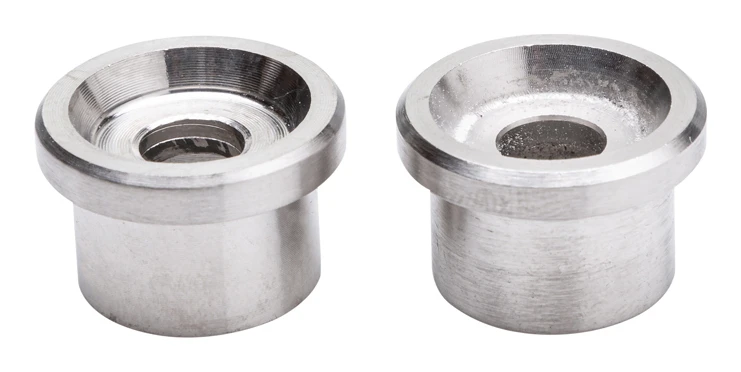

Stainless steel spacer sleeves supplied with the clamp
Stainless steel spacer sleeves supplied with the clamp

Rubber Gaskets — Essential Accessories

Correct installation requires two sets of specialist rubber gaskets, which must be selected to match the thickness of the glass panel being fitted. The gaskets protect the glass from direct contact with the steel, eliminating the risk of cracking and ensuring even clamping pressure. Gaskets are available as separate accessories — please ensure you order them together with the clamp.

Installation Diagrams

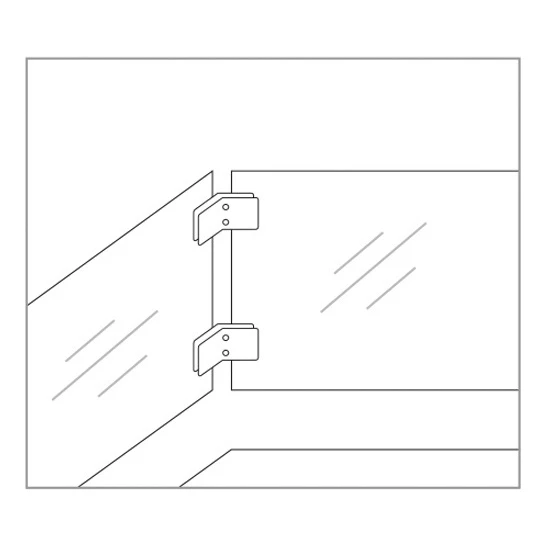

Installation diagram – side mounting on a corner
Installation diagram – side mounting on a corner

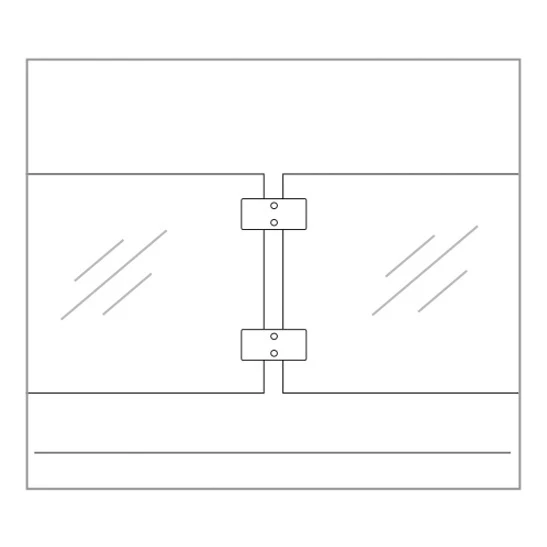

Installation diagram – side mounting on a flat surface
Installation diagram – side mounting on a flat surface

The diagrams above illustrate typical applications for this clamp: mounting at a wall edge (corner) and mounting on a flat side surface. In both configurations, the clamp provides stable support for the glass panel whilst maintaining a clean, minimalist aesthetic.
