Glass holder 6-12.76 mm 63x45x30 mm pin AISI 304 system 42.4 mm satin
Description

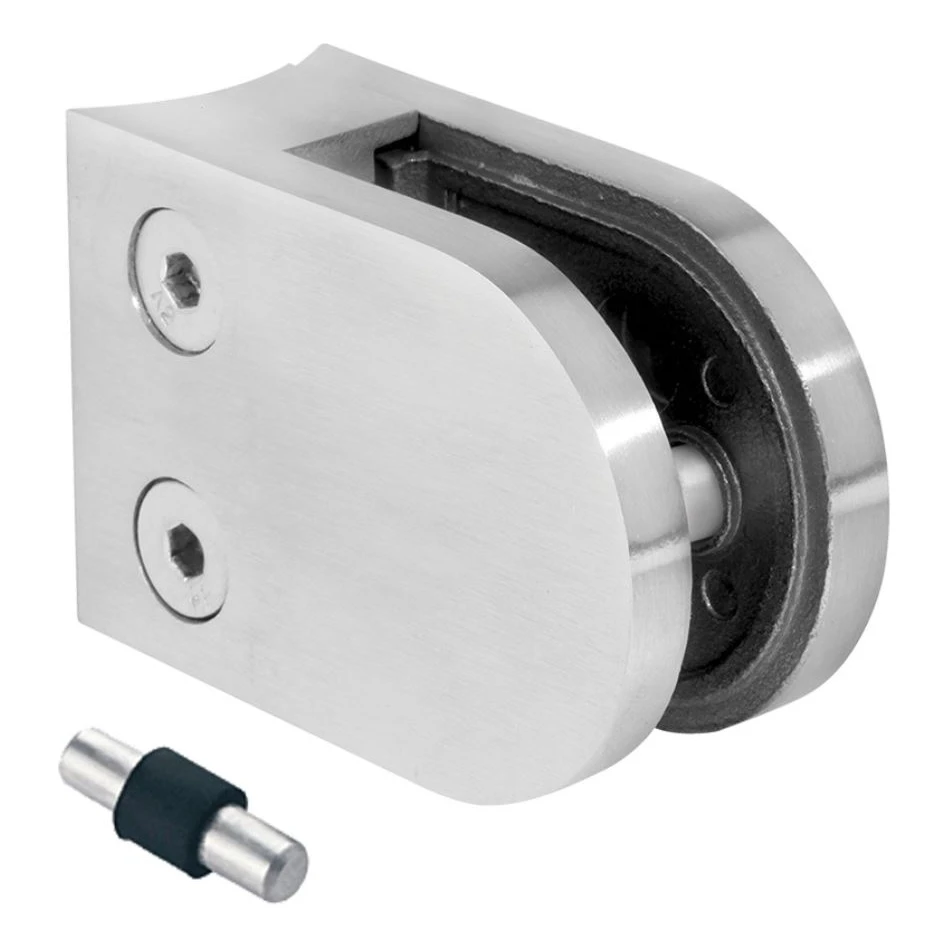

Glass Clamp 63×45×30 mm – AISI 304 Stainless Steel, Satin Finish, 42.4 mm Post System
A rounded glass clamp designed for use with modular glass balustrade systems based on posts with a diameter of 42.4 mm. It provides secure fixing of glass panels with a thickness ranging from 6 to 12.76 mm, and the included safety pin effectively prevents the glass from accidentally slipping out of the clamp.
The clamp is manufactured from AISI 304 stainless steel with a satin finish, ensuring excellent corrosion resistance and an elegant, understated appearance that complements contemporary balustrade structures. Glass and all-glass balustrades are growing in popularity across both commercial settings — shopping centres, hotels, office buildings — and residential construction.
The clamp design features Allen (hex) screw fixing, allowing precise clamping pressure adjustment without the need to remove the entire clamp. This simplifies both initial installation and any subsequent repositioning of the glass panel during servicing.

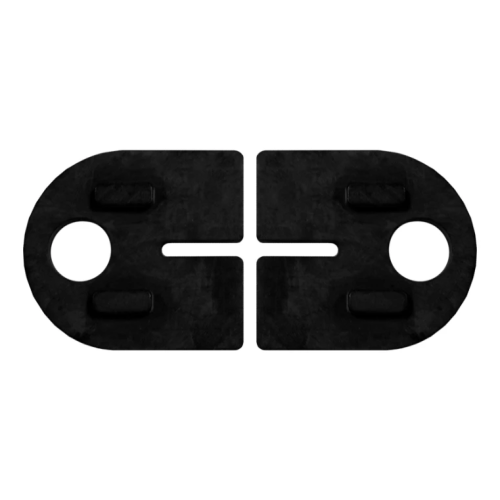

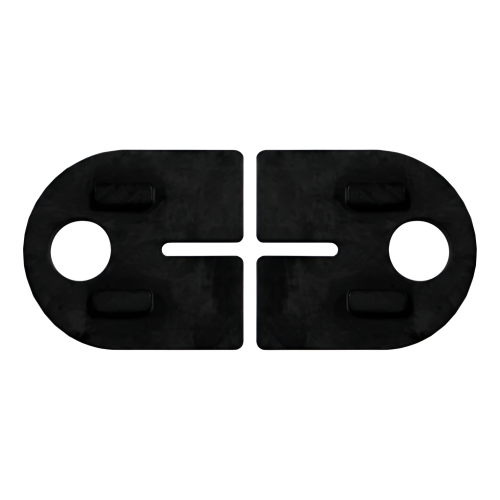

Important: the clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being installed. Gaskets are sold separately as accessories — this allows you to flexibly adapt the clamp to different panel thicknesses within the range of 6–12.76 mm.

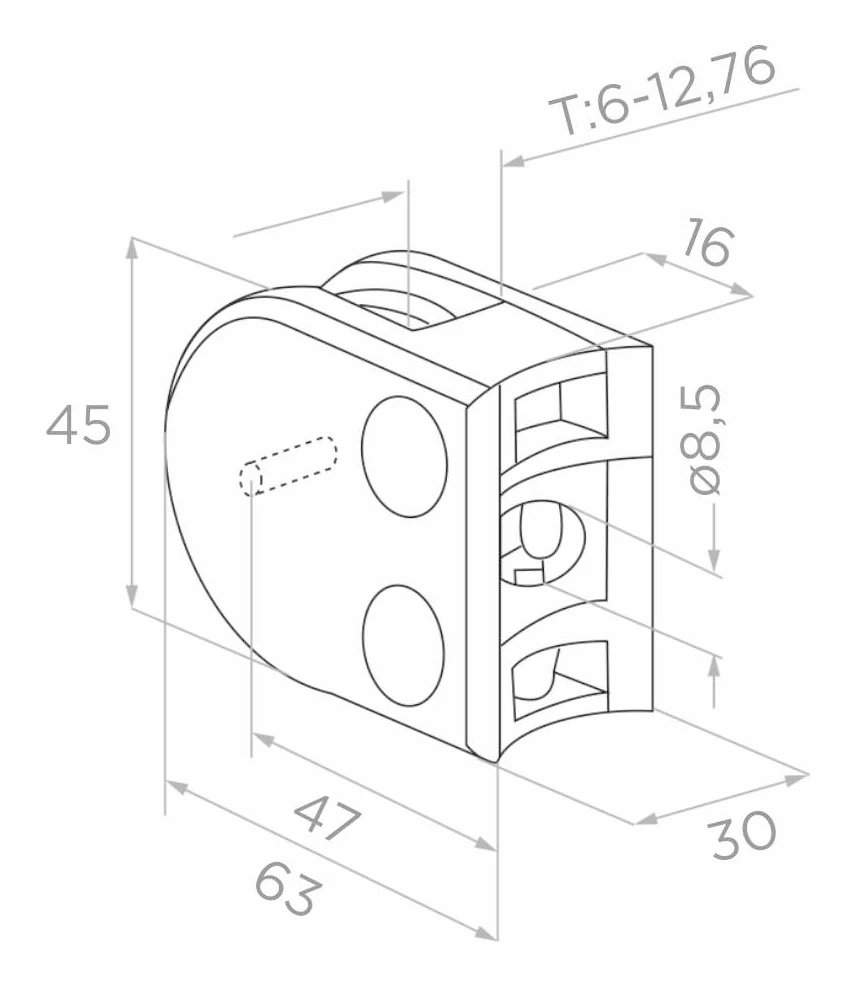

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width: 30 mm
- Depth to pin axis: 47 mm
- Mounting hole diameter: ø8.5 mm
- Glass thickness range (T): 6–12.76 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Post system: ø42.4 mm
- Weight: 0.3 kg
- EAN: 5901289670975
Applications and Benefits
- Stabilisation of glass panels in modular glass balustrade systems
- Prevention of panel displacement thanks to the safety pin
- Clamping pressure adjustment via Allen screws — without removing the clamp
- Aesthetically pleasing rounded shape enhancing the visual appeal of the structure
- Versatility — accommodates glass thicknesses from 6 mm to 12.76 mm
Included in the set: glass clamp and safety pin. Rubber gaskets must be ordered separately, selected according to the thickness of the glass used.
Technical data
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-12,76 |
| Material | AISI 304 |
