Glass holder 6-10.76 mm 45x45x26 mm pin AISI 304 system 42.4 mm satin
Description
Glass Clamp 45×45 mm with Bracket for 42.4 mm Tube – AISI 304 Satin Stainless Steel
This glass clamp with bracket is a robust mounting component designed to secure glass panels with a thickness of 6 to 10.76 mm onto tubes with a diameter of 42.4 mm. Manufactured from AISI 304 stainless steel with a satin finish, it offers excellent corrosion resistance and a sleek, contemporary appearance — suitable for both interior and exterior applications.
A practical solution for installers

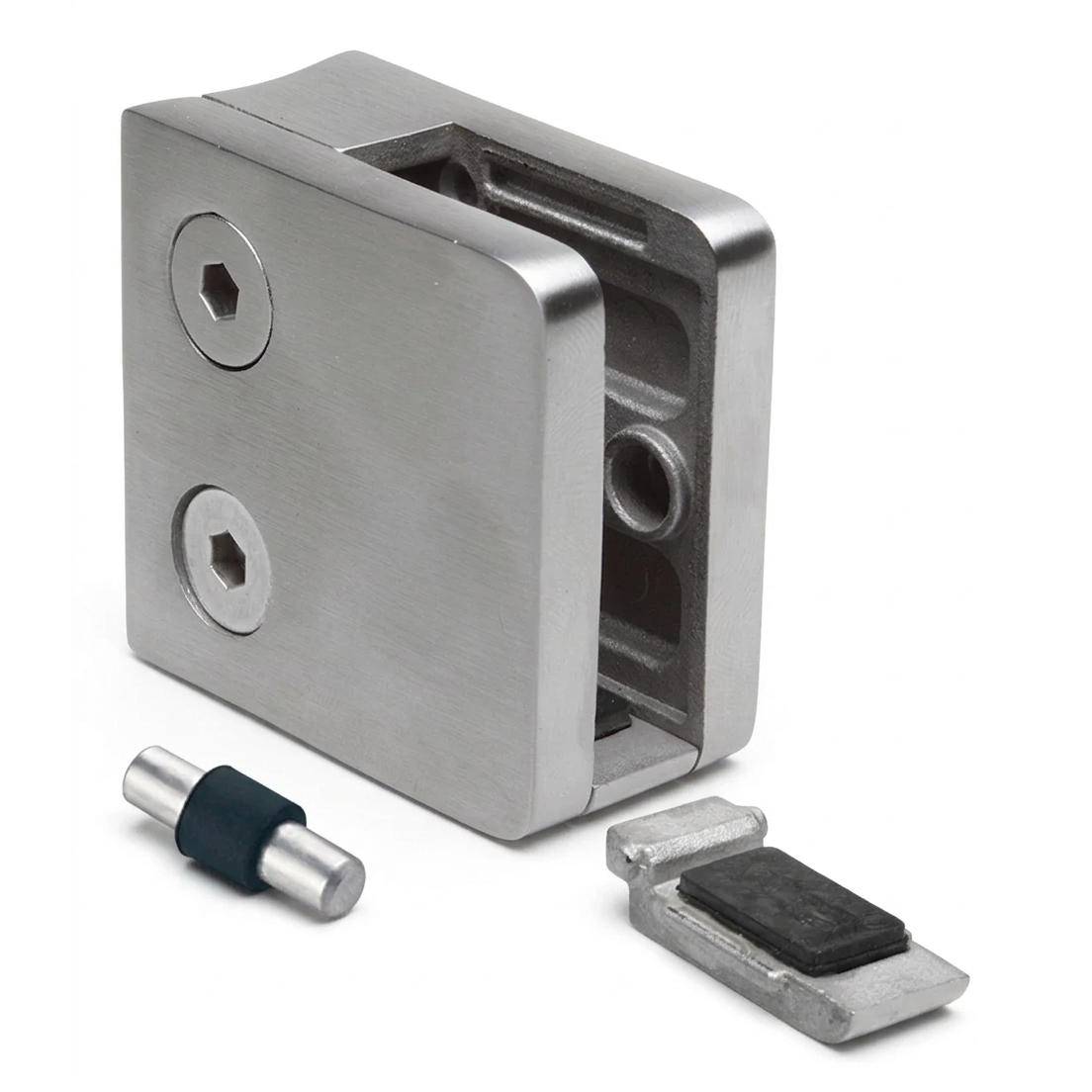

The clamp is fitted by screwing onto a tube with a diameter of 42.4 mm. The set includes a securing pin and a mounting bracket, making installation quick and straightforward with no additional connecting components required. Two Allen screws allow precise adjustment of the glass clamping pressure without the need to disassemble the entire fitting — a significant time-saver on site.
The rear face of the clamp is curved, ensuring a perfect fit against the circular profile of the mounting tube. The mounting hole with a diameter of ø8.5 mm, positioned 18 mm from the rear edge, guarantees secure seating on the supporting structure.

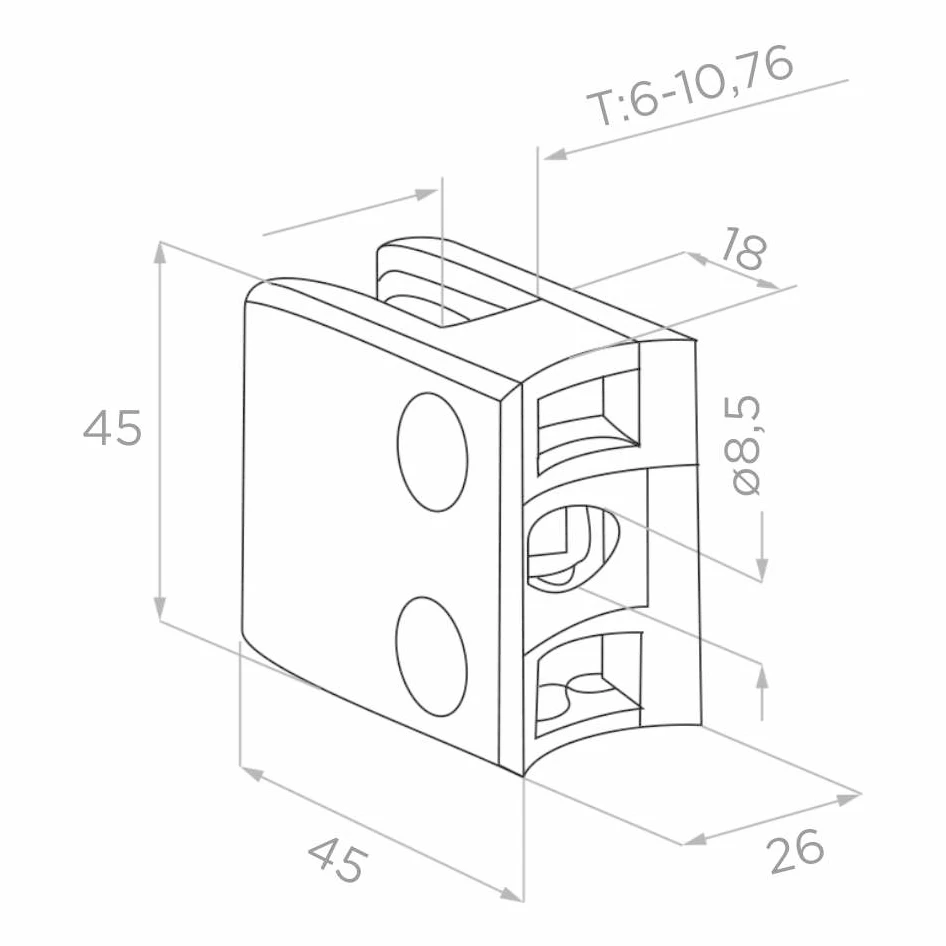

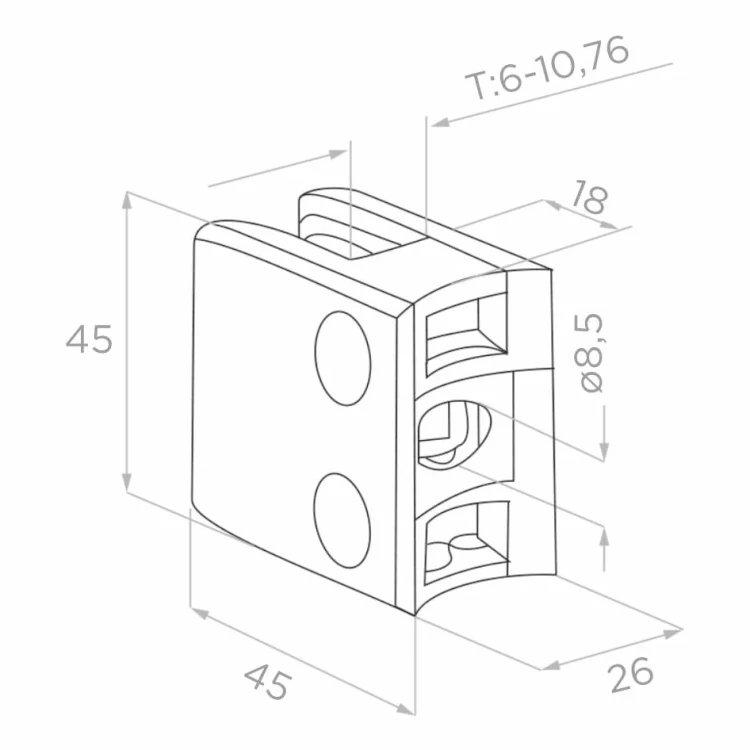

Dimensions and technical specifications
- Height (H): 45 mm
- Length (L): 45 mm
- Width: 26 mm
- Glass thickness range: 6–10.76 mm
- Mounting hole diameter: ø8.5 mm
- Distance from hole centre to edge: 18 mm
- Mounting tube diameter: 42.4 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Fixing method: screw-on to tube
- Weight: 0.2 kg
- Volume: 52.65 cm³
- EAN: 5903313200462
Gasket information
The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being fitted. Gaskets are available as separate accessories — when ordering, choose the variant marked with the letter D, which is compatible with this clamp. A correctly selected gasket ensures even clamping pressure and protects the glass surface from damage.
Applications
This clamp is ideal wherever glass panels are fixed to round tube structures with a diameter of 42.4 mm — particularly in glass balustrades, balcony screens, partitions and glass enclosures. The satin finish complements modern stainless steel balustrade systems beautifully.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
