Glass holder 6-10.76 mm 45x45x26 mm bracket and pin AISI 304 system 42.4 mm polished
Description
Glass Clamp 45×45 mm with Bracket for 42.4 mm Tube – AISI 304 Stainless Steel
This glass clamp with bracket is a robust solution for securing glass panels with a thickness of 6 to 10.76 mm. Manufactured from AISI 304 stainless steel with a polished (mirror) finish, it delivers an elegant appearance and excellent corrosion resistance — suitable for both indoor and outdoor applications.
Design and Installation

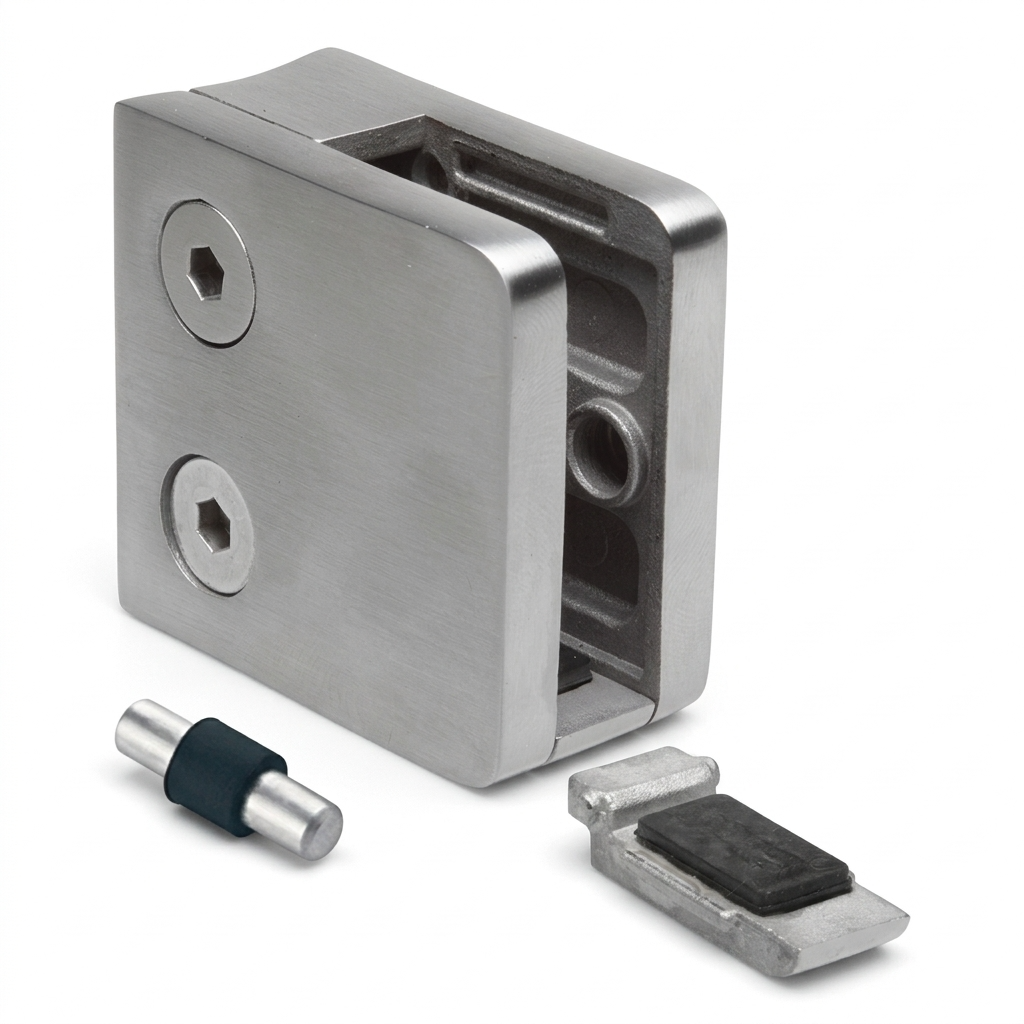

The clamp is designed for mounting on a tube with a diameter of 42.4 mm — secured by screwing in the bracket. The set includes a securing pin that prevents accidental displacement of the glass. Two Allen screws allow precise clamping adjustment without the need to remove the clamp, significantly speeding up installation and making on-site correction of glass panel positioning straightforward.
The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being fitted. Gaskets are available as separate accessories — when ordering, select the variant with the additional designation D.

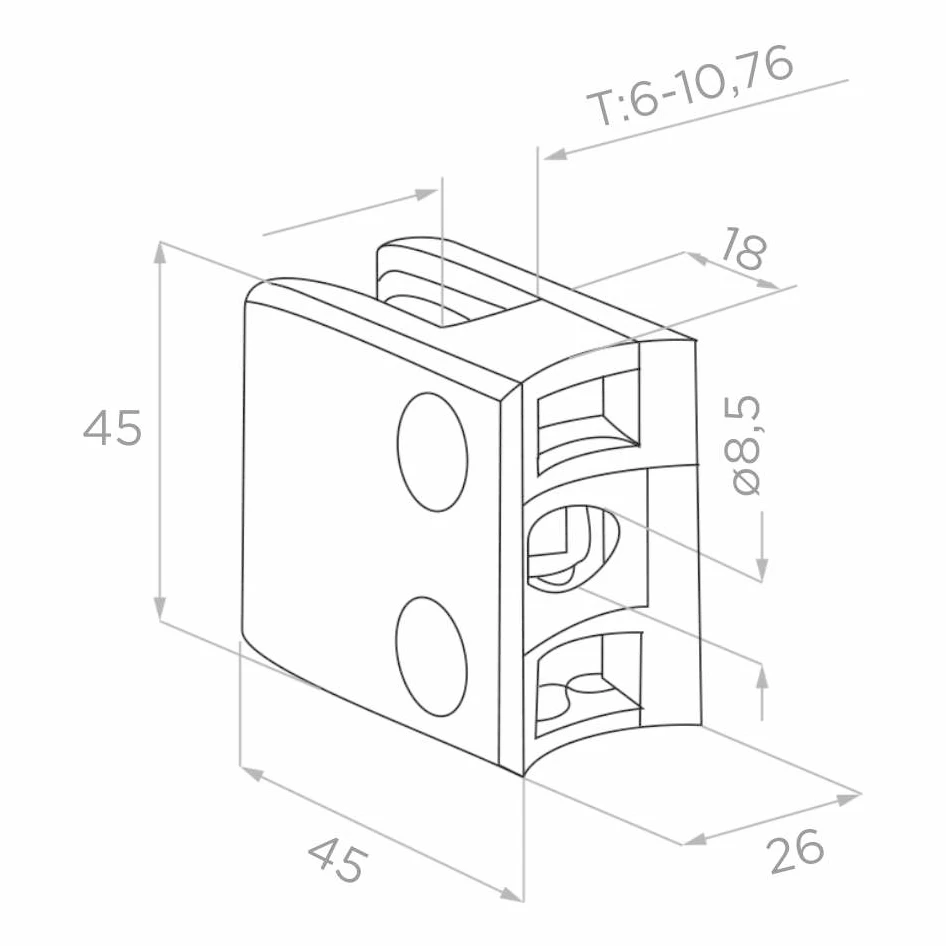

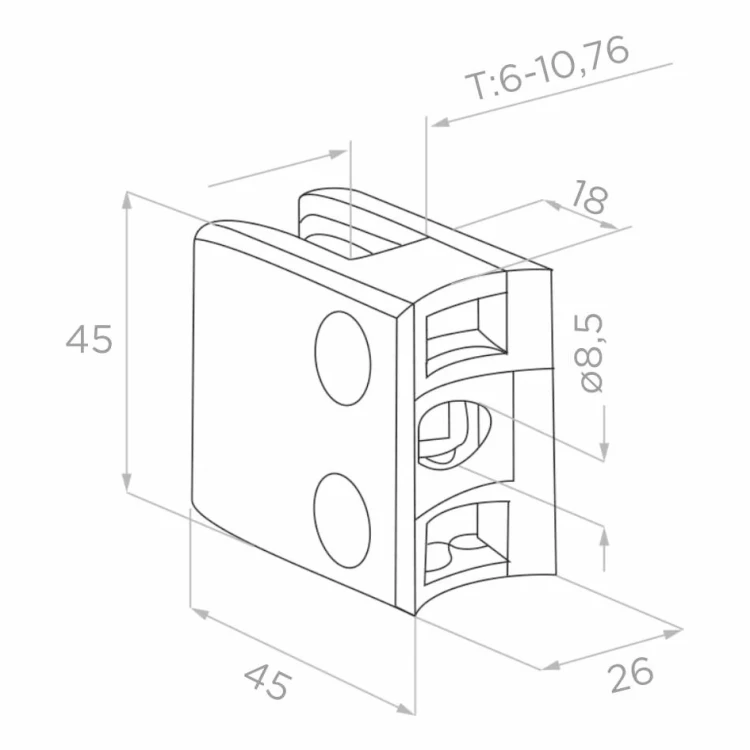

Dimensions and Technical Specifications
- Height (H): 45 mm
- Length (L): 45 mm
- Width: 26 mm
- Glass thickness: 6–10.76 mm
- Mounting hole diameter: Ø8.5 mm
- Mounting tube diameter: 42.4 mm
- Material: AISI 304 stainless steel
- Finish: polished / mirror
- Weight: 0.18 kg
- EAN: 5903313200455
The compact dimensions of 45×45×26 mm and the wide range of accepted glass thicknesses — from 6 mm for single-pane glass to 10.76 mm for laminated glass — make this clamp a versatile component for balustrade systems, glass enclosures and fencing based on 42.4 mm diameter tubes.
Technical data
| Glass Thickness [mm] | 6-10,76 |
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
