Glass holder 6-10.76 mm 45x45x26 mm bracket and pin AISI 304 flat system polished

Go to Product feedback

Glass holder 45×45×26 mm with bracket and securing pin, AISI 304 steel, mirror finish. Flat surface mounting, glass thickness range 6–10.76 mm.

Go to full description
with VAT without VAT
Price €4.46
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-do-szkla #124

  • Material AISI 304
  • Finish High Gloss
  • Mounting System Flat
  • Glass Thickness [mm] 6-10,76

Description

Glass Clamp 45×45 mm with Bracket – AISI 304 Stainless Steel, Polished

Glass clamp 45×45×26 mm with bracket and securing pin — a robust mounting solution for fixing glass panels with a thickness of 6 to 10.76 mm. Made from AISI 304 stainless steel with a mirror-polished finish, it provides an elegant appearance and excellent corrosion resistance. Designed for installation on flat surfaces — ideal for glass balustrades, screens, and enclosures.

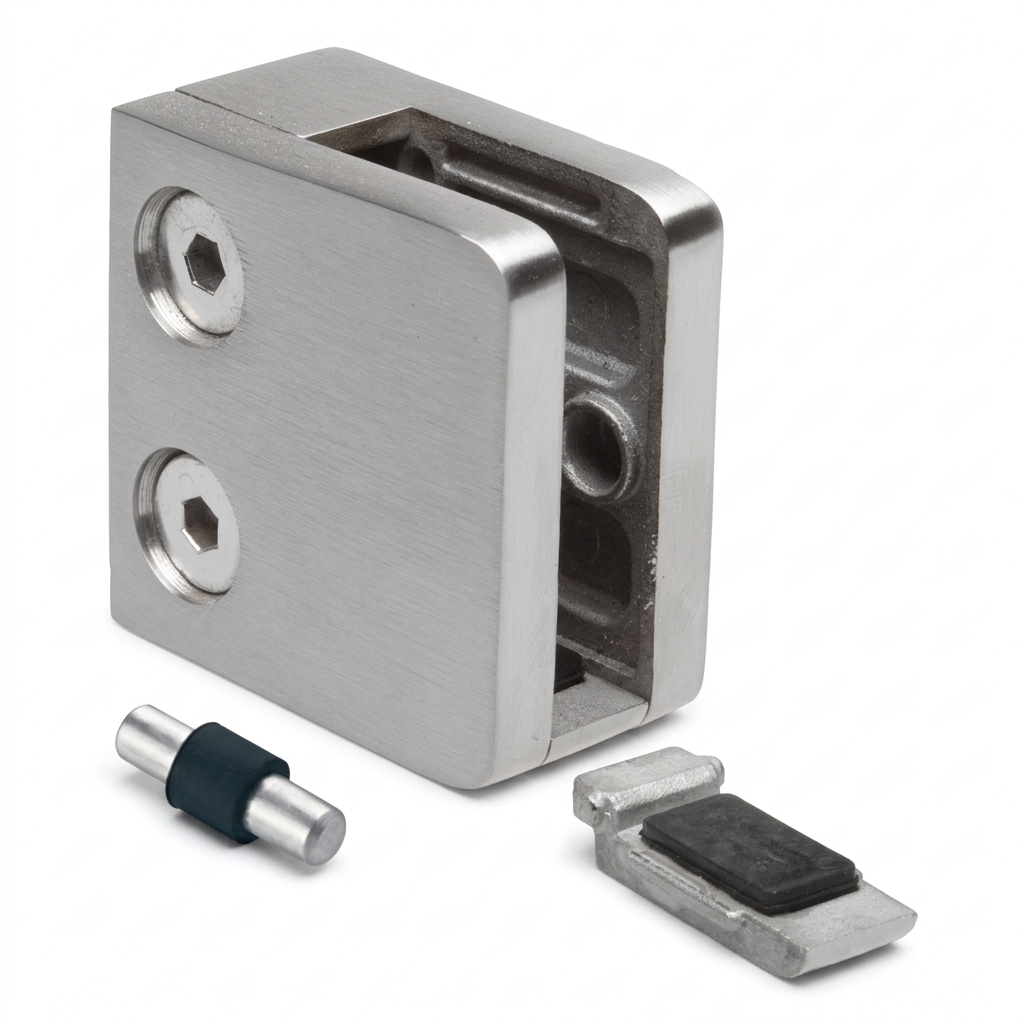

Glass clamp 45×45 mm with bracket, securing pin and rubber pressure pad — stainless steel, polished finish
Glass clamp 45×45 mm with bracket, securing pin and rubber pressure pad — stainless steel, polished finish

Construction and Installation

The clamp is designed to be screwed directly into the substrate. The set includes a bracket (pressure insert) and a securing pin, which stabilises the glass panel within the clamp and prevents accidental displacement. Two Allen screws allow precise clamping pressure adjustment without the need to fully disassemble the clamp — significantly speeding up on-site installation work.

Correct installation requires rubber gaskets (pressure pads), which should be selected according to the thickness of the glass being fitted. The compatible gasket carries the additional designation D. Gaskets are available as separate accessories, allowing the clamp to be flexibly adapted to various glass panel thicknesses.

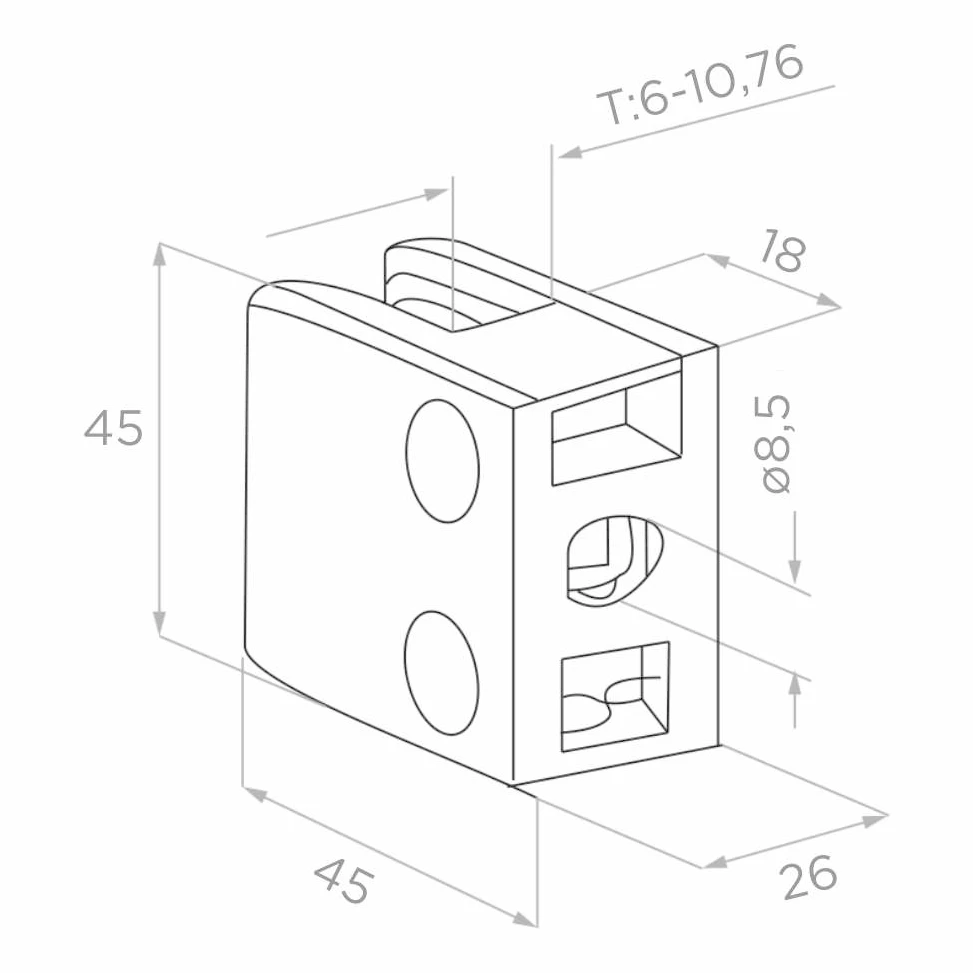

Dimensional drawing of the 45×45×26 mm glass clamp with marked dimensions and mounting hole diameter ø8.5 mm
Dimensional drawing of the 45×45×26 mm glass clamp with marked dimensions and mounting hole diameter ø8.5 mm

Dimensions and Technical Specifications

  • Height (H): 45 mm
  • Width (L): 45 mm
  • Depth: 26 mm
  • Mounting hole diameter: ø8.5 mm
  • Glass thickness range (T): 6–10.76 mm
  • Material: AISI 304 stainless steel
  • Finish: polished / mirror
  • Mounting system: flat surface (screw-in)
  • Weight: 0.18 kg
  • Volume: 52.65 cm³
  • Compatible gasket designation: D
  • EAN: 5903313207539

Applications

This clamp is ideally suited for the installation of glass balustrades, partitions, wind screens, and enclosures made from toughened or laminated glass. Thanks to its compact 45×45 mm footprint and elegant mirror finish, it complements both modern commercial spaces and residential settings. AISI 304 stainless steel ensures durability and resistance to weathering, making the clamp suitable for outdoor use as well.
