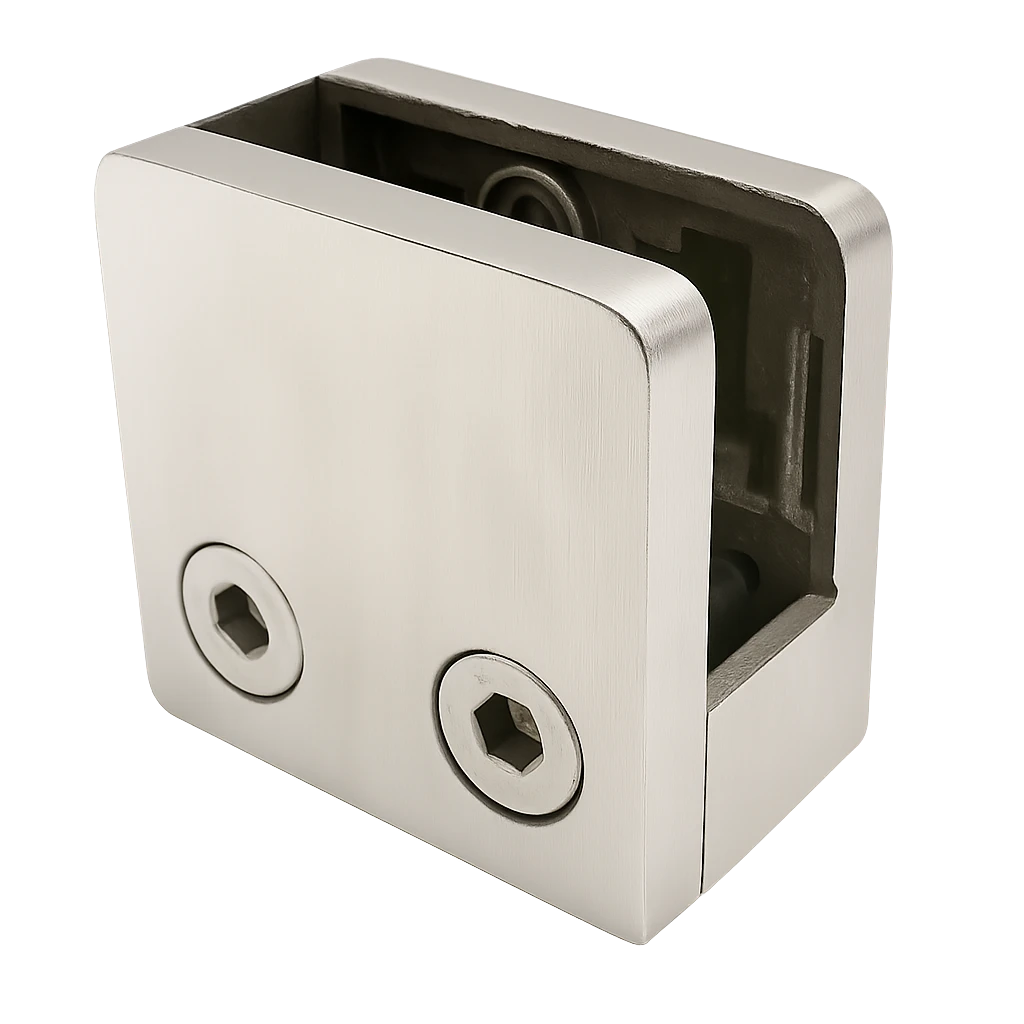

Glass holder 45x45x26 mm with pin bracket glass 6–10.76 mm AISI 304 flat system satin
Description
Glass Clamp 45×45×26 mm AISI 304 Satin – Flat System, Glass 6–10.76 mm
Rectangular glass clamp with bracket designed for the professional fixing of glass panels with a thickness of 6 to 10.76 mm. Made from AISI 304 stainless steel with a satin finish, it is ideal wherever aesthetics and durability matter — in balustrades, glass partitions and decorative elements.
The set includes a complete clamp with integrated bracket, securing pin and a dedicated clamping insert. This provides the installation company with a ready-to-fit assembly — with no need to order additional components. The product is designed for screw-in mounting and is dedicated to flat surfaces, making it a versatile solution for installation on posts, walls and profiles with a flat mounting surface.
The clamp is compatible with a clamping rubber marked D — it ensures even pressure on the glass and protects it from mechanical damage. The satin surface finish provides an elegant, matt appearance that is resistant to fingerprints and minor scratches.
Technical Specification
- Dimensions (L × H × W): 45 × 45 × 26 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Glass thickness: 6–10.76 mm
- Mounting system: flat
- Fixing method: screw-in
- Weight: 0.18 kg
- Volume: 52.65 cm3
- Compatible clamping rubber: marked D
- EAN: 5903313204835

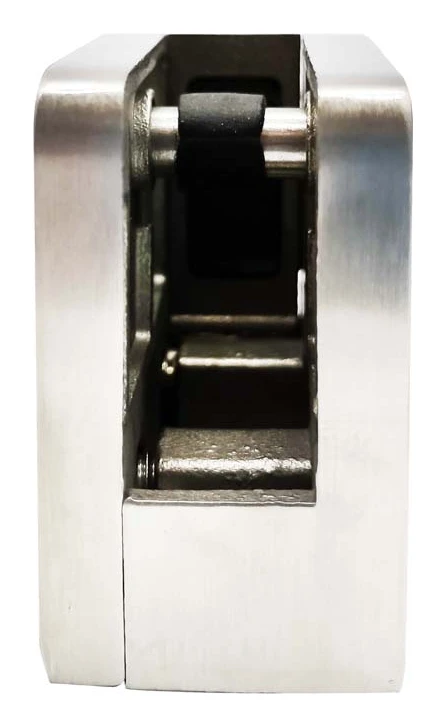

Detailed View – Additional Product Images
The robust cast stainless steel construction provides high mechanical strength and long-lasting aesthetics. Two Allen screws allow precise clamping of the glass panel, while the bracket system with securing pin ensures stable and secure seating of the panel. The product is intended for interior use — ideal for glass balustrades, office partitions and shower enclosures.
Additional Information

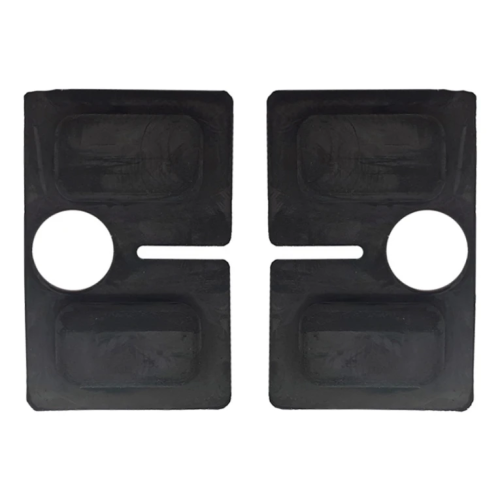

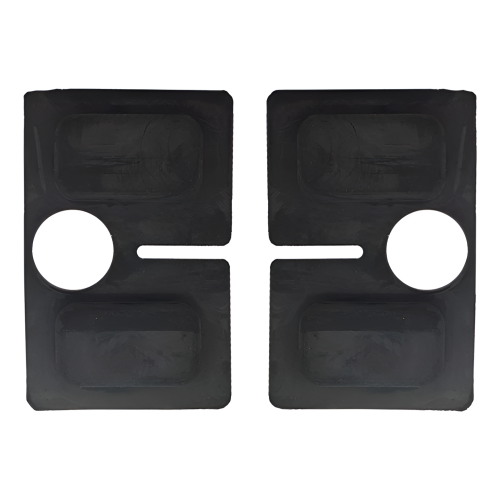

The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the thickness of the glass being fitted
Rubber gaskets are available as separate accessories
Allen screws allow clamping pressure adjustment without removing the clamp
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
Safety
Shipping costs
The price does not include any possible payment costs
Related products

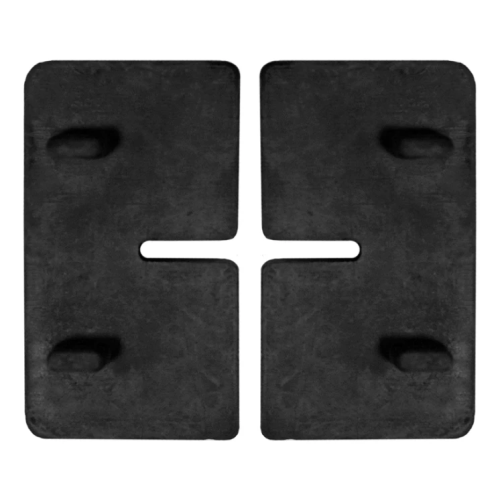

Pressure rubber 8mm for 45K1 clamps
