Glass handrail bracket 10.76-25.52mm ø50mm AISI304 system 42.4 satin
Description

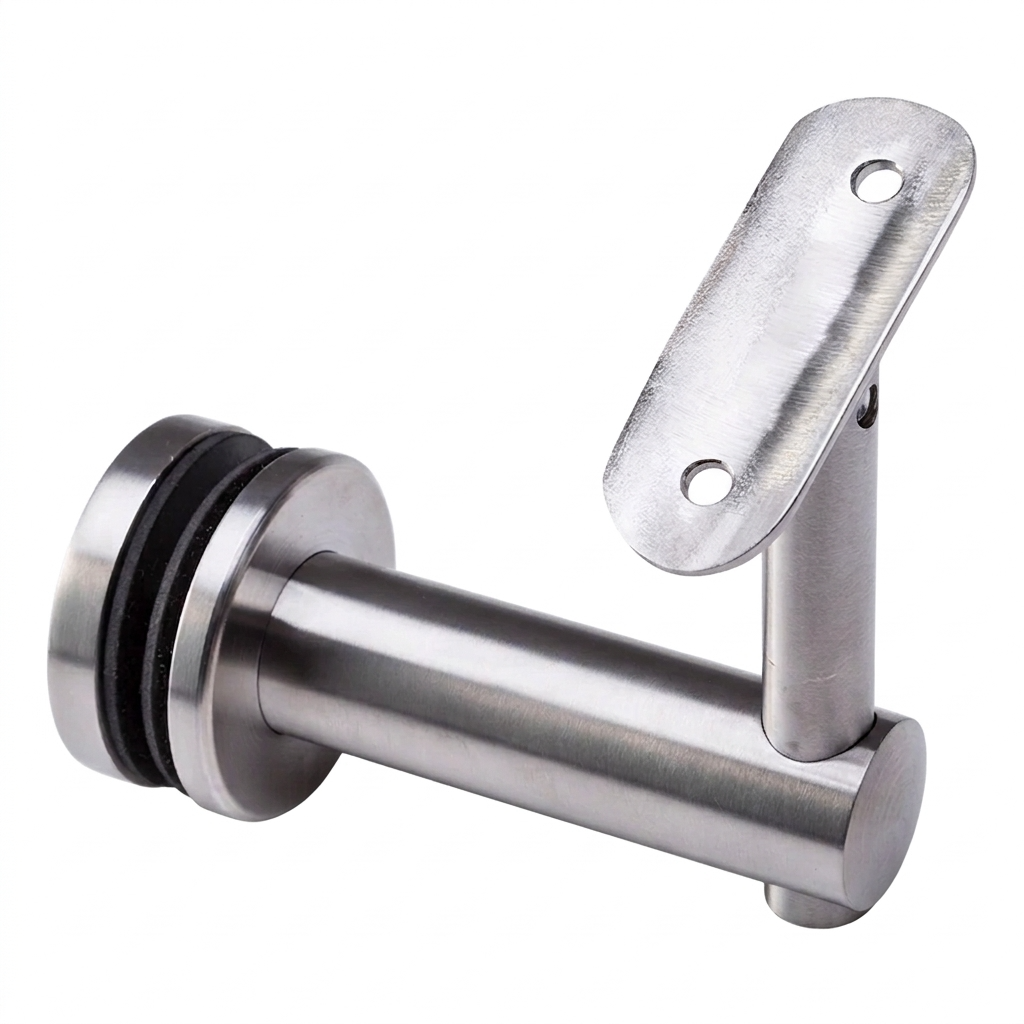

Glass Handrail Bracket Ø50 mm – 42.4 mm System, Articulated, AISI 304 Satin
Articulated glass handrail bracket with point-fixing — a reliable component for glass balustrades in the Ø 42.4 mm tube system. Thanks to its articulated design, it allows smooth adjustment of the saddle angle, enabling the handrail to be fitted to stairs, ramps and balconies without the need for additional adapters. Made from AISI 304 stainless steel in a satin finish — corrosion-resistant and easy to keep clean, suitable for both indoor and outdoor installation.
Universal glass fixing
The bracket is fitted with a Ø 50 mm ball joint with rubber seals, which clamps and stabilises glass panes with a thickness from 10 mm to 30 mm (including laminated glass 10.76–25.52 mm). The wide range of supported thicknesses allows a single bracket type to be used across different balustrade configurations — both with toughened glass and laminated VSG glass. The seals protect the glass from direct contact with metal, eliminating the risk of point-load cracking.
The articulated upper saddle is designed to fit a Ø 42.4 mm handrail tube and allows angle adjustment, enabling quick installation on staircases and slopes without the need to cut intermediate components.

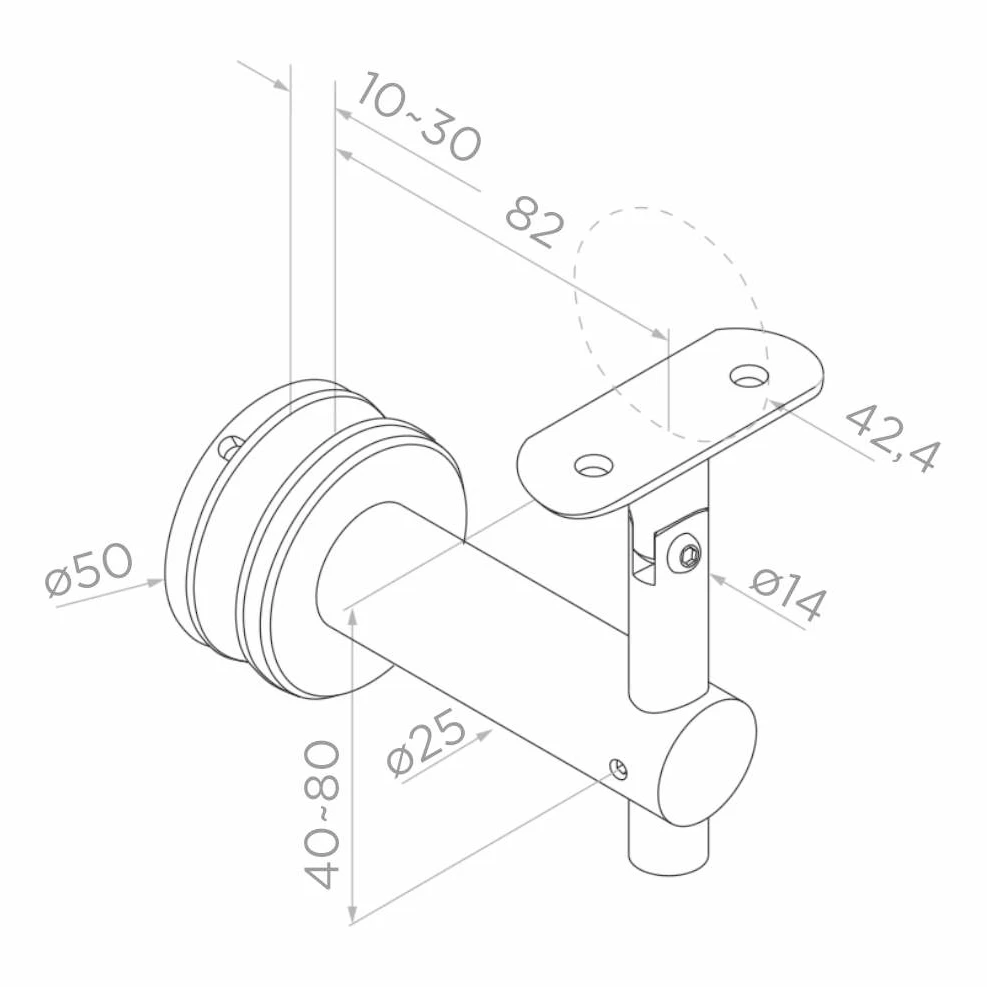

Dimensions and technical parameters
- Glass fixing diameter (ball joint): Ø 50 mm
- Supported glass thickness: 10–30 mm
- Arm length (depth from glass): 82 mm
- Support arm diameter: Ø 25 mm
- Adjustable bracket height: 40–80 mm
- Support pin diameter: Ø 14 mm
- Handrail tube diameter (system): Ø 42.4 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Handrail connection type: articulated
- Weight: 0.65 kg
- EAN: 5901289671767
Benefits for installation teams
- Fast installation — the joint eliminates the need for precise cutting and welding of additional angle components
- Wide glass thickness range — a single bracket for panes from 10 to 30 mm reduces the number of stock items needed
- Adjustable height (40–80 mm) — flexible fit to various stair and balcony profiles
- Satin AISI 304 steel — an aesthetic, stainless finish resistant to weather conditions and easy to clean
- Protective seals — secure glass fixing without risk of mechanical damage
The bracket is an integral part of stainless steel glass balustrade systems. It is compatible with Ø 42.4 mm handrail tubes and standard toughened and laminated glass panes used in modern balustrades. Ideal for use in residential buildings, offices and public facilities where structural durability and aesthetic appearance are required.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
