Glass-clamp handrail Ø 42.4 mm AISI 304 satin – all-glass balustrade, L=2500 mm
0
Description

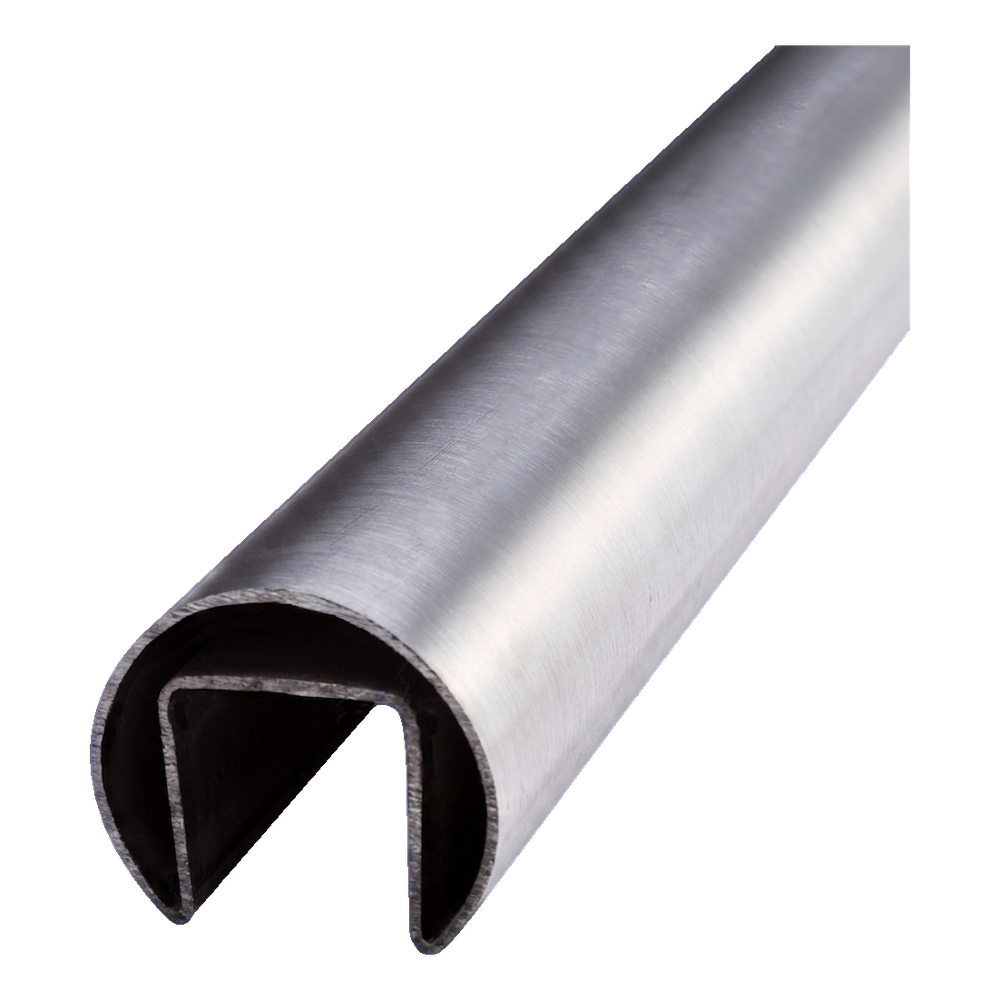

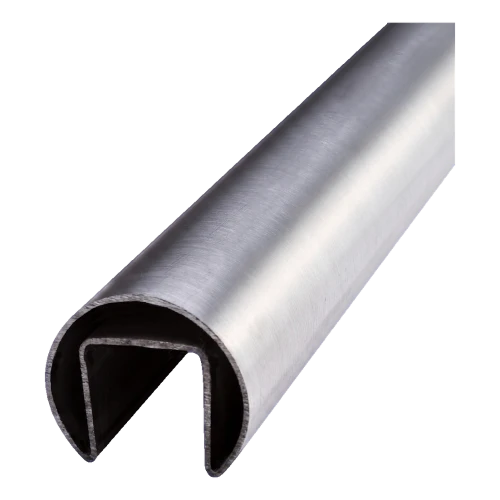

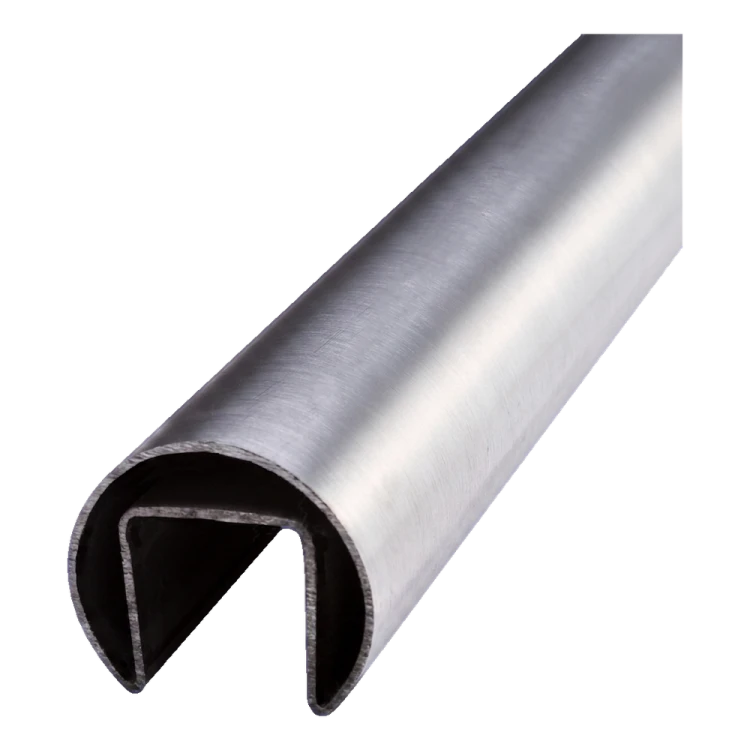

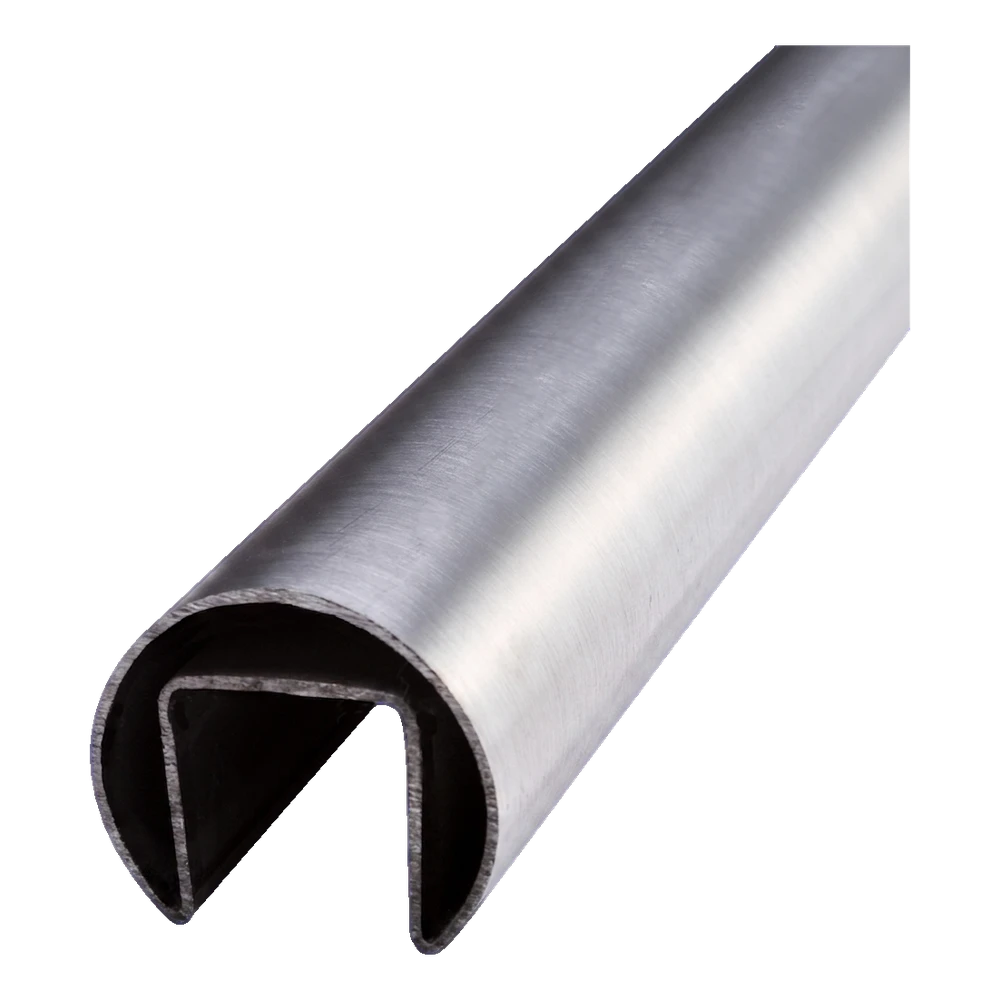

Glass-clamp handrail Ø 42.4 mm AISI 304 satin – all-glass balustrade, L=2500 mm
Glass-clamp handrail with diameter Ø 42.4 mm and length 2500 mm — ready finishing element for all-glass balustrades. Designed for mounting on glass panels with thickness from 8 to 21.52 mm, ensuring compatibility with most popular configurations of toughened and laminated glass used in interior and exterior balustrades.
Profile made from AISI 304 stainless steel with satin finish — the matt surface is scratch-resistant, easy to maintain and perfectly complements modern interior arrangements and building facades. Stainless steel provides high corrosion resistance, translating to installation durability without need for additional maintenance.
Assembly and installation method
The handrail is mounted by placing it over the top edge of the glass panel. First, a special rubber seal with length corresponding to the handrail length is applied to the glass, then the profile is fitted. After mounting, the handrail can be additionally secured with anaerobic adhesive for metal, which bonds in contact with metal and hardens after air supply is cut off. Such mounting ensures permanent and aesthetic connection without visible fastening elements.

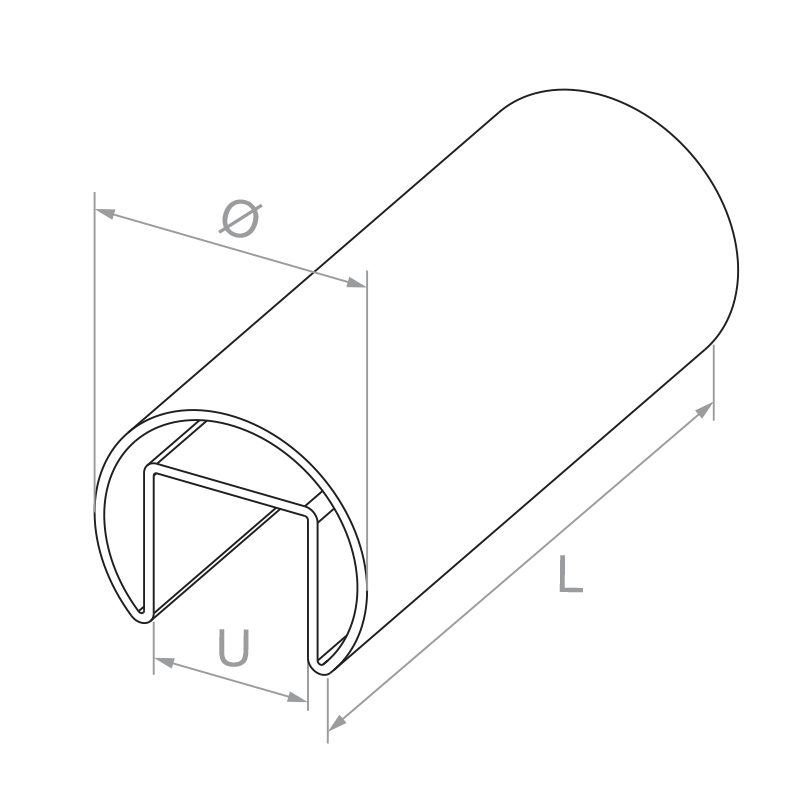

Technical parameters
- External diameter (Ø): 42.4 mm
- Length (L): 2500 mm
- Mounting channel width (U): 24 mm
- Glass thickness: 8–21.52 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- System: 42.4
- Weight: 4.76 kg
- EAN: 5901289672344
Application
The glass-clamp handrail is designed for all-glass balustrades — serving simultaneously as handrail and finishing element for the top edge of glass panel. Used in residential buildings, commercial facilities, hotels and office buildings — wherever combination of modern aesthetics with user safety is required. Length of 2.5 m allows covering standard balustrade sections with minimal number of joints.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
