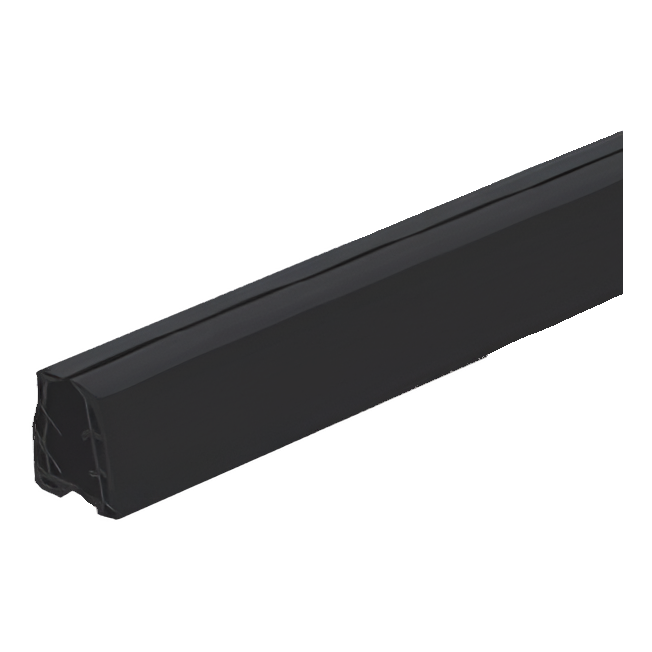

Glass clamp gasket for glass-mounted handrail 11.5–13.5 mm, 24×24 mm, black
0
Description
Glass clamp gasket for glass-mounted handrail 11.5–13.5 mm, 24×24 mm, black
Clamp rubber for glass-mounted handrail designed for glass balustrades. The gasket stabilises and secures glass panels of 11.5–13.5 mm thickness inside the handrail, eliminating play and vibrations. Thanks to the flexible profile, installation is quick and requires no specialist tools — simply glue the gasket inside the handrail and then mount the glass.
The product is sold in sections of 2500 mm (2.5 m) length, which facilitates precise cutting to size and minimises material waste on site. The black colour of the gasket ensures a discreet, aesthetic appearance when installed in the handrail.
Technical parameters
- Application: glass-mounted handrail for glass balustrades
- Supported glass thickness: 11.5–13.5 mm

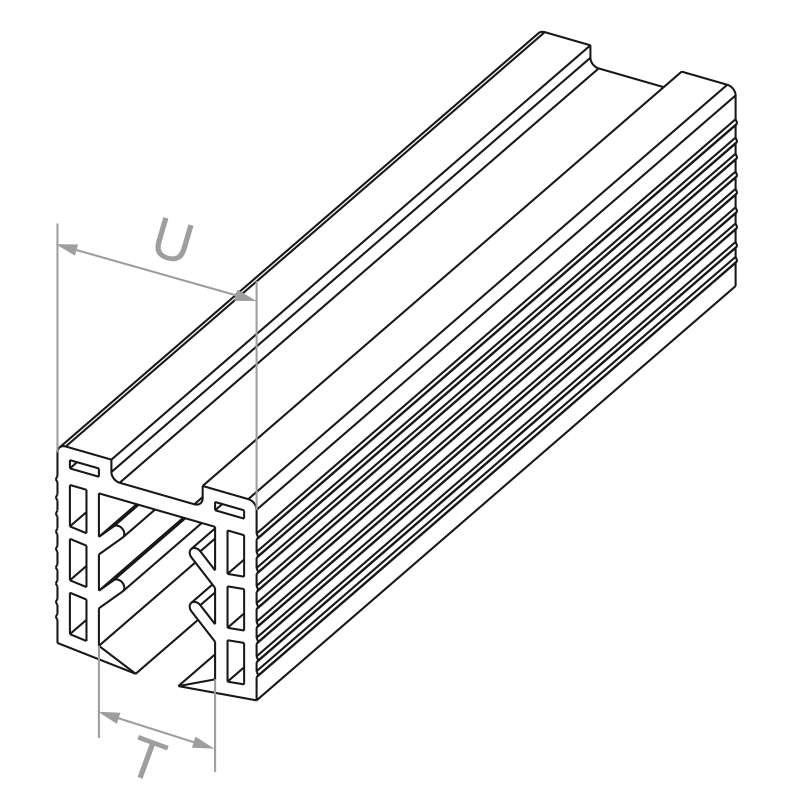

- Profile cross-section (U × T): 24 × 24 mm
- Section length: 2500 mm
- Material: rubber
- Colour: black
- Weight: 0.62 kg
- EAN: 5901289672368
Installation and application
The gasket should be glued inside the glass-mounted handrail, then the handrail should be pushed onto the edge of the glass panel. The clamp rubber evenly distributes pressure on the glass, protecting it from mechanical damage and ensuring secure, play-free mounting. An ideal solution for installers implementing glass balustrades in residential buildings, offices and public utility facilities.
Technical data
| Material | Plastic |
