Glass canopy tie rod M12x1000 mm – stainless steel AISI 304, satin finish, right/left thread
0
Description

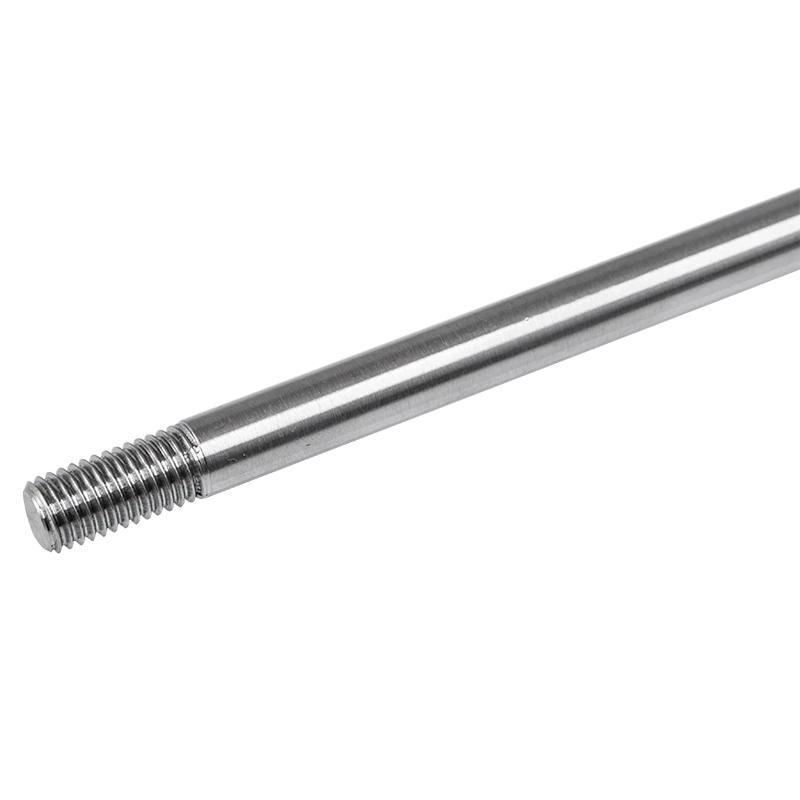

Glass canopy tie rod M12x1000 mm – stainless steel AISI 304, satin finish, right/left thread
Glass canopy tie rod M12x1000 mm is a professional structural element used in glass canopy systems. Made from AISI 304 stainless steel with satin finish, it combines high mechanical strength with elegant appearance. Thanks to right and left threads on both ends of the rod, it enables precise length adjustment after installation — without the need to dismantle the entire tie rod.

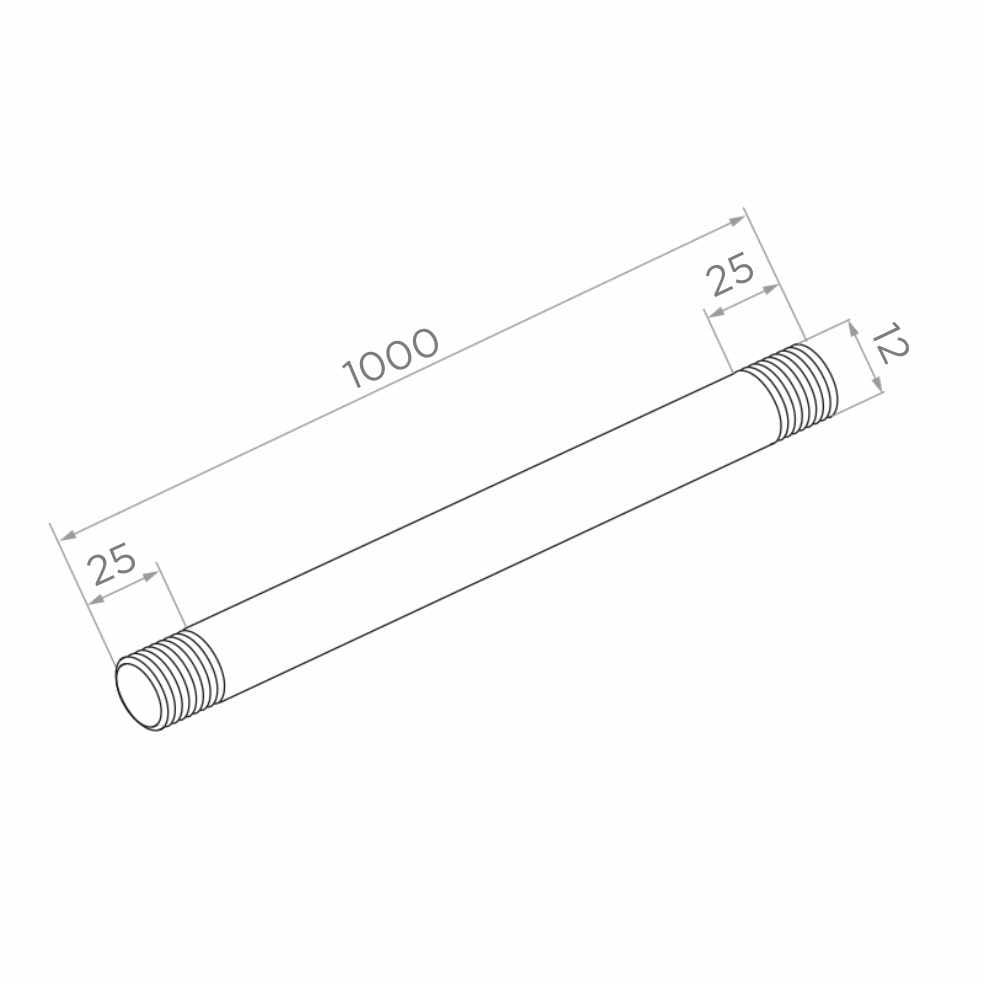

Dimensions and technical parameters
- Total length: 1000 mm
- Rod diameter: 12 mm
- Thread: M12 right/left
- Thread length (each end): 25 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.88 kg
- EAN: 5901289674225
Universal application in glass canopies
The tie rod is designed for mounting all types of glass canopies providing protection against weather conditions — both in residential and commercial construction. The design with right thread on one end and left thread on the other end of the rod allows for smooth tension adjustment by rotating the rod around its axis. This is a solution particularly valued by installation crews, as it eliminates the need to unscrew the end fittings and significantly speeds up canopy structure adjustment.
Durability and aesthetics
AISI 304 stainless steel guarantees corrosion resistance in external conditions, which is crucial for elements exposed to rain, snow and variable temperatures. The satin surface finish gives the tie rod a modern, elegant character — the element serves both structural and decorative functions, perfectly complementing glass canopies and building facades.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Glass Thickness [mm] | 10,38-17,52 |
