Glass canopy tie rod M12 × 1500 mm – AISI 304 stainless steel, right/left thread
0
Description
Glass canopy tie rod M12 × 1500 mm – AISI 304 stainless steel, right/left thread
Glass canopy tie rod M12 × 1500 mm is a durable structural element designed for mounting glass canopies above entrances to residential and commercial buildings. The rod made from AISI 304 stainless steel with satin finish combines high corrosion resistance and weather resistance with an elegant, modern appearance — thus serving both load-bearing and decorative functions simultaneously.
The M12 thread cut on both ends of the rod — right-hand on one and left-hand on the other — enables convenient adjustment of the tie rod length directly at the installation site, without the need for cutting or additional machining. This is a universal solution that significantly speeds up installation work and allows precise adjustment of the cable tension to the canopy geometry.

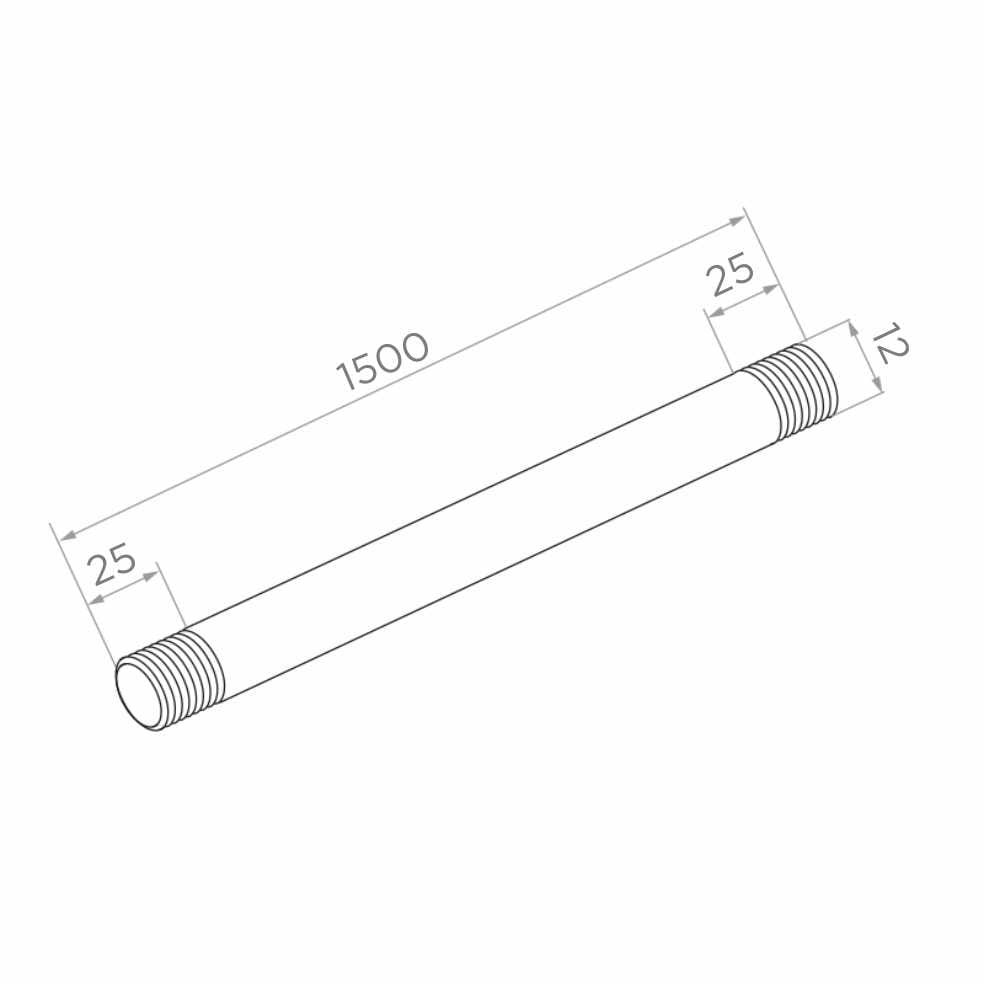

Dimensions and technical data
- Total length: 1500 mm
- Rod diameter: Ø12 mm
- Thread: M12 — right/left (on both ends)
- Thread length (each end): 25 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 1.33 kg
- Type: universal
- EAN: 5901289674249
Application
The tie rod is designed for glass canopy systems mounted on the exterior of buildings. It serves as a structural element supporting the glass canopy and transferring loads to the building wall. Thanks to its construction from AISI 304 stainless steel, the product maintains full strength properties and aesthetics even after many years of exposure to rain, snow and UV radiation. The satin surface gives canopy elements a consistent, modern character — particularly when combined with stainless steel fittings and connectors.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Glass Thickness [mm] | 10,38-17,52 |
