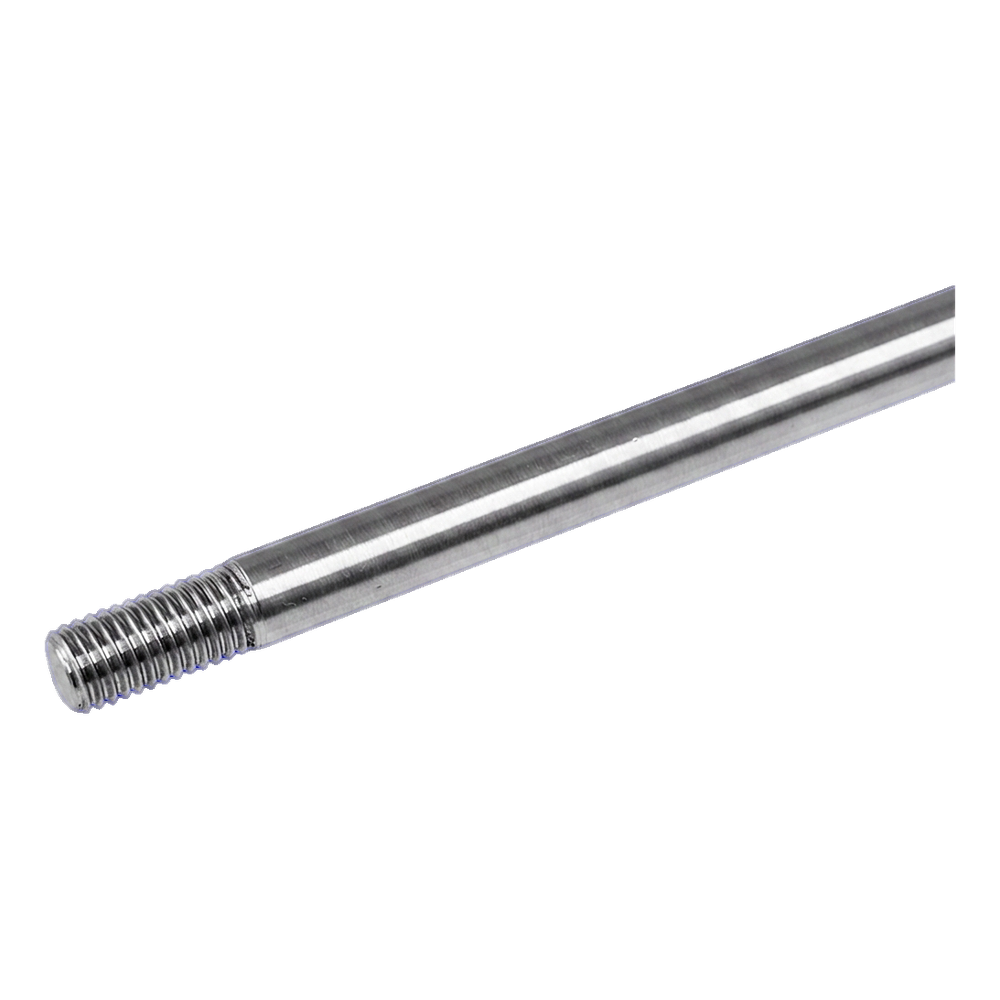

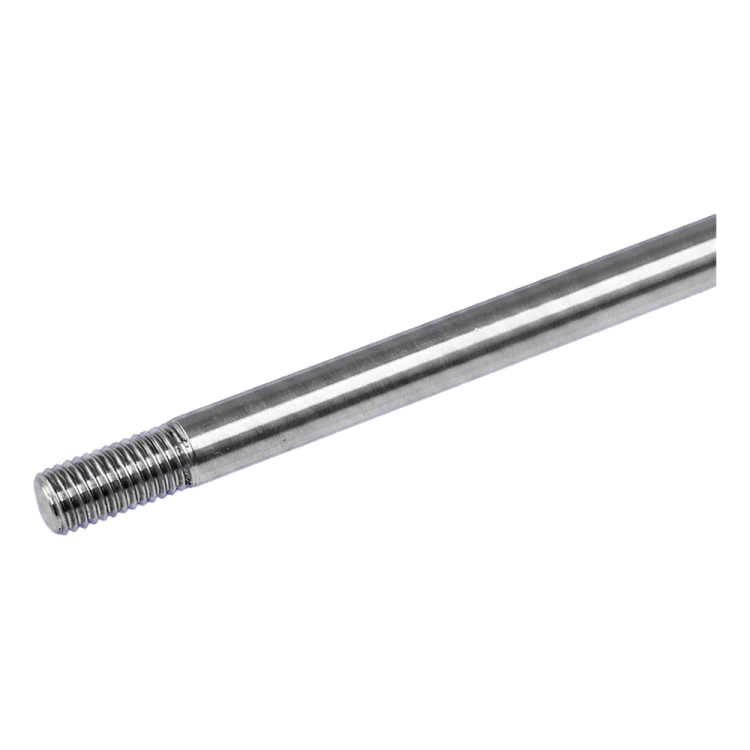

Glass canopy tie rod M10×1500 mm stainless steel AISI 304 – right/left thread, satin
0
Description
Glass canopy tie rod M10×1500 mm stainless steel AISI 304 – right/left thread, satin
Glass canopy tie rod M10×1500 mm is a robust structural element designed for mounting glass canopies above entrances to residential and commercial buildings. The stainless steel rod made from AISI 304 with right and left threads at both ends enables convenient tension adjustment, significantly speeding up installation and precise canopy positioning.
Thanks to the use of right and left threads (one at each end) the tie rod functions as an adjustable turnbuckle — rotating the rod simultaneously shortens or lengthens the connection without the need to unscrew either side. This solution allows for quick and trouble-free tension adjustment directly at the installation site.
The satin finish surface gives the tie rod an elegant, understated appearance that perfectly complements modern façades with glass and steel. The element therefore serves not only a structural function, but also a decorative one.

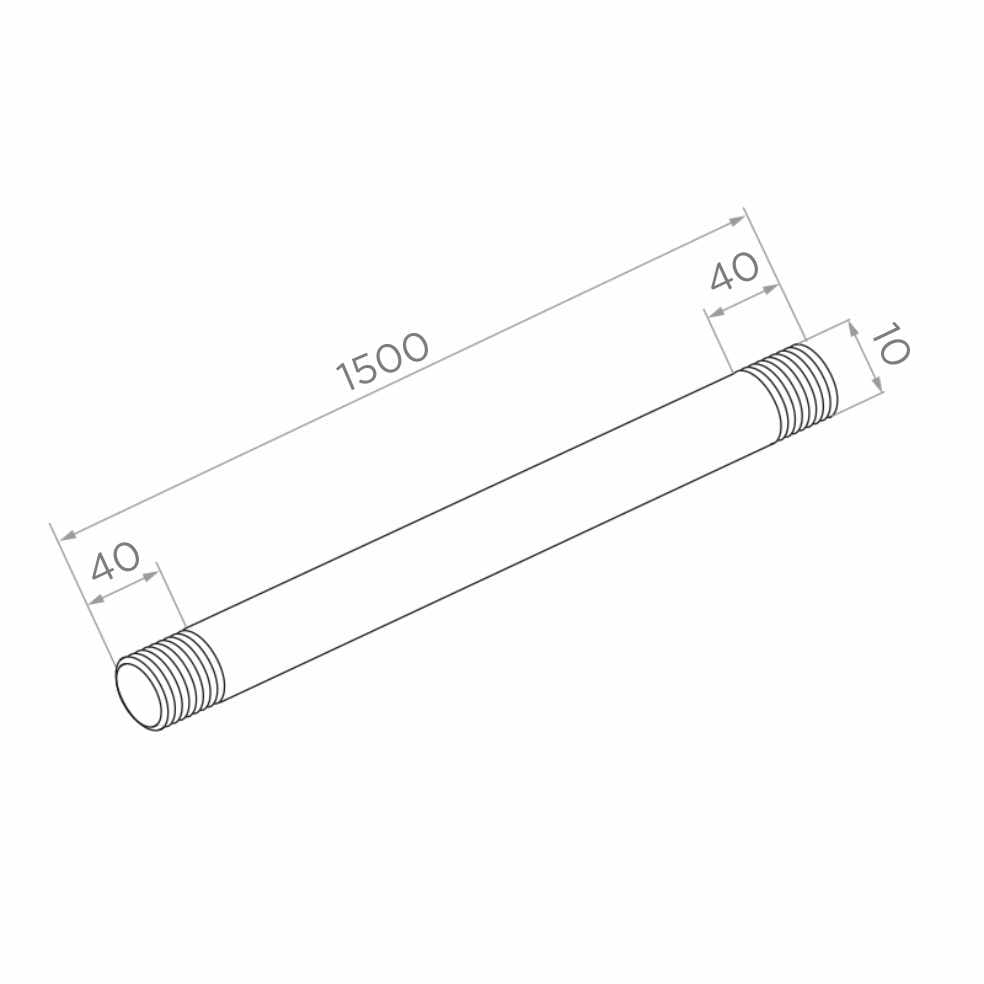

Dimensions and technical specification
- Total length: 1500 mm
- Rod diameter: 10 mm (M10)
- Thread length at each end: 40 mm
- Thread type: right / left (universal)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.95 kg
- EAN: 5903313203524
Application
The tie rod is intended for mounting all types of glass canopies protecting against rain, snow and other atmospheric conditions. Used externally on buildings — both residential and commercial (offices, hotels, retail facilities). AISI 304 stainless steel ensures high corrosion resistance, thanks to which the tie rod maintains durability and aesthetic appearance even in demanding external conditions.
Benefits for the installer
- Adjustment without dismantling — right/left thread allows smooth tensioning and loosening of the tie rod by rotating the rod
- Versatility — fits typical glass canopy systems with M10 fittings
- Durability — AISI 304 steel resistant to corrosion in atmospheric conditions
- Aesthetics — satin finish requires no additional surface treatment
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Glass Thickness [mm] | 10,38-17,52 |
