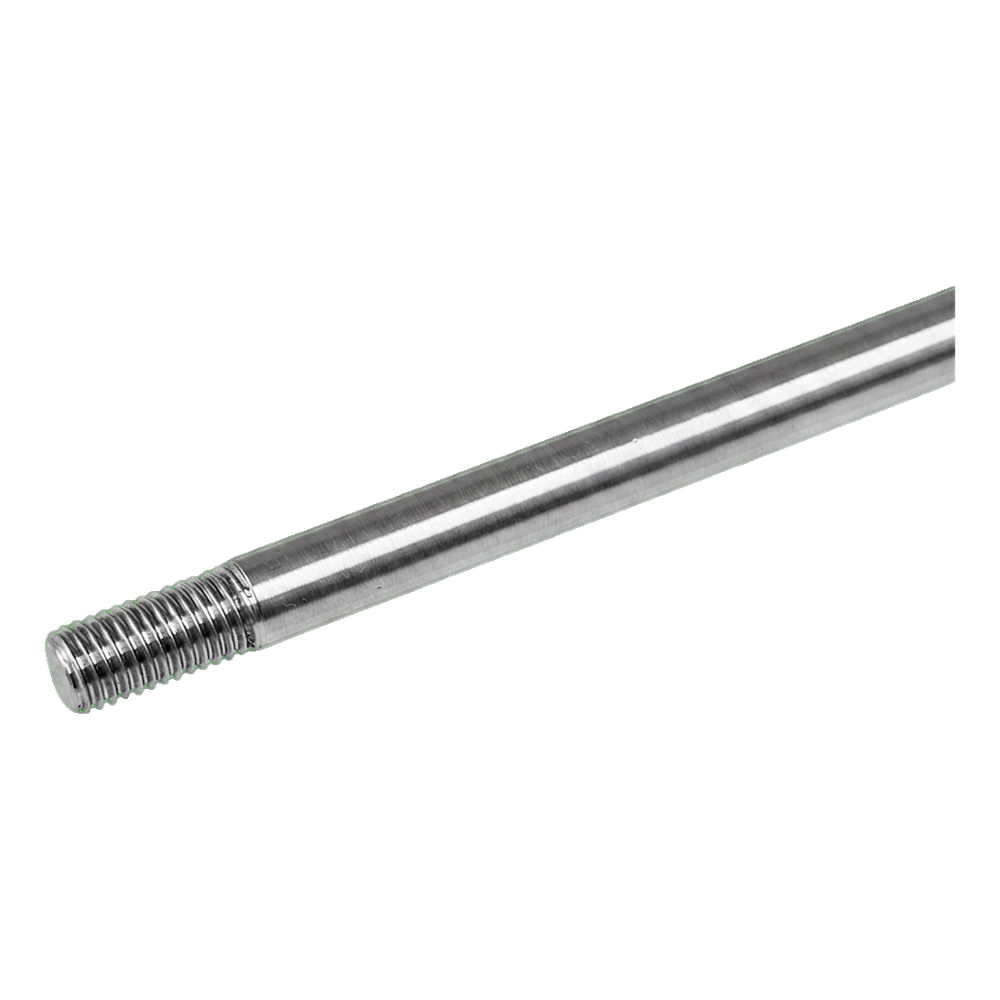

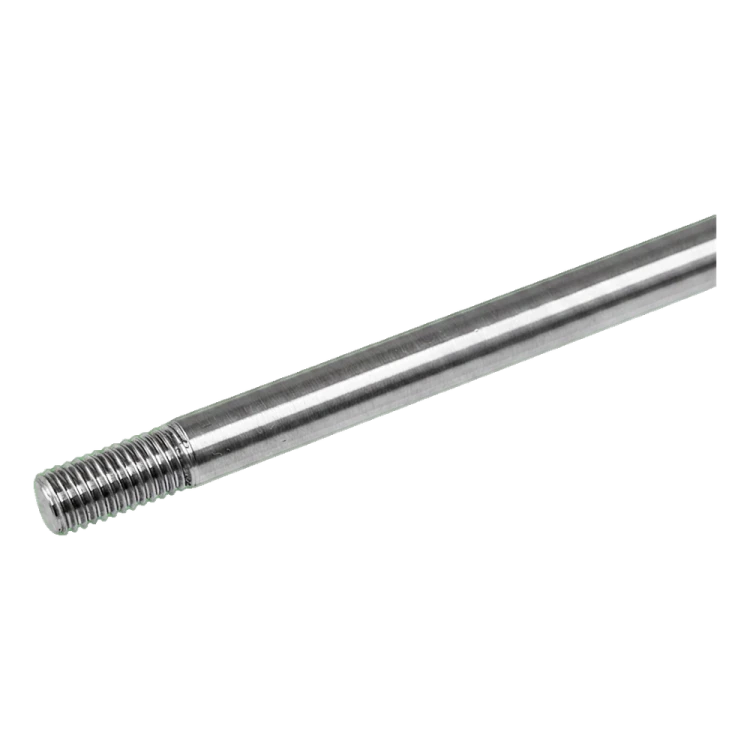

Glass canopy tension rod M10 × 1200 mm – stainless steel AISI 304, satin finish
0
Description
Glass canopy tension rod M10 × 1200 mm – stainless steel AISI 304, satin finish
Glass canopy tension rod M10 × 1200 mm is a durable mounting element designed for glass canopy constructions above entrances to residential and commercial buildings. Thanks to its construction from stainless steel AISI 304 and satin surface finish, it combines high resistance to weather conditions with elegant appearance — serving both structural and decorative functions.
The universal design with right-hand thread on one end and left-hand thread on the other allows for precise adjustment of length and tension of the rod without the need for dismantling — this significantly speeds up installation work and makes it easier to achieve perfect canopy tension.
Application
The tension rod is used in glass canopy systems mounted on building facades. It serves to support and tension glass canopy structures, protecting against rain, snow and other weather conditions. Ideal solution for companies installing canopies above entrances to office buildings, hotels, restaurants and single-family homes.

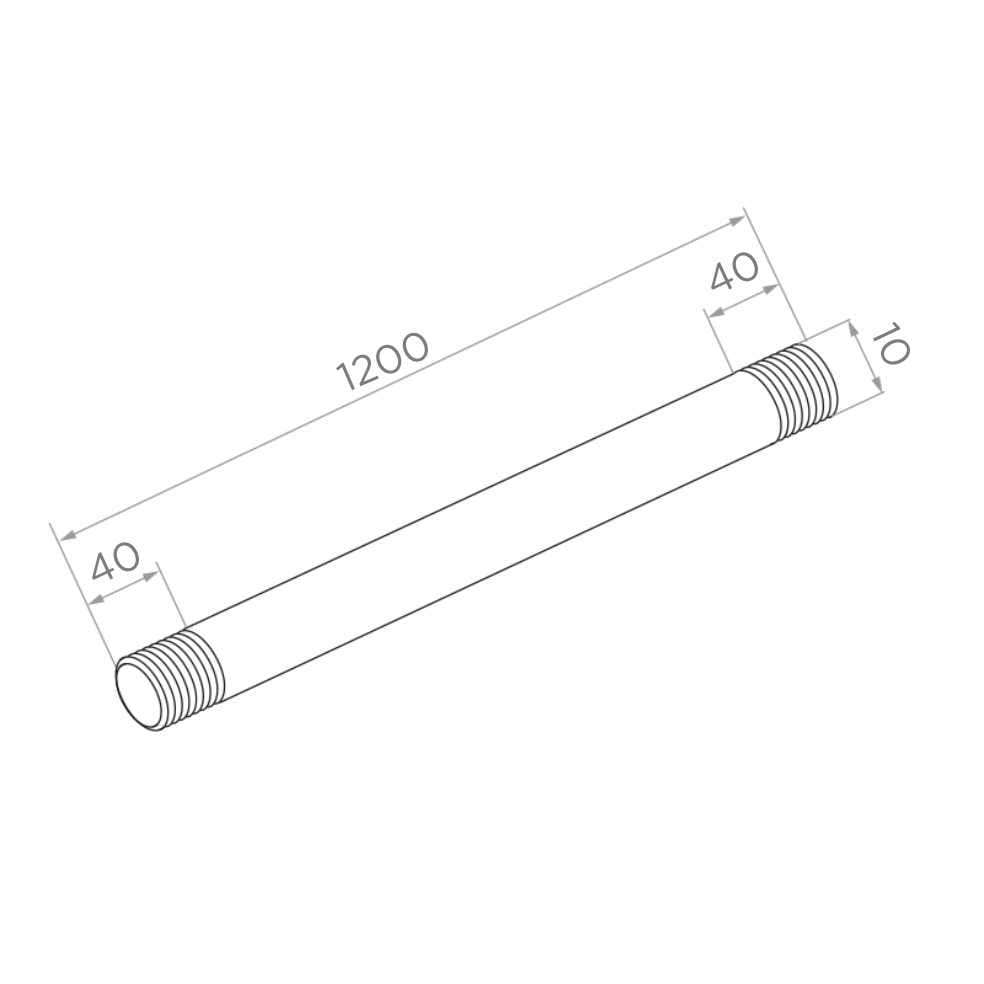

Technical parameters
- Overall length: 1200 mm
- Rod diameter: 10 mm
- Thread: M10 — right-hand on one end, left-hand on the other
- Thread length (each side): 40 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Version: universal
- Weight: 0.74 kg
- EAN: 5903313203517
AISI 304 material characteristics
Stainless steel AISI 304 (so-called acid-resistant steel 18/10) is one of the most commonly used steel grades in elements exposed to external factors. It is characterised by high corrosion resistance, including atmospheric and chemical corrosion, which guarantees long-term trouble-free operation of the tension rod without the need for maintenance. The satin surface finish additionally enhances aesthetic qualities and masks minor scratches that occur during installation.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Glass Thickness [mm] | 10,38-17,52 |
