PSG

Glass bracket 40x35x20 mm AISI304 system 42.4 satin

Go to Product feedback

Pinox glass bracket 40×35×20 mm made from AISI 304 steel with satin finish. Mounting element for glass balustrades system 42.4.

Go to full description
with VAT without VAT
Price €2.54
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] akcesoria-do-balustrad #123

  • Material AISI 304
  • Finish Satin
  • Mounting System 42.4 mm

Description

Pinox glass bracket 40×35×20 mm – AISI 304 steel, satin, system 42.4

Pinox glass bracket made from stainless steel AISI 304 with satin finish — a robust mounting element for stable fixing of glass panels in internal balustrades. Designed for flat system 42.4, it provides secure glass support and proper positioning on staircases, mezzanines, galleries and in residential and commercial buildings.

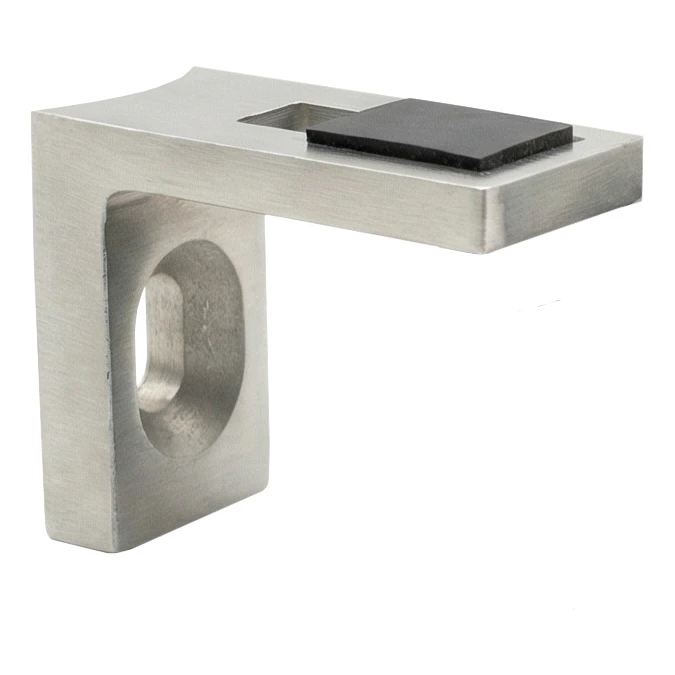

Pinox glass bracket made from AISI 304 steel – perspective view with rubber gasket
Pinox glass bracket made from AISI 304 steel – perspective view with rubber gasket

The L-shaped bracket profile enables stable seating of the glass panel, whilst the rubber gasket (EPDM) on the upper arm protects the glass surface from scratching and ensures even pressure distribution. Installation is carried out using the slotted hole in the vertical section, which allows position adjustment during fitting. The glass is secured with a fixing screw threaded M6 / M8 (screw not included in the set) screwed through the hole in the upper arm.

Durability and aesthetics of AISI 304 stainless steel

AISI 304 stainless steel provides high corrosion resistance, mechanical damage resistance and moisture protection — the bracket maintains its functional properties for many years even with intensive, daily use. Satin finish gives the element a modern appearance that complements glass and other balustrade components perfectly, whilst effectively masking minor scratches and fingerprints.

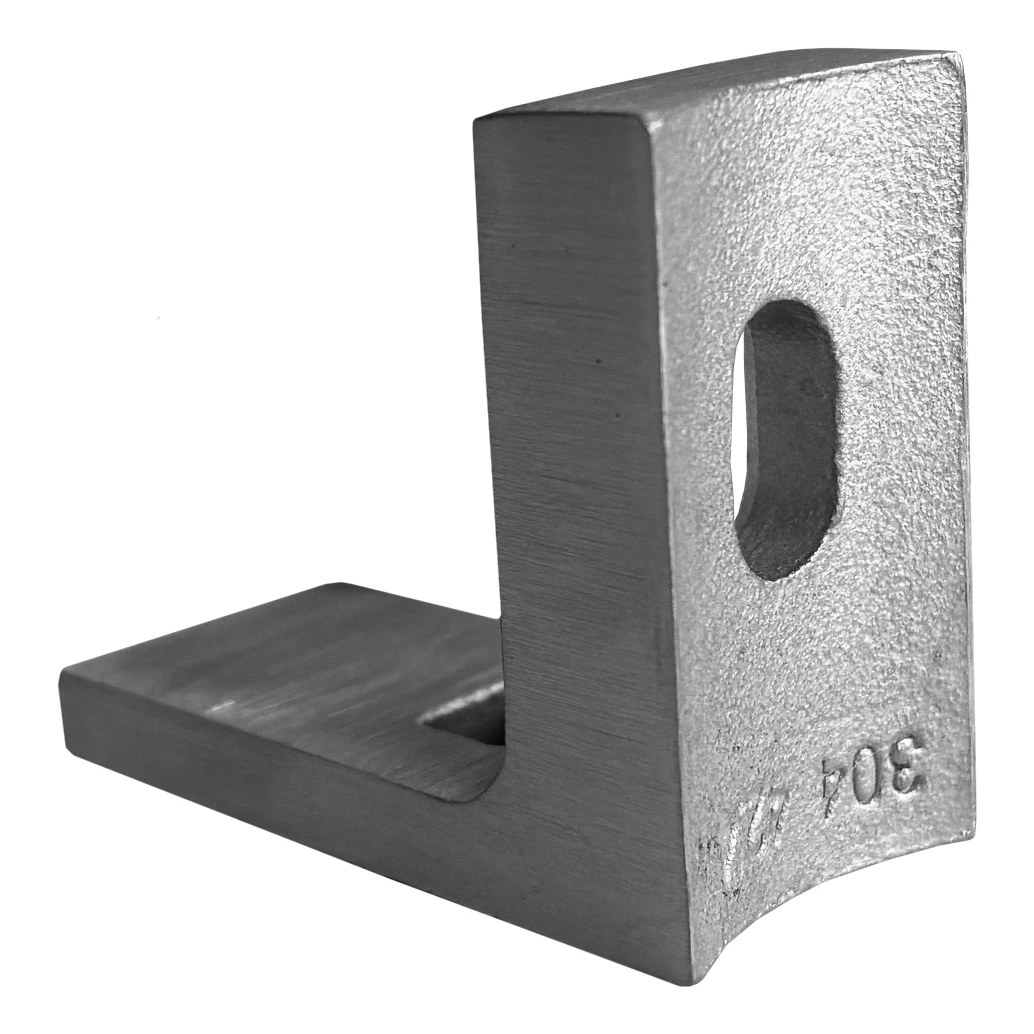

Glass bracket – rear view with 304 material marking
Glass bracket – rear view with 304 material marking

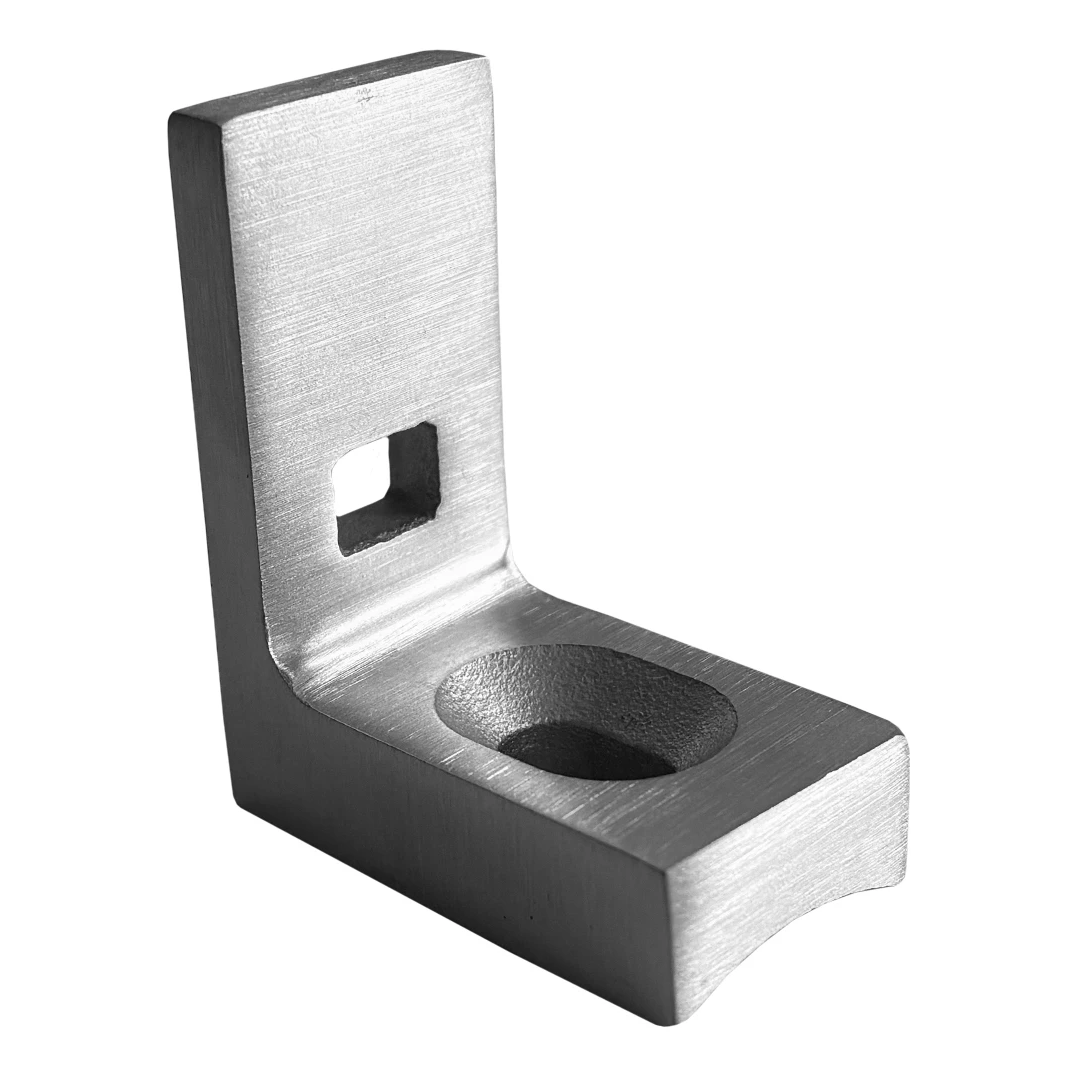

Glass bracket – bottom view with slotted hole and screw hole
Glass bracket – bottom view with slotted hole and screw hole

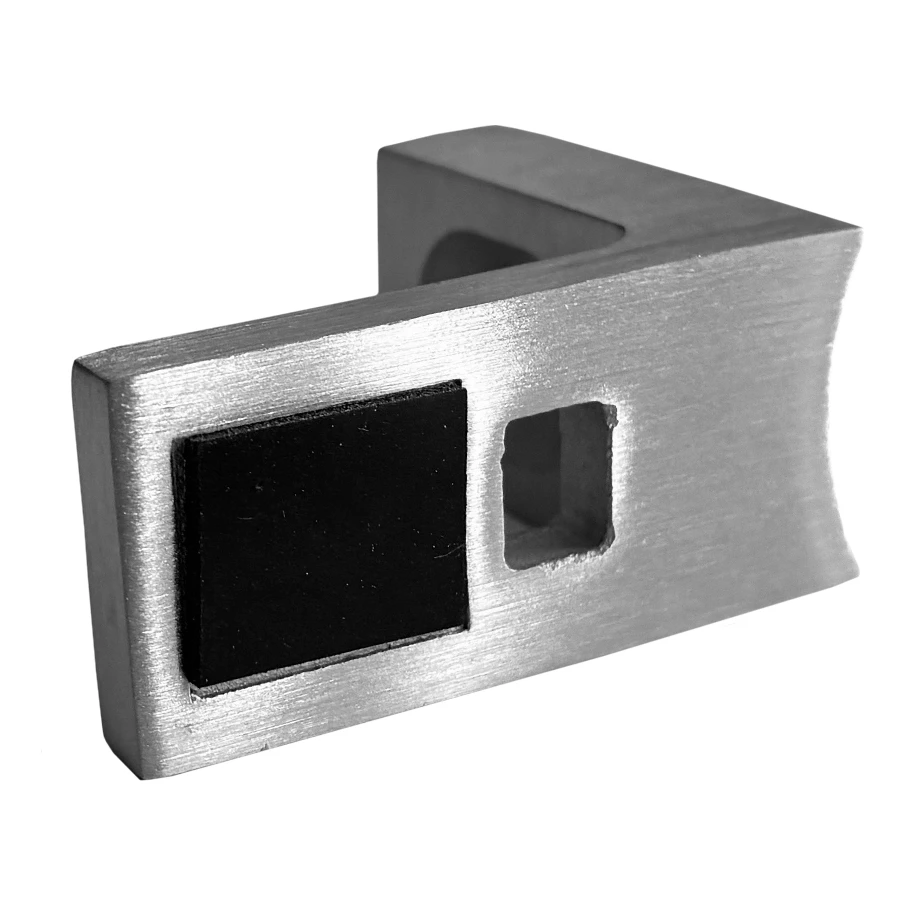

Glass bracket – top view of rubber gasket and fixing screw hole
Glass bracket – top view of rubber gasket and fixing screw hole

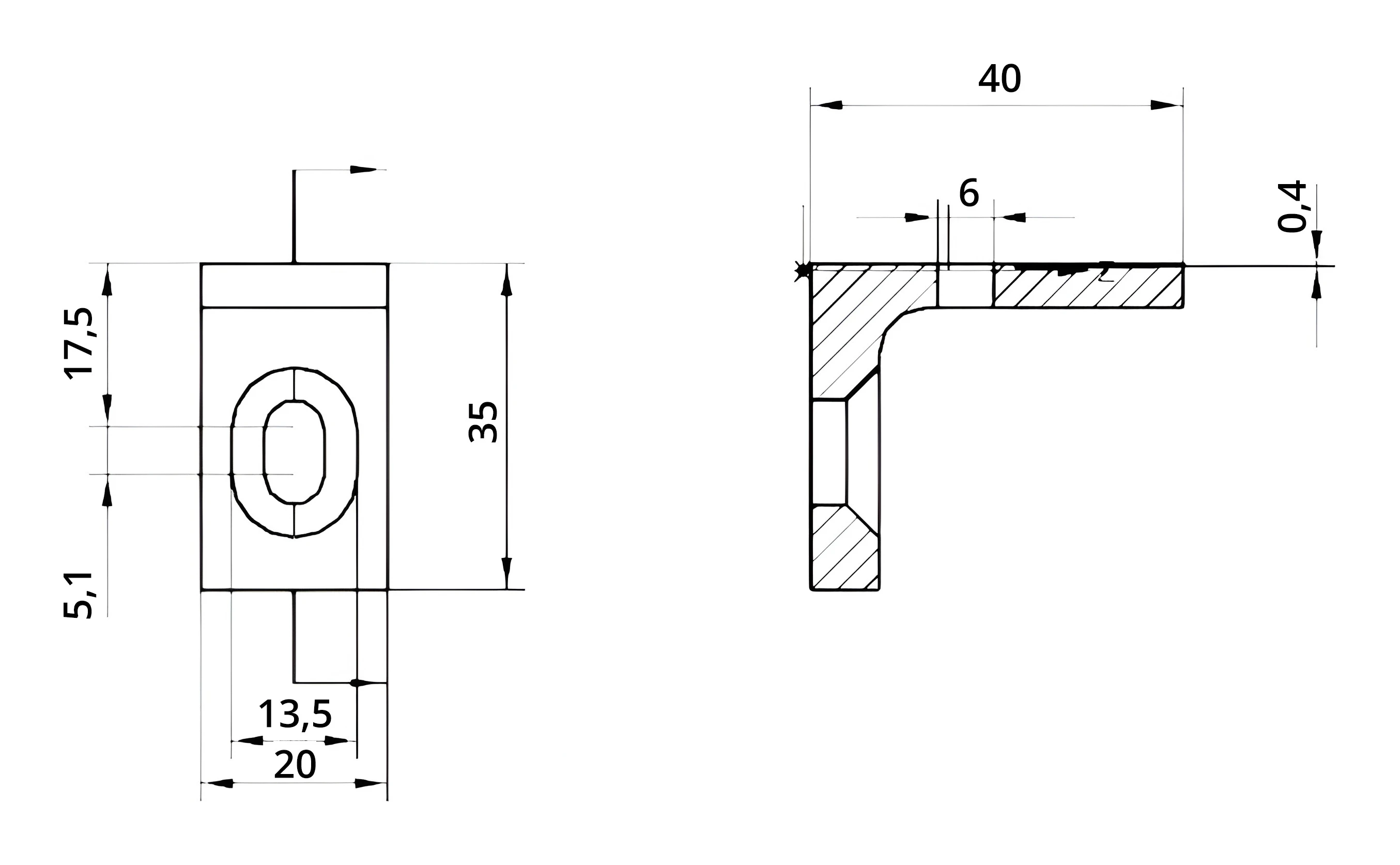

Dimensional drawing of glass bracket with front view and side section
Dimensional drawing of glass bracket with front view and side section

Dimensions and technical data

  • Depth (L): 40 mm
  • Total height (H): 35 mm
  • Width: 20 mm
  • Slotted hole axis from top edge: 17.5 mm
  • Slotted hole length: 5.1 mm
  • Mounting hole diameter: 10 mm
  • Screw hole in upper arm: 6 mm
  • Gasket recess depth: 0.4 mm
  • Fixing screw thread (not included): M6 / M8
  • Material: AISI 304 stainless steel
  • Finish: satin
  • System: flat 42.4
  • Weight: 0.05 kg
  • Volume: 56.7 cm³
  • EAN: 5903313208871

The Pinox bracket is a proven solution for installation companies undertaking glass balustrade projects — combining stainless steel durability, precision manufacturing and the aesthetics of satin finish in one compact element ready for immediate installation.
