Glass bracket 40x35x20 mm AISI304 flat system satin
Description

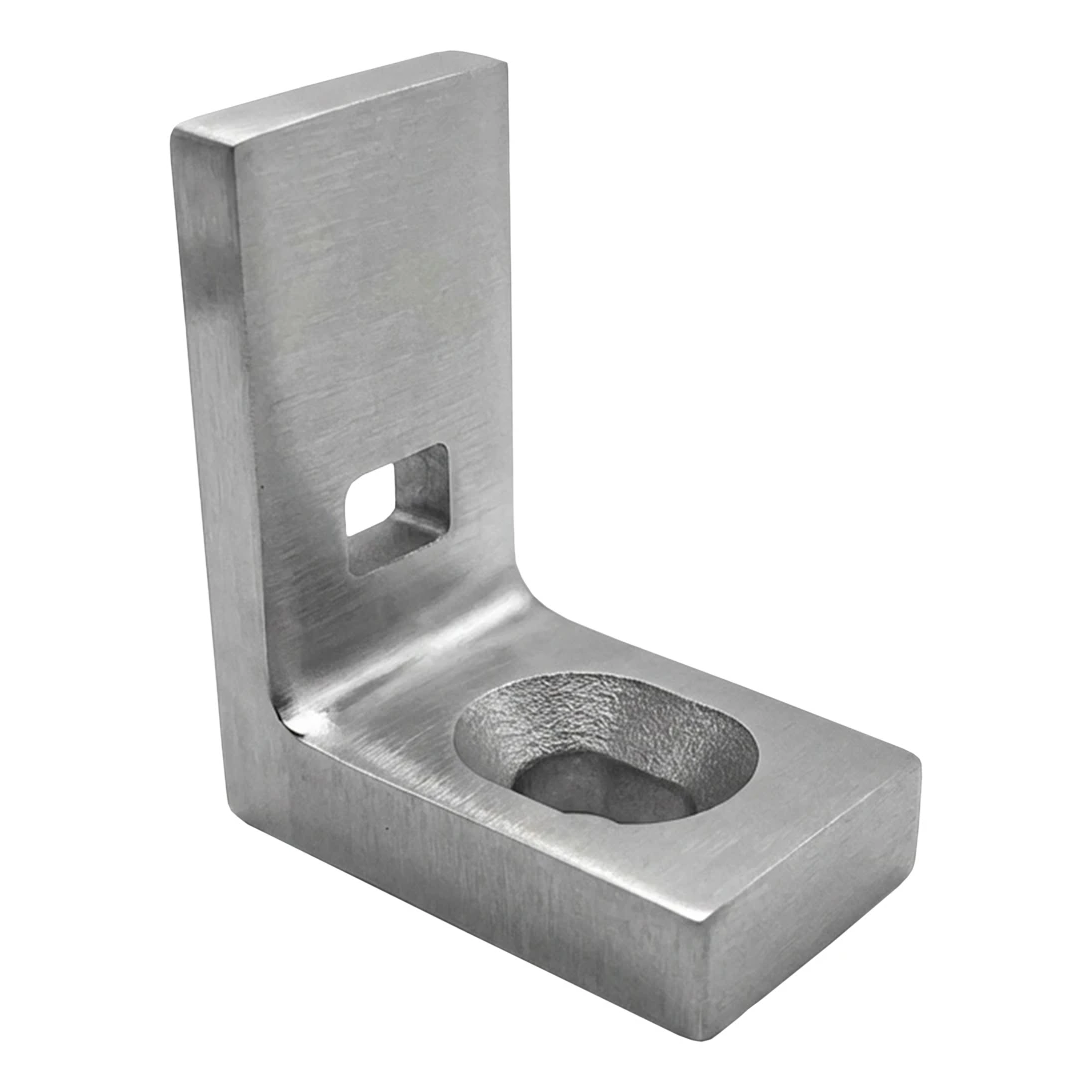

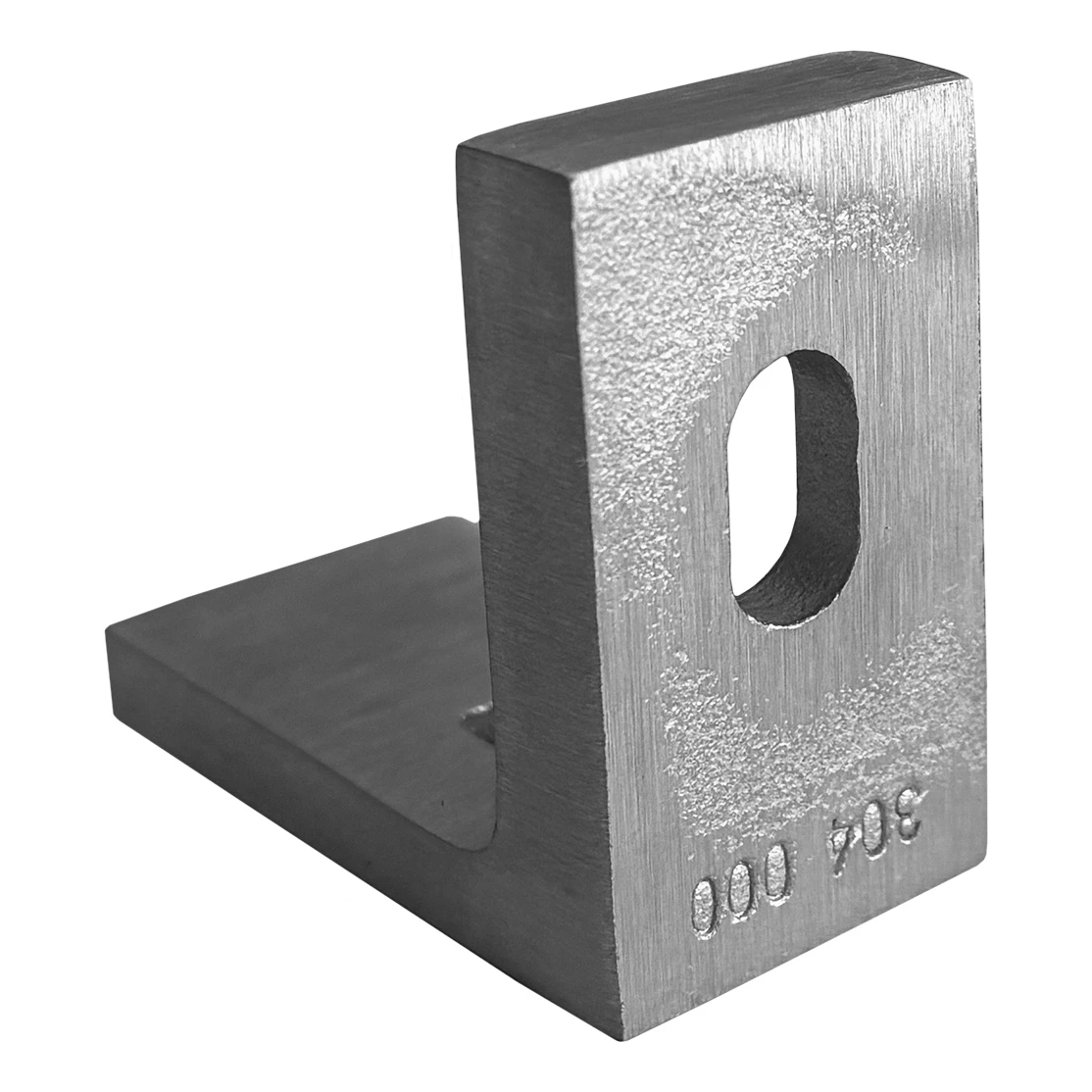

Pinox Glass Bracket 40×35×20 mm – AISI 304 Steel, Satin Finish, Flat System
Pinox Glass Bracket is a robust mounting element made from stainless steel AISI 304 designed for stable mounting of glass panels in internal balustrades. The satin finish gives it a modern, elegant appearance and reduces the visibility of minor scratches and fingerprints. Thanks to its construction adapted for flat system applications, the bracket is perfect for standard balustrade solutions — on staircases, mezzanines, galleries and in commercial buildings.
Secure Mounting and Easy Installation

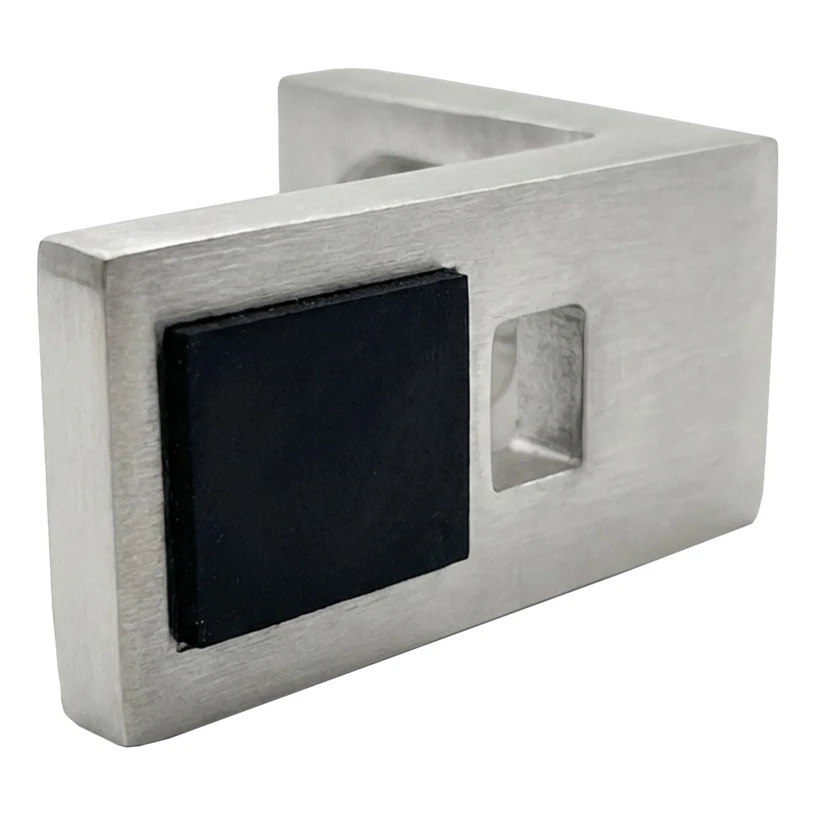

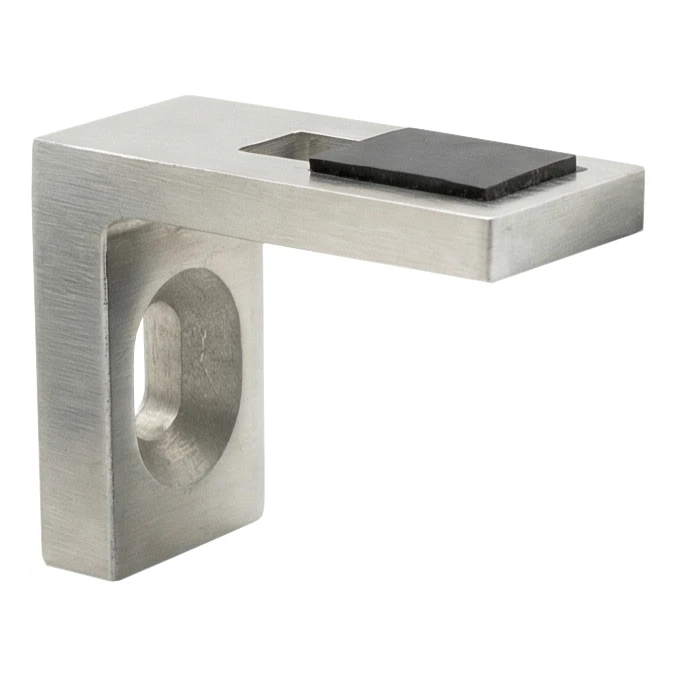

The bracket is equipped with a 10 mm diameter mounting hole (oval slot hole) enabling precise attachment to the load-bearing structure and M6/M8 clamping screw thread (screw not included in the set), which securely immobilises the glass. The rubber insert protects the glass from direct contact with metal, preventing scratches and ensuring even clamping pressure. The oval shape of the mounting hole allows for slight adjustment of the bracket position during installation, facilitating precise levelling of the entire balustrade.
Durability of AISI 304 Stainless Steel
AISI 304 steel is a material with high resistance to corrosion, moisture and mechanical damage, which translates to years of bracket operation without loss of properties and appearance. The satin surface complements glass and other balustrade elements perfectly, creating a cohesive, modern interior finish.

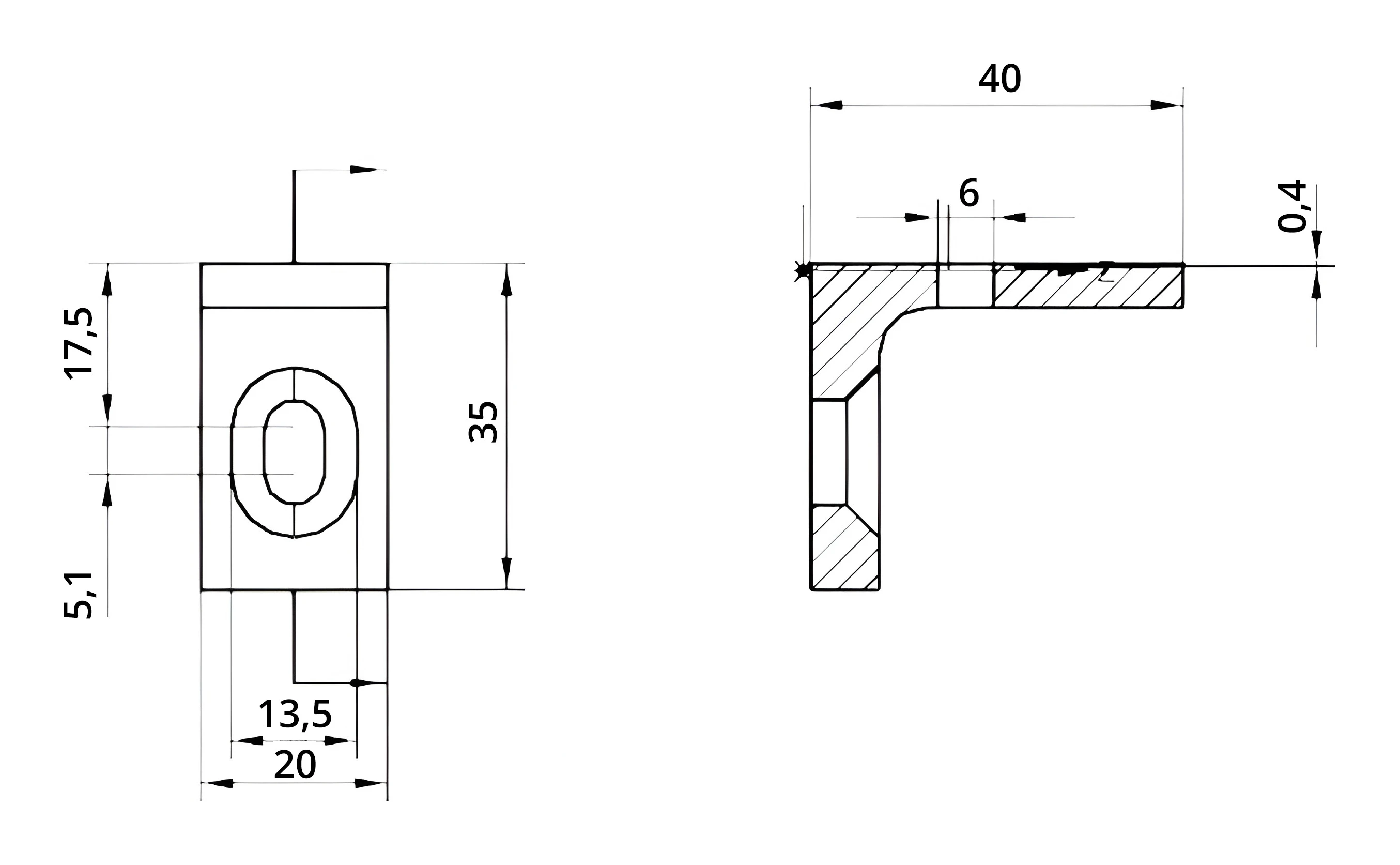

Dimensions and Technical Specification
- Depth (L): 40 mm
- Height (H): 35 mm
- Width: 20 mm
- Mounting hole diameter: 10 mm (slot hole with 5.1 mm adjustment)
- Mounting hole centre: 17.5 mm from top edge
- Clamping screw thread: M6 / M8 (screw not included in the set)
- Screw recess depth: 6 mm
- Horizontal arm thickness with undercut: 0.4 mm recess
- Material: stainless steel AISI 304
- Finish: satin
- System: flat
- Application: internal balustrades (residential and commercial buildings)
- Weight: 0.05 kg
- Volume: 56.7 cm³
- EAN: 5903313208888
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
