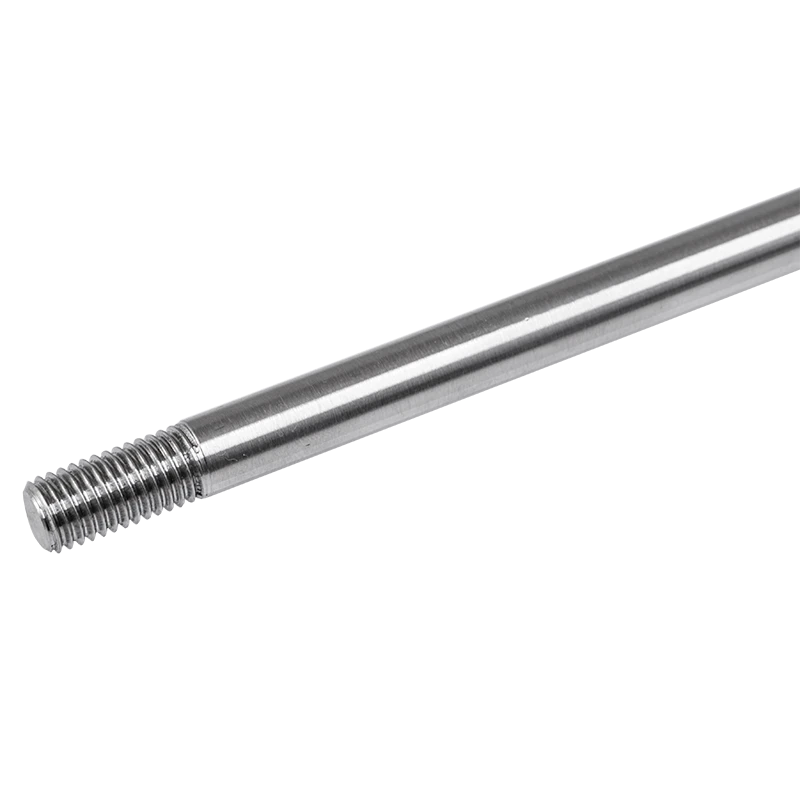

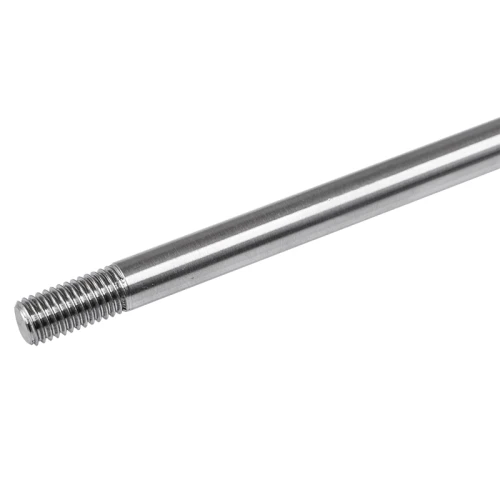

Glass Canopy Tie Rod M12×1200 mm AISI 304 – right/left thread, satin finish
0
Description
Glass Canopy Tie Rod M12×1200 mm AISI 304 – right/left thread, satin finish
Glass canopy tie rod M12×1200 mm is a durable structural element designed for mounting glass canopies above entrances to residential and commercial buildings. Made from stainless steel AISI 304 with satin finish, it combines durability with elegant appearance — serving both load-bearing and decorative functions.
Construction and dimensions

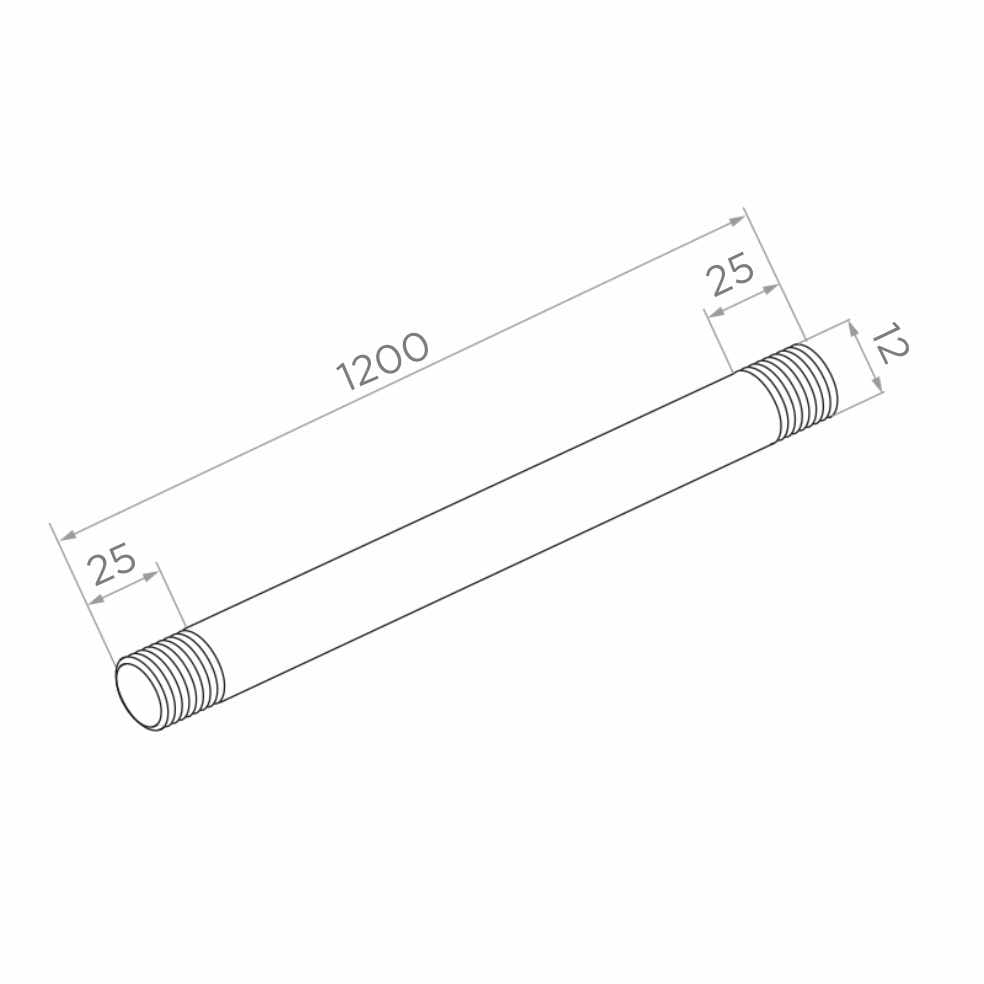

The tie rod is made from solid steel rod with diameter 12 mm and total length 1200 mm. Both ends are threaded for 25 mm each — one end has right-hand M12 thread, and the other left-hand M12 thread. This construction enables smooth length adjustment and tensioning directly at the installation site, without the need for additional adjustment connectors. Simply rotate the rod to precisely adjust the spacing between mounting points.
Material and finish
Stainless steel AISI 304 (chromium-nickel) provides excellent corrosion resistance in outdoor conditions — rain, snow, temperature variations or UV radiation do not affect the element's durability. The satin surface finish gives the tie rod a modern, understated appearance that harmoniously complements glass canopies and metal façade elements.
Application
The tie rod is a universal element of glass canopy systems mounted above entrances to residential, office and service buildings. Used as a tension member connecting the canopy structure to the building façade — it transfers loads from wind, snow and the glass's own weight to the anchor point in the wall. The universal version with right and left threads simplifies the installation process and eliminates the need to select separate variants.
Technical specification
- Total length: 1200 mm
- Rod diameter: 12 mm
- Thread: M12 right/left
- Thread length (each end): 25 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Version: universal (right + left thread)
- Weight: 1 kg
- EAN: 5901289674232
Technical data
| Finish | Satin |
| Glass Thickness [mm] | 10,38-17,52 |
| Material | AISI 304 |
