Gate strap hinge 600 mm – hinge arm for swing gates
Leave feedback on the product

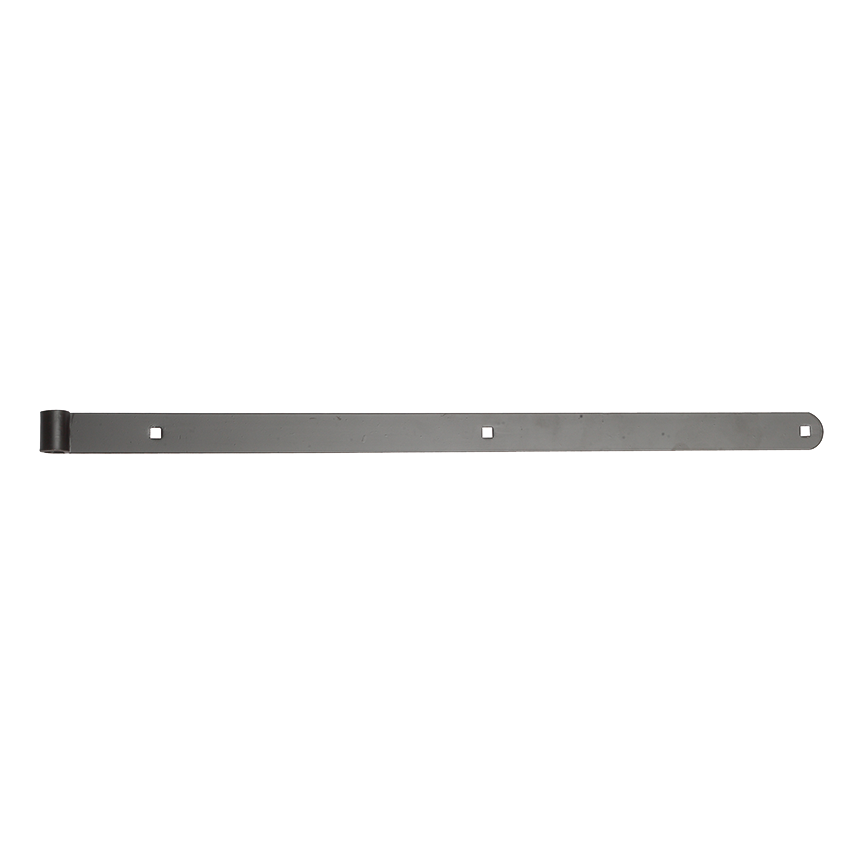

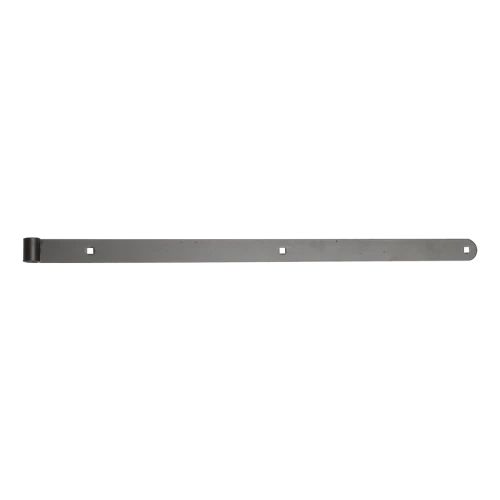

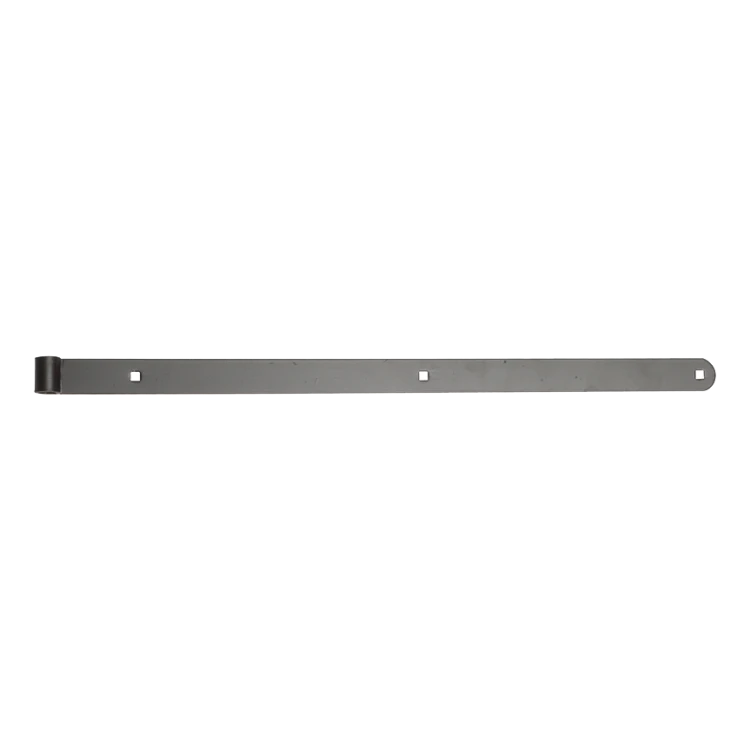

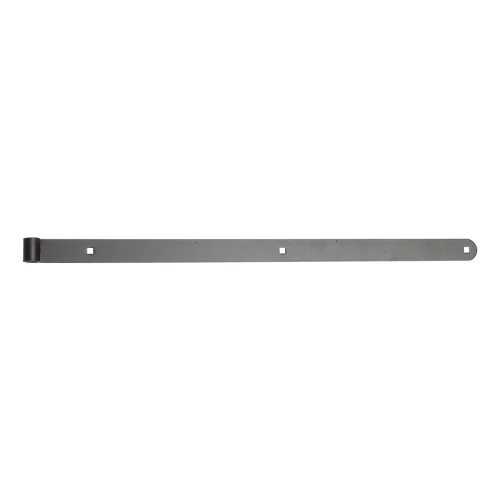

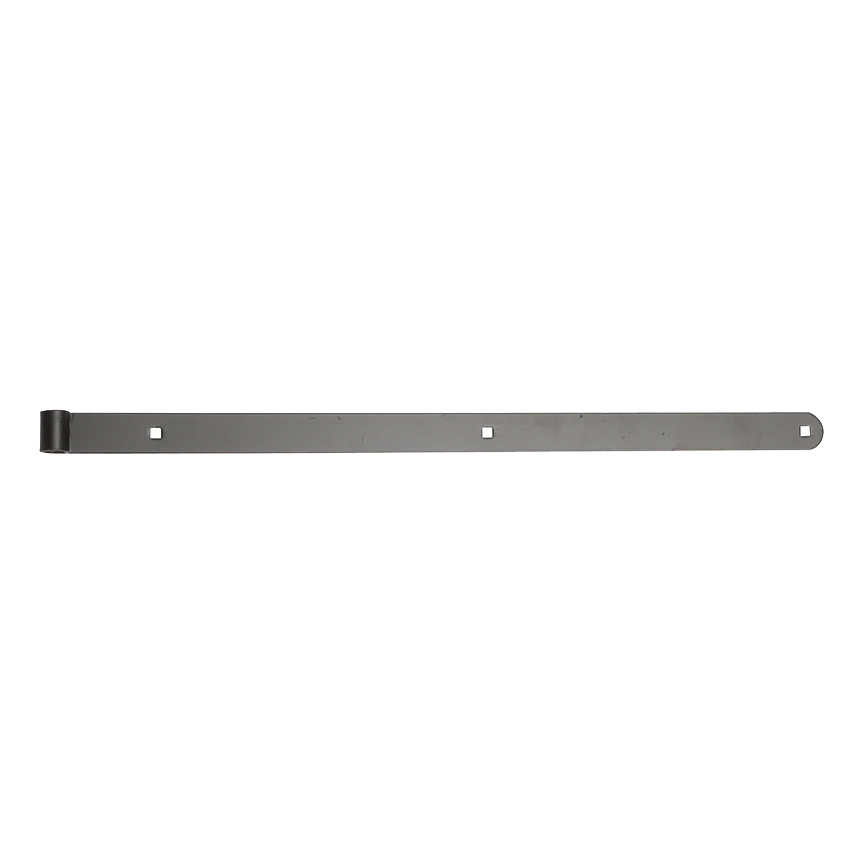

Gate strap hinge 600 mm made of steel. Arm length 600 mm, strap width 35 mm. Sleeve Ø14.2 mm, 3 square mounting holes. Weight 0.65 kg. For swing gates, wicket gates and fencing.
Product code: 001-504
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Gate strap hinge 600 mm – hinge arm for swing gates
Strap hinge 600/35 mm is a robust hinge arm designed for mounting swing gates, wicket gates and fencing. The solid steel construction with three square mounting holes for carriage bolts ensures secure and durable attachment of the gate leaf to the post. The product is suitable wherever reliable hinge performance is required during daily, intensive use.
The hinge arm has at one end a sleeve with an internal diameter of Ø14.2 mm, onto which the pin mounted in the gate post is fitted. Three square mounting holes distributed evenly along the length of the strap enable the hinge to be screwed to the gate leaf using carriage bolts (bolts with square heads). The rounded end of the arm prevents catching and facilitates safe operation.

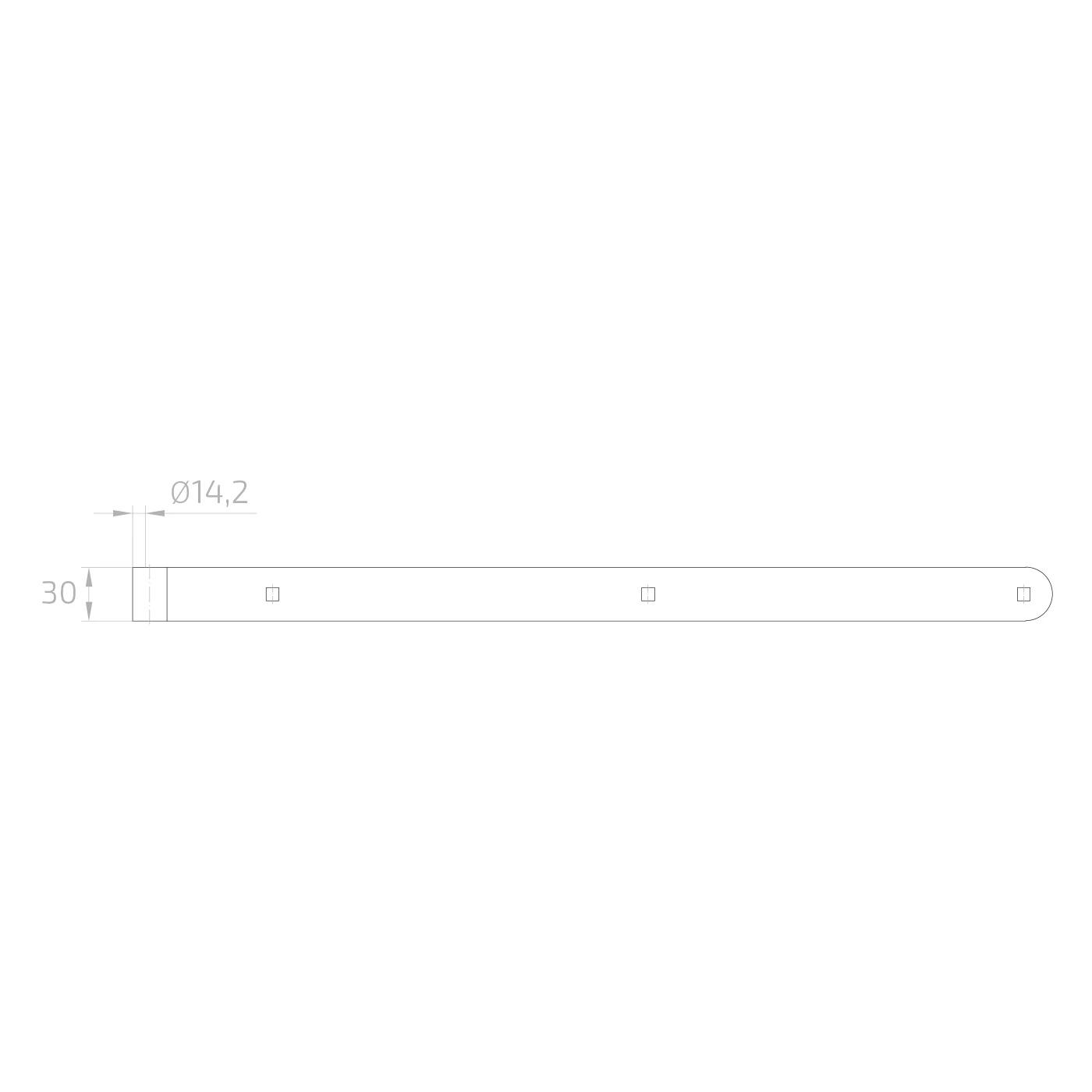

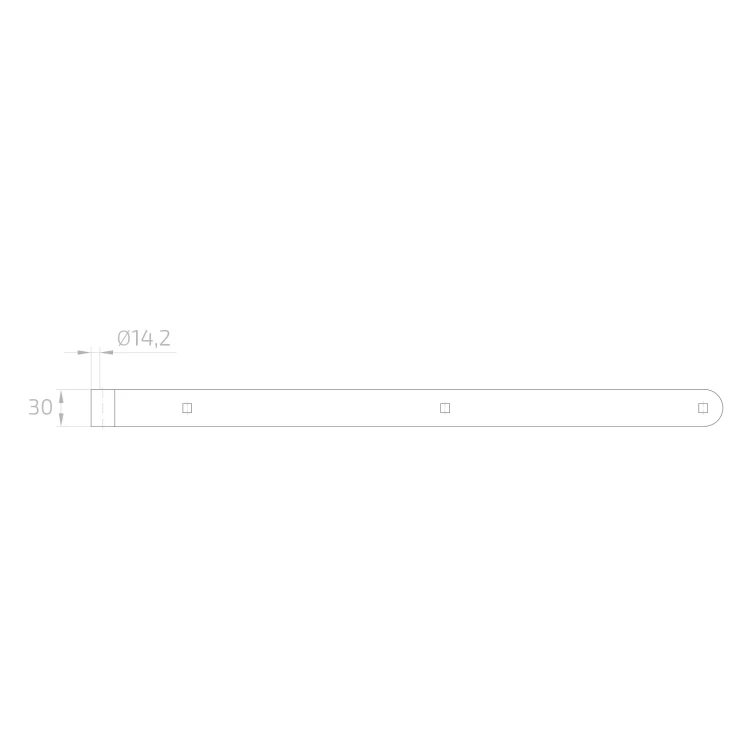

Dimensions and technical data
- Arm length (L): 600 mm
- Strap width (H): 35 mm
- Internal sleeve diameter: Ø14.2 mm
- Mounting holes: 3 pcs. (square, for carriage bolts)
- Material: steel
- Weight: 0.65 kg
- EAN: 5901431940772
Application
The strap hinge 600/35 is dedicated to swing gates, but can also be successfully used for wicket gates, farm gates and other fencing constructions. The large arm length (600 mm) ensures even load distribution on the gate leaf, which translates to stable operation and long hinge life even with heavy leaves.
