Galvanized screw-in wire holder h=12cm
Description
Screw-in Wire Holder H12 – Galvanised Steel
Screw-in wire holder H12 is a reliable component of lightning protection systems, designed for routing lightning conductors along building facades. Thanks to its screw-in construction, installation is quick and requires no specialist tools.
The holder is made of electrolytically galvanised steel, which provides the highest class of anti-corrosion protection. A special galvanising process with polymer coating sealing guarantees long-term durability even in harsh weather conditions. This is an ideal solution for installers looking for a product that combines quality with an economical price.
Application: the holder is used for routing and fixing round lightning conductors Ø8–10 mm on facades, walls and other building surfaces. The screw-in mounting bolt allows secure anchoring in the substrate, whilst two M5 clamping screws ensure stable conductor retention.
Technical specifications
- Material: electrolytically galvanised steel
- Round/flat conductor range: Ø8–10 mm
- Clamping screw: 2× M5×16
- Screw/nut material: galvanised steel

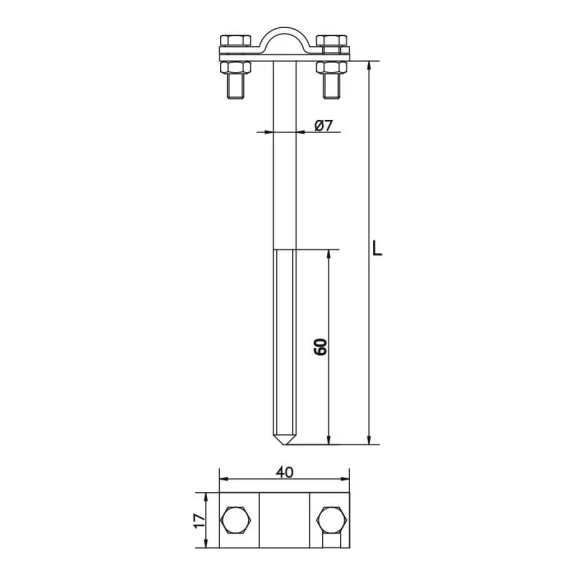

- Height (L): 120 mm
- Dedicated product: sleeve Ø12×60 mm
- GTIN: 5901832914563
Why choose this holder? The combination of a screw-in shaft with a solid clamping clamp ensures efficient installation and secure routing of the lightning conductor along the entire route. Electrolytic galvanising with polymer coating provides anti-corrosion protection exceeding standard market solutions.
