Galvanised U-bolt (pipe clamp) M6 × 18 mm, for 3/8" pipe
Leave feedback on the product

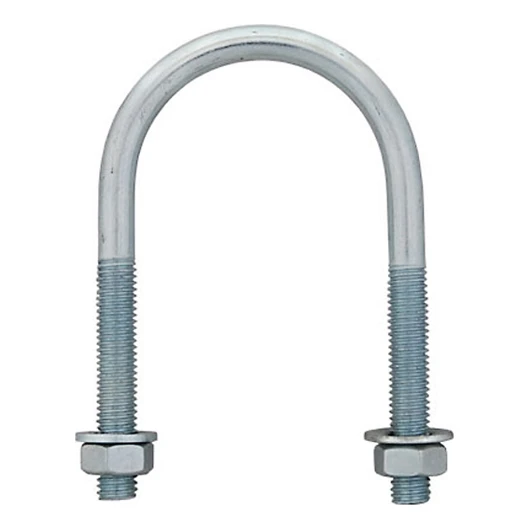

Galvanised CB U-bolt (pipe clamp), M6 × 18 mm, for 3/8" pipe. U-shaped clamp with two threaded legs, M6 thread. Galvanised coating. CB series, index CB.6.18. Weight 0.022 kg.
Product code: 002-218
Product features
[PIM] cybanty-i-obejmy-do-rur #1017
- U-bolt type round U-bolt (type B)
- Thread type M6
- Pipe size [inch] 3/8"
Description
Galvanised U-bolt (pipe clamp) M6 × 18 mm, for 3/8" pipe
The galvanised CB U-bolt M6×18 mm (3/8") is a classic U-bolt clamp designed for securing pipes with a 3/8" connection size. Thanks to its compact design and M6 thread, it is ideal wherever a secure, corrosion-resistant fixing of installation pipes is required, including in cable routes, plumbing and pneumatic installations.
Applications and design features
The CB series U-bolt is a U-shaped fixing element with two threaded legs, supplied with nuts and washers. The galvanised coating provides protection against corrosion, allowing the clamp to be used both in indoor installations and in conditions of increased humidity.
- Secure fixing of installation pipes
- Galvanised coating — corrosion protection
- Complete set with nuts and washers
Dimensional drawing
The technical drawing shows the characteristic dimensions of the U-bolt: leg spacing (A), outer width (B), overall height (H), thread length (L1), thread (M) and rod diameter (ØD). The legs have a chamfered end to make it easier to thread on the nuts.
