Galvanised U-bolt (pipe clamp) M6 × 11 mm, for 1/8" pipe
Leave feedback on the product

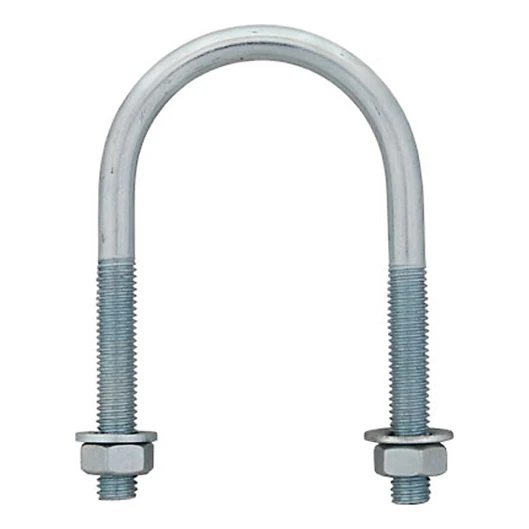

Galvanised CB U-bolt (pipe clamp), M6 thread, size M6×11 mm, for 1/8" pipe. U-shaped profile with two threaded legs and chamfered ends. Galvanised coating. Weight 0.017 kg. Manufacturer code CB.6.11.
Product code: 002-216
Product features
[PIM] cybanty-i-obejmy-do-rur #1017
- U-bolt type round U-bolt (type B)
- Thread type M6
- Pipe size [inch] 1/8"
Description
Galvanised U-bolt (pipe clamp) M6 × 11 mm, for 1/8" pipe
Galvanised CB U-bolt M6×11 mm (1/8") is a U-shaped pipe clamp designed for securing pipework with a 1/8" connection. Thanks to its compact dimensions and M6 thread, it is ideal wherever a secure, point fixing of small-diameter pipes is required, such as in hydraulic and pneumatic installations and in cable routing.
Applications and design features
The CB series U-bolt has a U-shaped profile with two threaded legs, allowing the pipe to be fixed to a supporting structure using nuts and washers. The galvanised coating provides corrosion protection in standard operating conditions.
- Securing pipes with a 1/8" connection in indoor installations
- Mounting pipework on steel structures and profiles
- Routing cables in technical installations
Dimensional drawing
The technical drawing shows the key dimensions of the U-bolt: rod diameter (ØD), leg spacing (A), overall width (B), bend height (H), thread length (L1) and thread size (M). The chamfer on the ends makes it easier to start the nuts during installation.
