Galvanically galvanized steel rebate holder
Description
Standing seam clamp – galvanically galvanised steel
Standing seam clamp is a reliable component of lightning protection systems, designed for mounting down conductors on roofs covered with standing seam metal sheets. It enables conductor routing both along and across the seam, providing complete flexibility in installation layout.
The clamp construction ensures secure and stable mounting of round or flat lightning conductors with diameter Ø8–10 mm directly onto the metal roof seam. This installation method eliminates the need for drilling holes in the roof covering, preventing leakage risks and significantly speeding up installation work.
The product is manufactured from electrolytically galvanised steel, providing the highest class of anti-corrosion protection. The special galvanising process with polymer-sealed coating guarantees long-term durability even in demanding atmospheric conditions.
Technical specifications
- Material: electrolytically galvanised steel
- Round/flat conductor range: Ø8–10 mm
- Bolt: 1×M10×40
- Bolt/nut material: galvanised steel

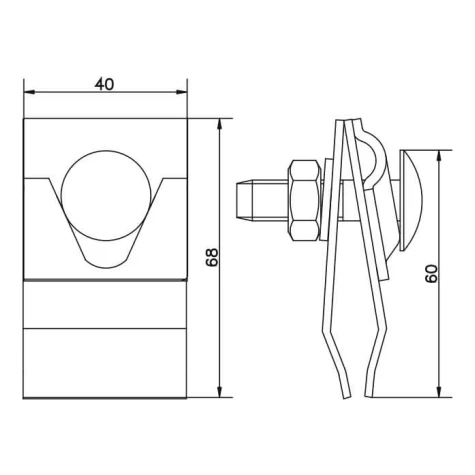

- Dimensions: 40×68 mm, depth 60 mm
- GTIN: 5901832915355
Installer benefits
- Installation without drilling: clamp fastened directly onto the seam – no interference with roof covering
- Versatility: conductor routing along and across the standing seam
- Durability: electrolytic galvanising with polymer sealing ensures long-lasting anti-corrosion protection
- Compatibility: accommodates round and flat conductors Ø8–10 mm
