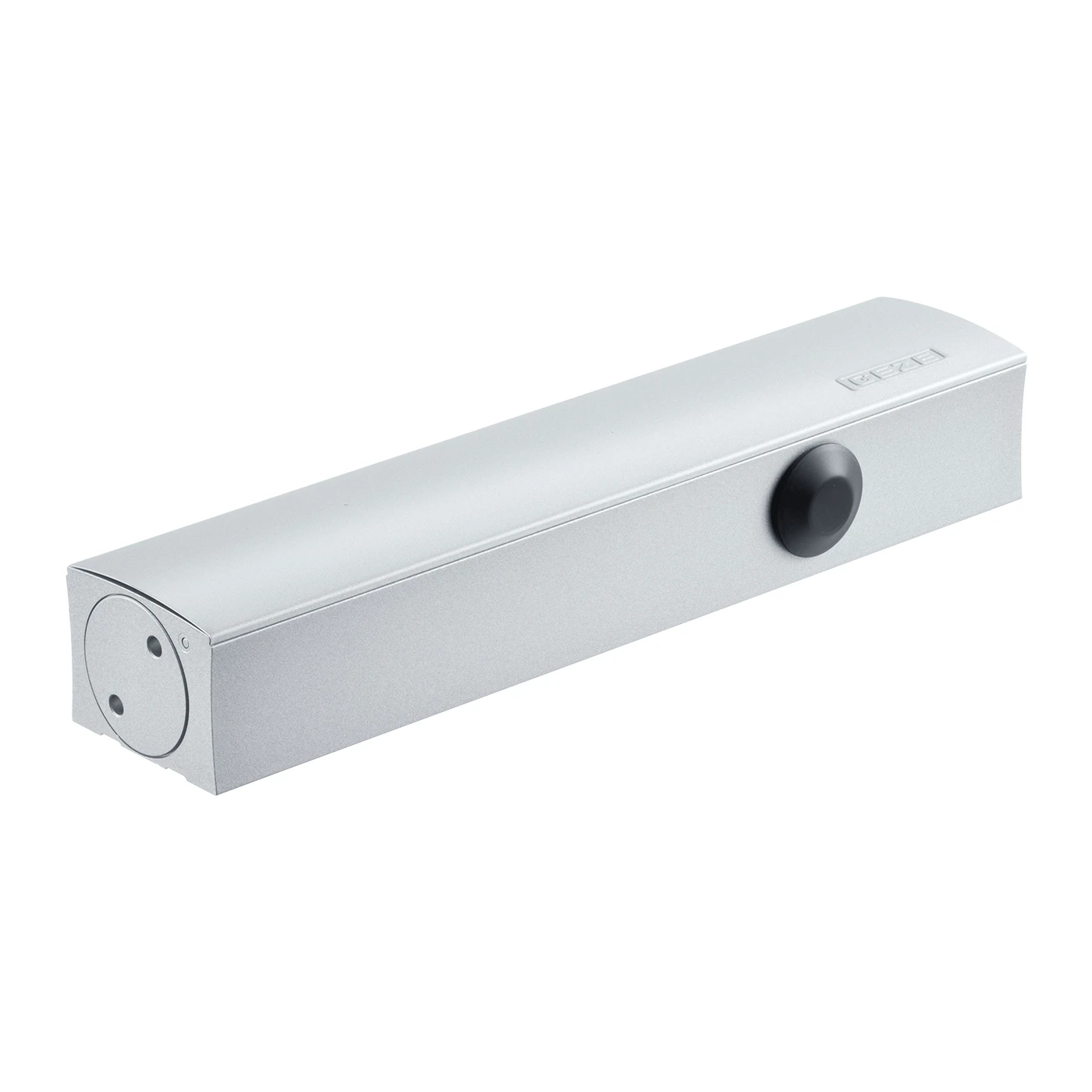

GEZE TS 4000 – hydraulic door closer without arm, silver
0
Description
GEZE TS 4000 – hydraulic door closer without arm, silver
GEZE TS 4000 is a professional hydraulic door closer from a renowned German manufacturer, designed for doors weighing up to 200 kg and leaf width up to 1400 mm. The unit is sold without an arm, allowing the installer to select the optimal mounting arm variant tailored to the specific application — standard, with slide track, or with scissor arm.
The TS 4000 model performs well wherever reliable, controlled door closing is required — in commercial buildings, public facilities, as well as industrial applications. The hydraulic damping mechanism ensures smooth and quiet closing of the leaf throughout the entire service life, while the compact body design allows for an aesthetic surface mount installation.
Key features
- Adjustable closing force — EN 1–6 size range, enabling operation on doors from light interior to heavy fire doors
- Maximum door leaf weight: 200 kg
- Maximum door leaf width: 1400 mm
- Mechanism type: hydraulic with adjustable closing speed and latching action
- Variant: without arm — mounting arm selected separately
- Installation: surface mounted on hinge side or opposite hinge side
Technical parameters
- Manufacturer: GEZE
- Model: TS 4000
- Body length (L): 346 mm
- Body height (H): 63 mm
- Net weight: 2.325 kg
- Colour: silver
- EAN: 4042938027892
Application and installation
The GEZE TS 4000 door closer is a universal solution for installation companies handling construction and renovation projects. The compact body dimensions (346 × 63 mm) and low weight (2.325 kg) make transport and installation easier. As it is sold without an arm, you can order exactly the type of arm your project requires — without overpaying for unnecessary accessories. GEZE, as a global leader in door closing systems, guarantees top-quality workmanship, availability of spare parts, and long-lasting mechanism durability.
